Telemecanique Sensors Inductive Sensor Xs5m8 L33mm Stainless Sn1.5mm 12-24Vdc Cable 2M
Awaiting product image

Telemecanique Sensors Inductive Sensor Xs5m8 L33mm Stainless Sn1.5mm 12-24Vdc Cable 2M

£47.82 Incl. VAT

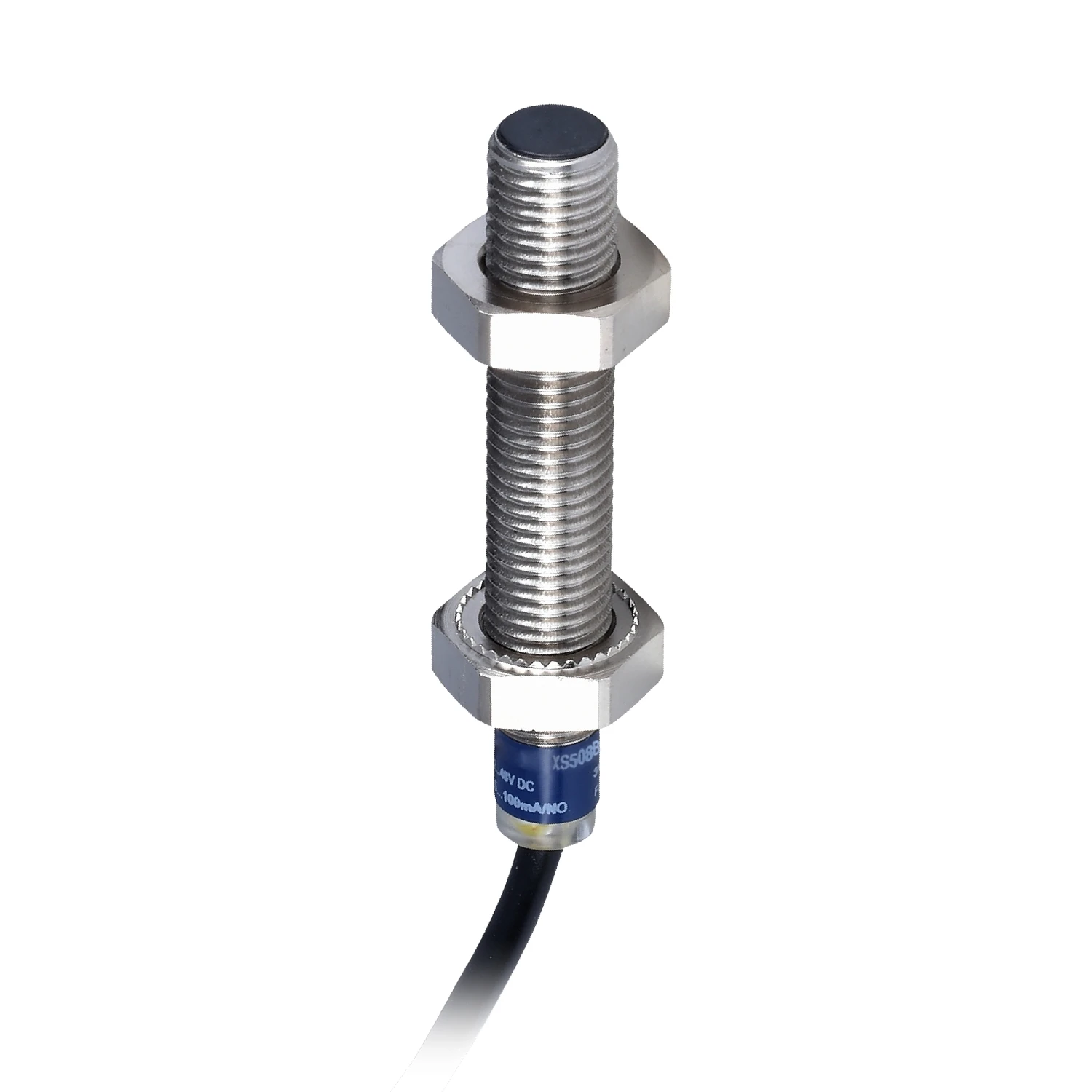

This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified. · · · This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. · · It has an annular LED for easy sensor status viewing, setup and troubleshooting. · · IP65 and IP67 protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It features double insulation for better people and system protection from electrical shocks. · · It is CCC, CSA, UL certified.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS508B1PAL2 Categories: , , , Brand: Product Code: 2500165282

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Type of interface for safety communication None Explosion safety category for dust None Interface type None Construction type housing Cylinder, screw-thread Coating housing Nickel-plated Mechanical mounting condition for sensor Concise Housing material Metal Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switching output PNP/PNP Type of switch function Normally open contact Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Switching frequency 5000 Hz Width sensor – mm Diameter sensor 8 mm Height of sensor 8 mm Max. output current at protected output 200 mA Switching distance 1.5 mm Number of protected semiconductor outputs 0 Number of contact energized outputs with signalling function 0 Number of protected contact energized outputs 0 Number of semiconductor outputs with signalling function 1 Length of sensor 33 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
