Telemecanique Sensors Inductive sensor XS8 26x26x13, PBT, Sn15mm, 12..24VDC, M12 0,15m
£89.88 Incl. VAT

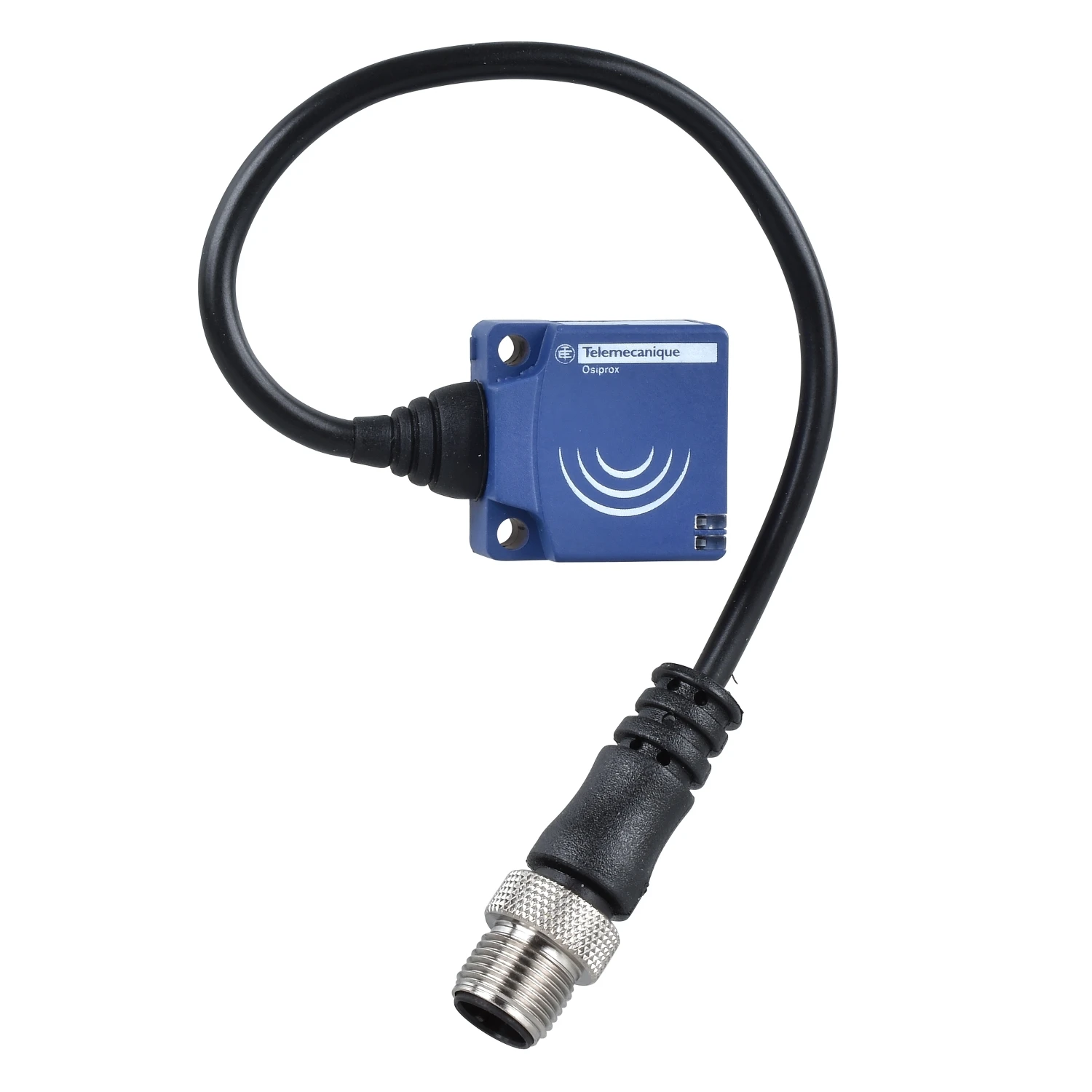

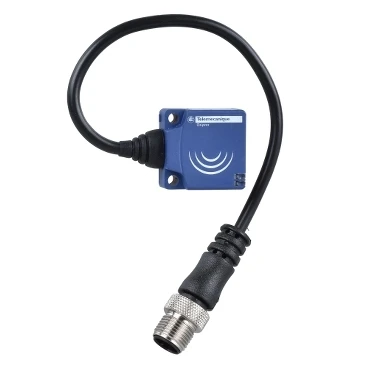

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS8 flat form 26mm x 26mm x 13mm design. It is non-flush mountable and has a frontal detection face. It supports 10mm flush mountable and 15mm non-flush mountable nominal sensing distance, 1 normally opened PNP discrete output. It is furnished with 4-pin M12 remote male connector for electrical connection. It is an inductive proximity sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of ¤10mA and a switching frequency of ¤2000Hz. It is an IP67 rated product. The enclosure is made of PBT. Its dimensions are 26mm (Width) x 13mm (Depth) x 26mm (Height) and weighs 0.04kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by Ecolab, CSA, CE and UL. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm. · · · This product is part of the XS range, an offer of inductive proximity sensors. · · This general purpose inductive proximity sensor in XS8 flat form 26mm x 26mm x 13mm design. It is non-flush mountable and has a frontal detection face. · · It supports 10mm flush mountable and 15mm non-flush mountable nominal sensing distance, 1 normally opened PNP discrete output. · · It is furnished with 4-pin M12 remote male connector for electrical connection.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Housing material Plastic Type of electric connection Connector M12 Construction type housing Cuboid Mechanical mounting condition for sensor Not flat Interference resistance to magnetic fields Immune against magnetic DC-field Type of switching output PNP/PNP Type of switch function Normally open contact Voltage type AC/DC Type of actuation Metallic Target Number of semiconductor outputs with signalling function 1 Number of protected contact energized outputs 0 Switching distance 10 mm Width sensor 26 mm Length of sensor 13 mm Height of sensor 26 mm Number of protected semiconductor outputs 1 Max. output current at protected output 100 mA Switching frequency 2000 Hz Diameter sensor – mm Number of contact energized outputs with signalling function 0 Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V Compression-resistant No Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188160
