Telemecanique Sensors Inductive Sensor Xs8 40X40X15 Pbt Sn25mm 24-240V AC/DC 1/2'' 0.15M
Telemecanique Sensors Inductive Sensor Xs8 40X40X15 Pbt Sn25mm 24-240V AC/DC 1/2'' 0.15M

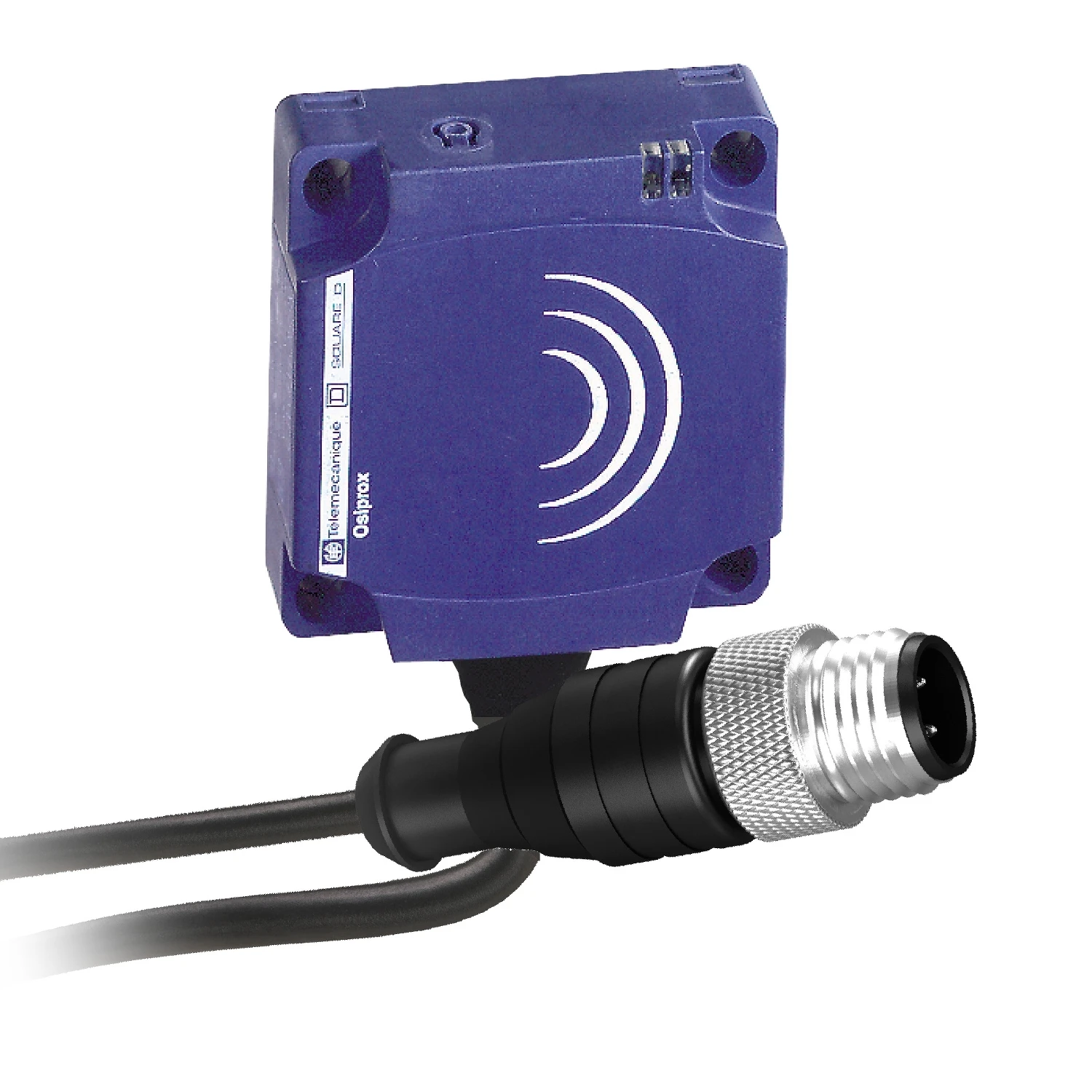

Telemecanique Sensors Inductive Sensor Xs8 40X40X15 Pbt Sn25mm 24-240V AC/DC 1/2'' 0.15M - Image 2
Telemecanique Sensors Inductive Sensor Xs8 40X40X15 Pbt Sn25mm 24-240V AC/DC 1/2'' 0.15M - Image 3

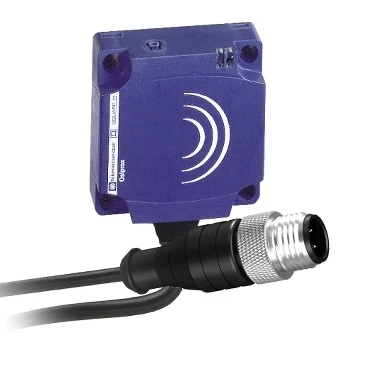

Telemecanique Sensors Inductive Sensor Xs8 40X40X15 Pbt Sn25mm 24-240V AC/DC 1/2'' 0.15M - Image 4

Telemecanique Sensors Inductive Sensor Xs8 40X40X15 Pbt Sn25mm 24-240V AC/DC 1/2” 0.15M

£138.25 Incl. VAT

This XS flat (40 x 40 x 15 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified. · · · This XS flat (40 x 40 x 15 mm) inductive proximity sensor has a PBT case. · · It has a supply voltage of 24V to 240V AC/DC. · · This general purpose flat inductive proximity sensor has an increased range. · · It is mountable directly on a surface, thanks to 4 screws fixing points. · · It provides mechanical resistance and chemical withstand thanks to PBT case. · · Depth: 15mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS8C1A1MAL01U20 Categories: , , Brand: Product Code: 2500210466

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Interface type None Explosion safety category for dust None Type of interface for safety communication None Explosion safety category for gas None Housing material Plastic Construction type housing Special construction Type of switching output 2-wire Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Mechanical mounting condition for sensor Not flat Type of switch function Normally open contact Voltage type AC/DC Type of actuation Metallic Target Switching frequency 1000 Hz Diameter sensor – mm Number of semiconductor outputs with signalling function 0 Number of contact energized outputs with signalling function 0 Switching distance 25 mm Length of sensor 15 mm Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Height of sensor 40 mm Width sensor 40 mm Max. output current at protected output 200 mA Rated control supply voltage at DC – V Supply voltage 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Suitable for safety functions No With monitoring function downstream switching devices No Compression-resistant No Cascadable No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188160
