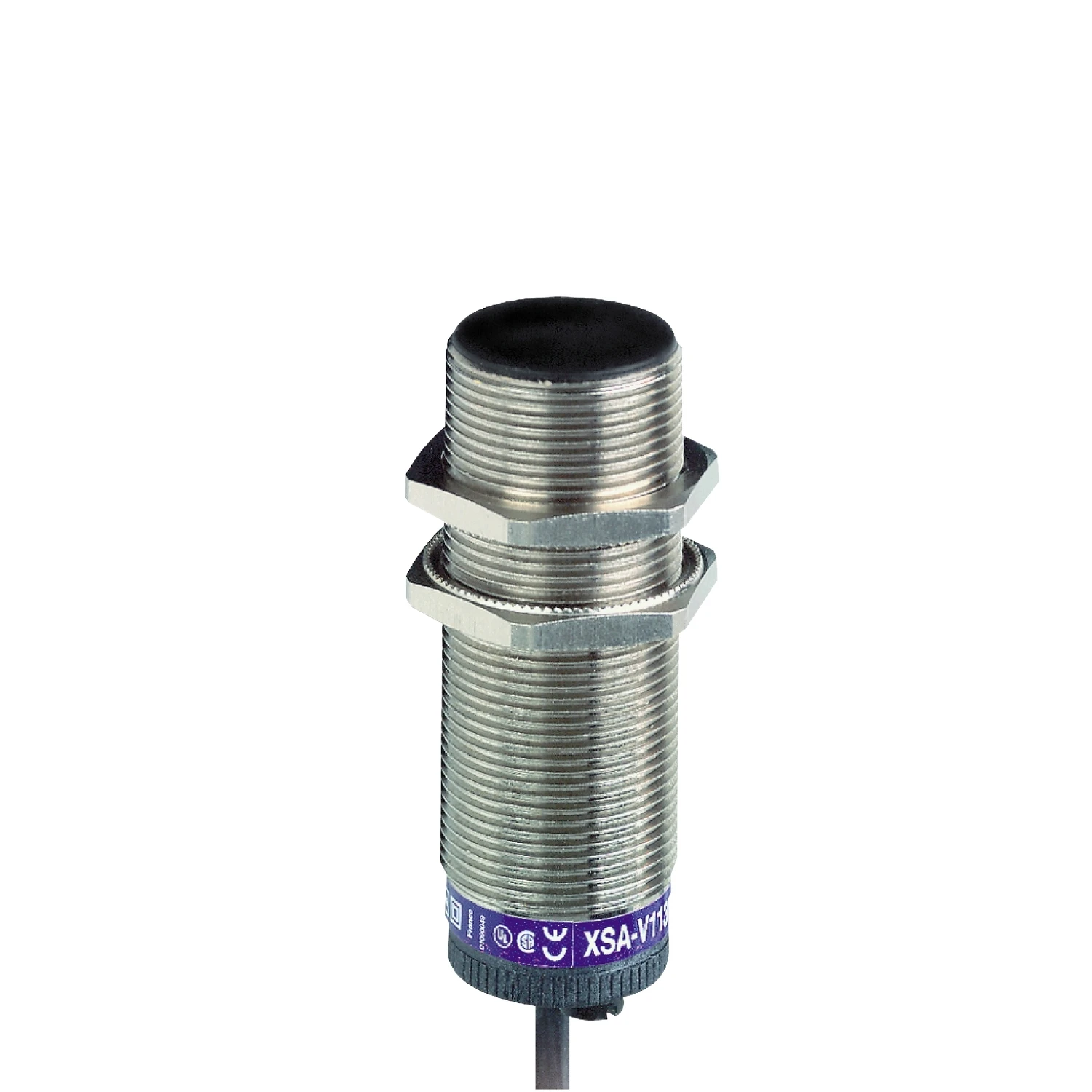

Telemecanique Sensors Inductive Sensor Xsavm30 Sn10mm 120-3000C/Mn 12-48Vdc Cable 2M
£159.32 Incl. VAT
This sensor provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading. Dedicated to rotation monitoring, it is suitable for conveyor belts, bucket elevators and Archemedian screws. And also for grinders, crushers, pumps, centrifugal driers, mixers, etc. This product is a cylindrical, flush mountable metal sensor, diameter 30mm, threaded M30 x 1.5. It features a cylindrical metal case and a 2m long cable. It has a sensing distance of 10mm. Its adjustable frequency range is 120 impluses/min to 3000 impluses/min. Three-wire, DC supply, 12V to 48V, NC function, PNP solid-state output. · · · This sensor provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading. · · Dedicated to rotation monitoring, it is suitable for conveyor belts, bucket elevators and Archemedian screws. · · And also for grinders, crushers, pumps, centrifugal driers, mixers, etc. · · This product is a cylindrical, flush mountable metal sensor, diameter 30mm, threaded M30 x 1.5. · · It features a cylindrical metal case and a 2m long cable. It has a sensing distance of 10mm. · · Its adjustable frequency range is 120 impluses/min to 3000 impluses/min. · · Three-wire, DC supply, 12V to 48V, NC function, PNP solid-state output.
Description
Technical Specifications Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Explosion safety category for gas None Interface type None Type of interface for safety communication None Explosion safety category for dust None Coating housing Nickel-plated Construction type housing Cylinder, screw-thread Type of switch function Breaker contact Mechanical mounting condition for sensor Concise Housing material Metal Type of switching output PNP/PNP Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Switching frequency 800 Hz Width sensor – mm Number of contact energized outputs with signalling function 0 Height of sensor – mm Number of semiconductor outputs with signalling function 1 Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Diameter sensor 30 mm Length of sensor 81 mm Max. output current at protected output 200 mA Switching distance 10 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188047
