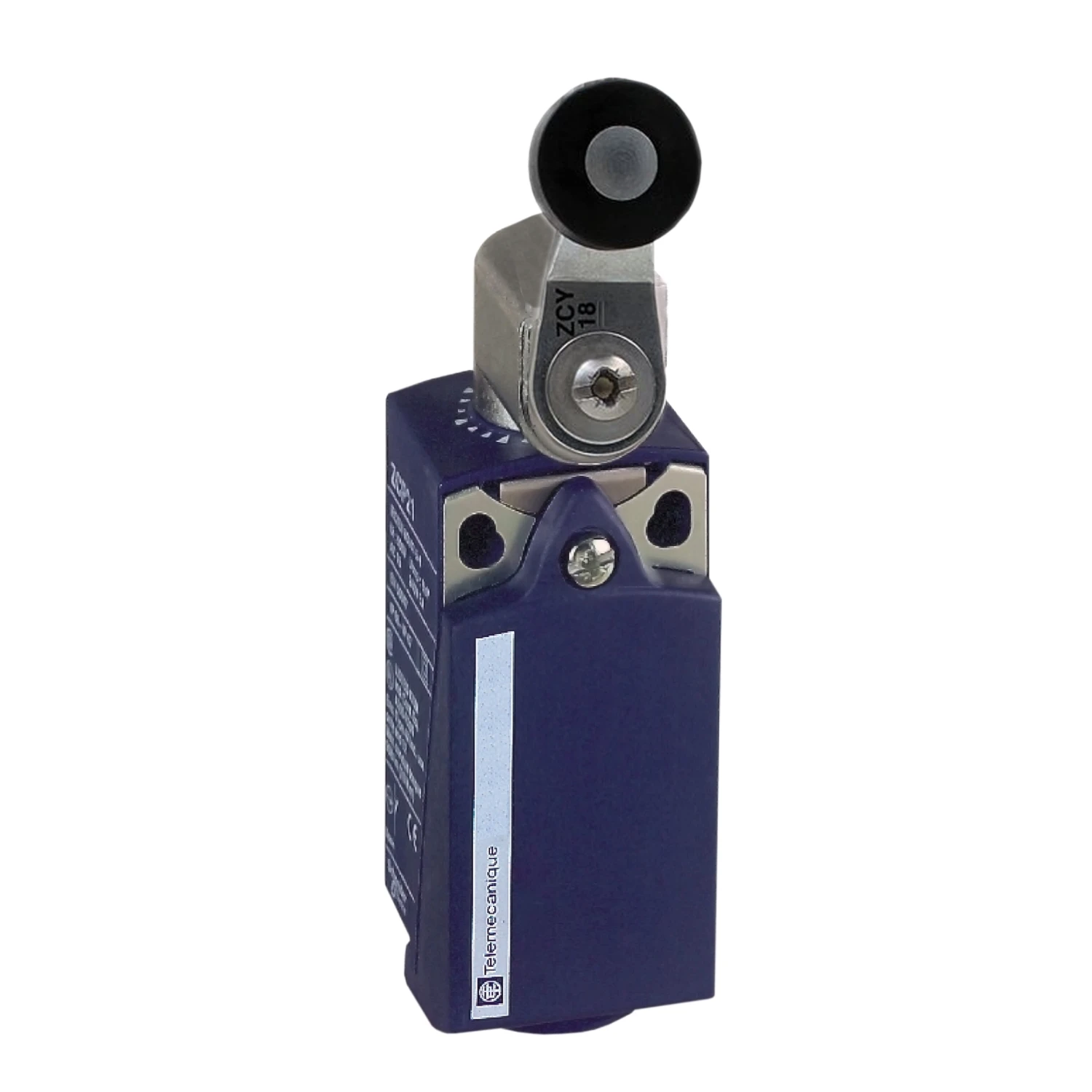

Telemecanique Sensors Limit Switch 2P Nc+NO Snap Action M16 x 1.5 Roller Lever
Telemecanique Sensors Limit Switch 2P Nc+NO Snap Action M16 x 1.5 Roller Lever
Telemecanique Sensors Limit Switch 2P Nc+NO Snap Action M16 x 1.5 Roller Lever - Image 2
Telemecanique Sensors Limit Switch 2P Nc+NO Snap Action M16 x 1.5 Roller Lever - Image 3
Telemecanique Sensors Limit Switch 2P Nc+NO Snap Action M16 x 1.5 Roller Lever - Image 4

Telemecanique Sensors Limit Switch 2P Nc+NO Snap Action M16 x 1.5 Roller Lever

£28.40 Incl. VAT

This XCKP compact format (CENELEC EN 50047) limit switch has a thermoplastic roller lever with track 20/36mm and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · This XCKP compact format (CENELEC EN 50047) limit switch has a thermoplastic roller lever with track 20/36mm and a plastic body. · · This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. · · It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. · · It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. · · It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. · · Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. · · Variable composition design allows late modifications on the switch, for example change of connection type or head. · · Minimum torque for tripping: 0.1Nm · · Ambient temperature: -25 to 70°C · · IP66/67/IK04 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCKP2118P16 Categories: , , , Brand: Product Code: 2500166873

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Interface type None Explosion safety category for dust None Type of interface for safety communication None Degree of protection (IP rating) IP66/IP67 Switching function Quick-break switch Construction type housing Cuboid Housing material Plastic Type of control element Roller lever Type of electric connection Cable entry metrical Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 125 V – A Number of contacts as change-over contact 0 Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at DC-13, 24 V – A Height of sensor 65 mm Rated operation current Ie at DC-13, 230 V 0.27 A Diameter sensor – mm Length of sensor 30 mm Width sensor 31 mm Rated operation current Ie at AC-15, 125 V – A Number of contacts as normally open contact 1 Number of contacts as normally closed contact 1 Ambient temperature during operating -25 – 70 °C Suitable for safety functions No Switching function latching No With status indication No Output electronic No Forced opening Yes · Technical Data Sheet – Click to Download
