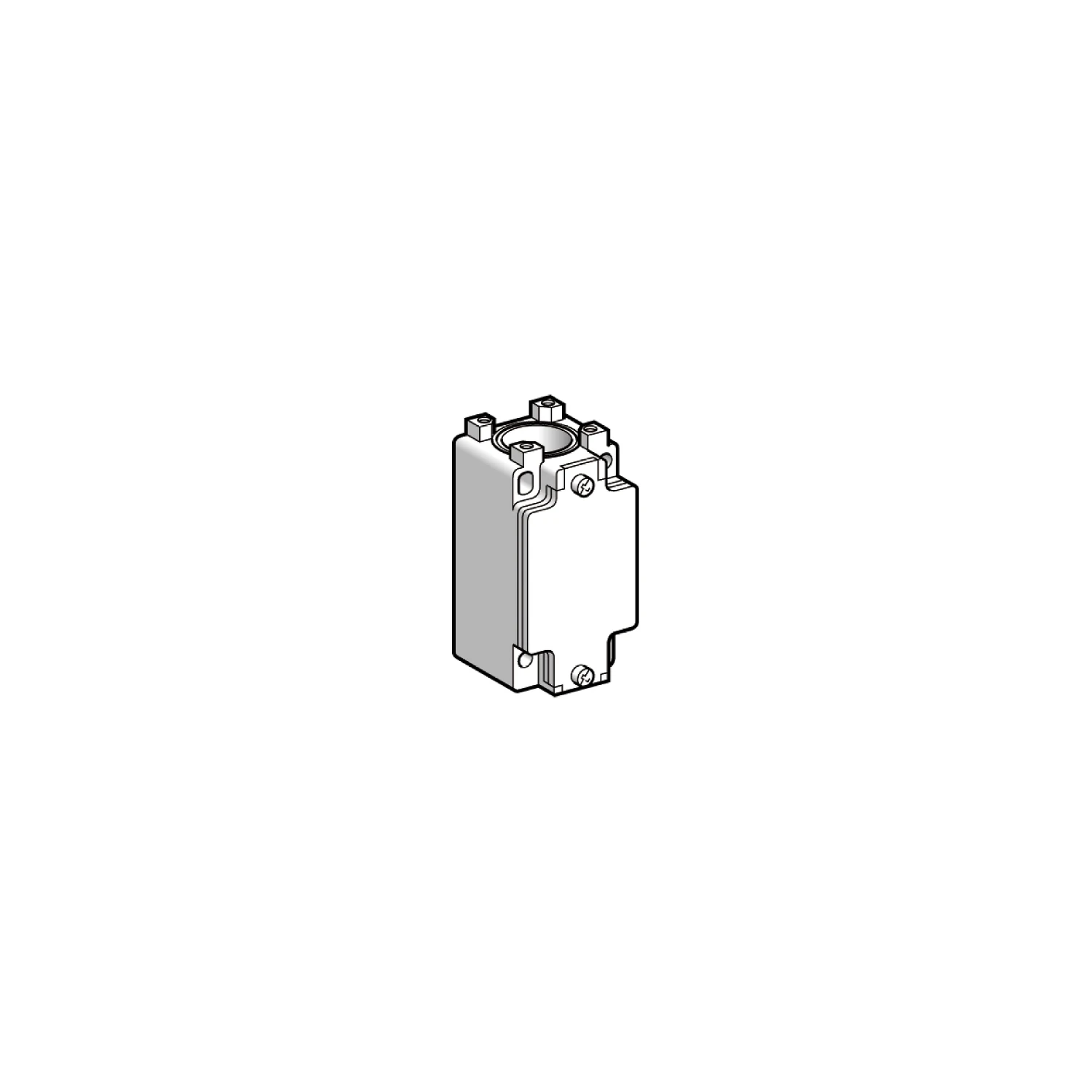

Telemecanique Sensors Limit Switch Body Zckj Fixed Without Display 2C/O Snap Action M20
Telemecanique Sensors Limit Switch Body Zckj Fixed Without Display 2C/O Snap Action M20
Telemecanique Sensors Limit Switch Body Zckj Fixed Without Display 2C/O Snap Action M20 - Image 2
Telemecanique Sensors Limit Switch Body Zckj Fixed Without Display 2C/O Snap Action M20 - Image 3
Telemecanique Sensors Limit Switch Body Zckj Fixed Without Display 2C/O Snap Action M20 - Image 4

Telemecanique Sensors Limit Switch Body Zckj Fixed Without Display 2C/O Snap Action M20

£66.16 Incl. VAT

Limit switch body ZCKJ, fixed, w/o display, 2C/O, snap action, M20. range of product: OsiSense XC – series name: standard format – product or component type: limit switch body – device short name: ZCKJ – body type: fixed – product compatibility: XCKJ – associated head: ZCKE05, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE66, ZCKE67 – contacts type and composition: 2 C/O – contacts material: silver plated contacts. · · · Height: 77mm · · Width: 40mm · · Weight: 0.31kg · · Depth: 44mm · · Normal State Configuration: 2 C/O

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCKJ4H29 Categories: , Brand: Product Code: 2500154900

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Type of interface for safety communication None Explosion safety category for dust None Type of control element None Interface type None Switching function Quick-break switch Housing material Metal Construction type housing Cuboid Degree of protection (IP rating) IP65 Type of electric connection Cable entry metrical Rated operation current Ie at AC-15, 125 V 0 A Number of contacts as change-over contact 2 Rated operation current Ie at DC-13, 24 V 0 A Rated operation current Ie at DC-13, 125 V 0 A Number of safety auxiliary contacts 0 Number of contacts as normally open contact 0 Number of contacts as normally closed contact 0 Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at AC-15, 24 V 0 A Height of sensor 77 mm Rated operation current Ie at DC-13, 230 V 0.27 A Diameter sensor 0 mm Width sensor 40 mm Length of sensor 44 mm Ambient temperature during operating -25 – 70 °C Suitable for safety functions No With status indication No Switching function latching No Output electronic No Forced opening No · Technical Data Sheet – Click to Download
