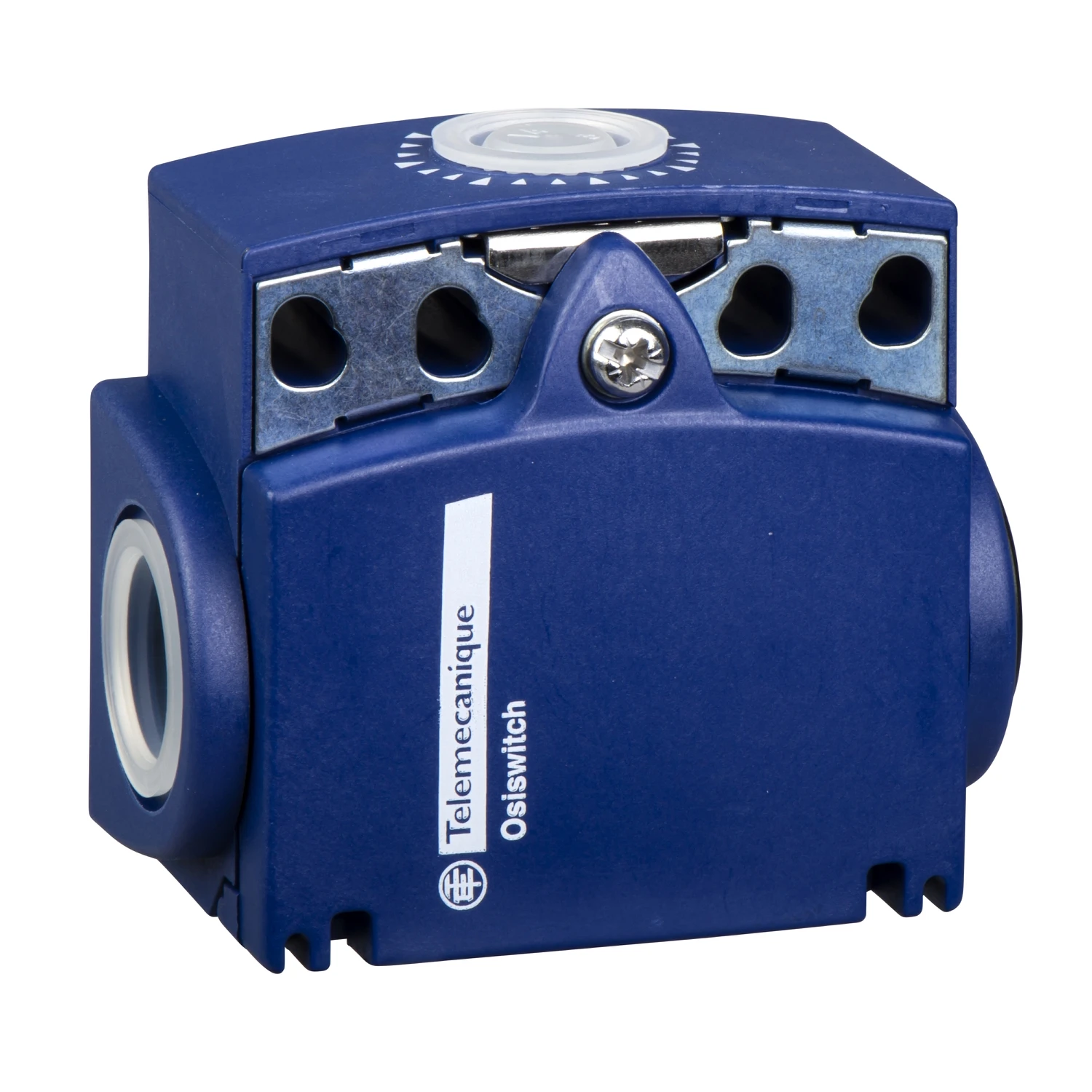

Telemecanique Sensors Limit Switch Body Zct Compact 1NC+1NO Snap Action m16
Telemecanique Sensors Limit Switch Body Zct Compact 1NC+1NO Snap Action m16
Telemecanique Sensors Limit Switch Body Zct Compact 1NC+1NO Snap Action m16 - Image 2
Telemecanique Sensors Limit Switch Body Zct Compact 1NC+1NO Snap Action m16 - Image 3
Telemecanique Sensors Limit Switch Body Zct Compact 1NC+1NO Snap Action m16 - Image 4

Telemecanique Sensors Limit Switch Body Zct Compact 1NC+1NO Snap Action m16

£20.15 Incl. VAT

Limit switch body ZCT, compact, 1NC+1NO, snap action, M16. range of product: OsiSense XC – series name: Standard compact – product or component type: limit switch body – device short name: ZCT – design: compact – body type: fixed – associated head: ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 – contacts type and composition: 1 NC + 1 NO. · · · This ZCT body/contact assembly with connector has standard contacts and a plastic body. · · It has 1 x NO + 1 x NC snap action contacts and a M16 cable entry. · · It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges. · · Depth: 30mm · · Normal State Configuration: 1 Nc + 1 No

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCT21P16 Categories: , Brand: Product Code: 2500137060

Description

Technical Specifications  Technical Specifications End switch Type of control element None Type of interface for safety communication None Interface type None Degree of protection (IP rating) IP66/IP67 Explosion safety category for dust None Housing material Plastic Explosion safety category for gas None Construction type housing Cuboid Switching function Quick-break switch Number of contacts as change-over contact 0 Type of electric connection Cable entry metrical Number of contacts as normally closed contact 1 Rated operation current Ie at AC-15, 230 V 1.5 A Rated operation current Ie at DC-13, 230 V 0.1 A Rated operation current Ie at AC-15, 24 V 0 A Rated operation current Ie at AC-15, 125 V 0 A Rated operation current Ie at DC-13, 24 V 0 A Rated operation current Ie at DC-13, 125 V 0 A Number of safety auxiliary contacts 0 Height of sensor 51 mm Width sensor 58 mm Diameter sensor 0 mm Length of sensor 30 mm Number of contacts as normally open contact 1 Ambient temperature during operating -25 – 70 °C Suitable for safety functions No With status indication No Output electronic No Forced opening Yes Switching function latching No · Technical Data Sheet – Click to Download
