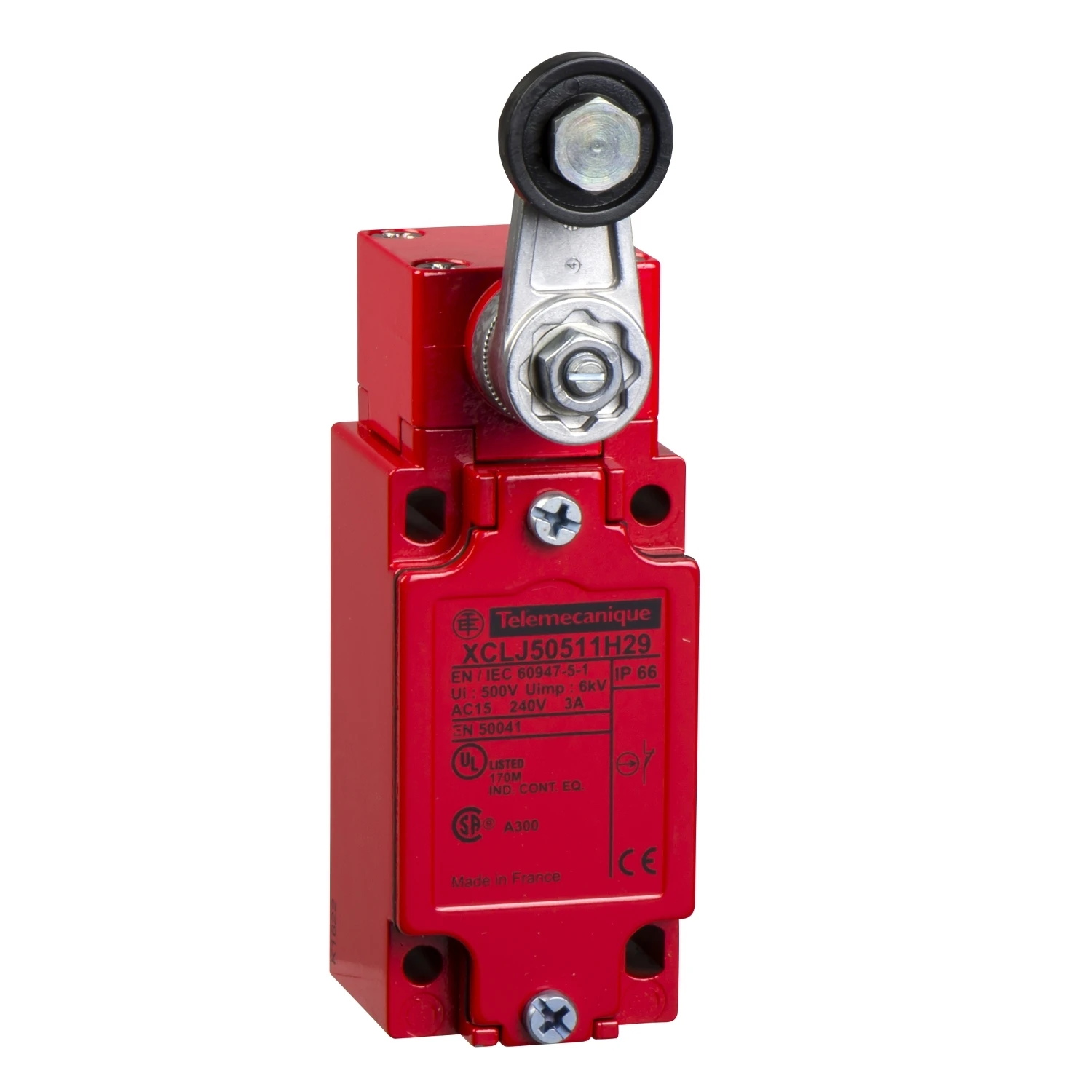

Telemecanique Sensors Limit switch XCLJ, red body steel, plastic roller lever- NC / NC slow

Description

Technical Specifications  Technical Specifications End switch Interface type None Type of interface for safety communication None Explosion safety category for dust None Degree of protection (IP rating) IP66/IP67 Explosion safety category for gas None Housing material Metal Type of control element Roller lever Switching function Slow-action switch and quick-break switch Number of contacts as change-over contact 0 Number of safety auxiliary contacts 0 Height of sensor 77 mm Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at DC-13, 230 V 0.27 A Diameter sensor – mm Width sensor 40 mm Length of sensor 44 mm Number of contacts as normally open contact 1 Number of contacts as normally closed contact 1 Ambient temperature during operating -25 – 70 °C With status indication No Suitable for safety functions No Switching function latching No Output electronic No Forced opening Yes · Technical Data Sheet – Click to Download
