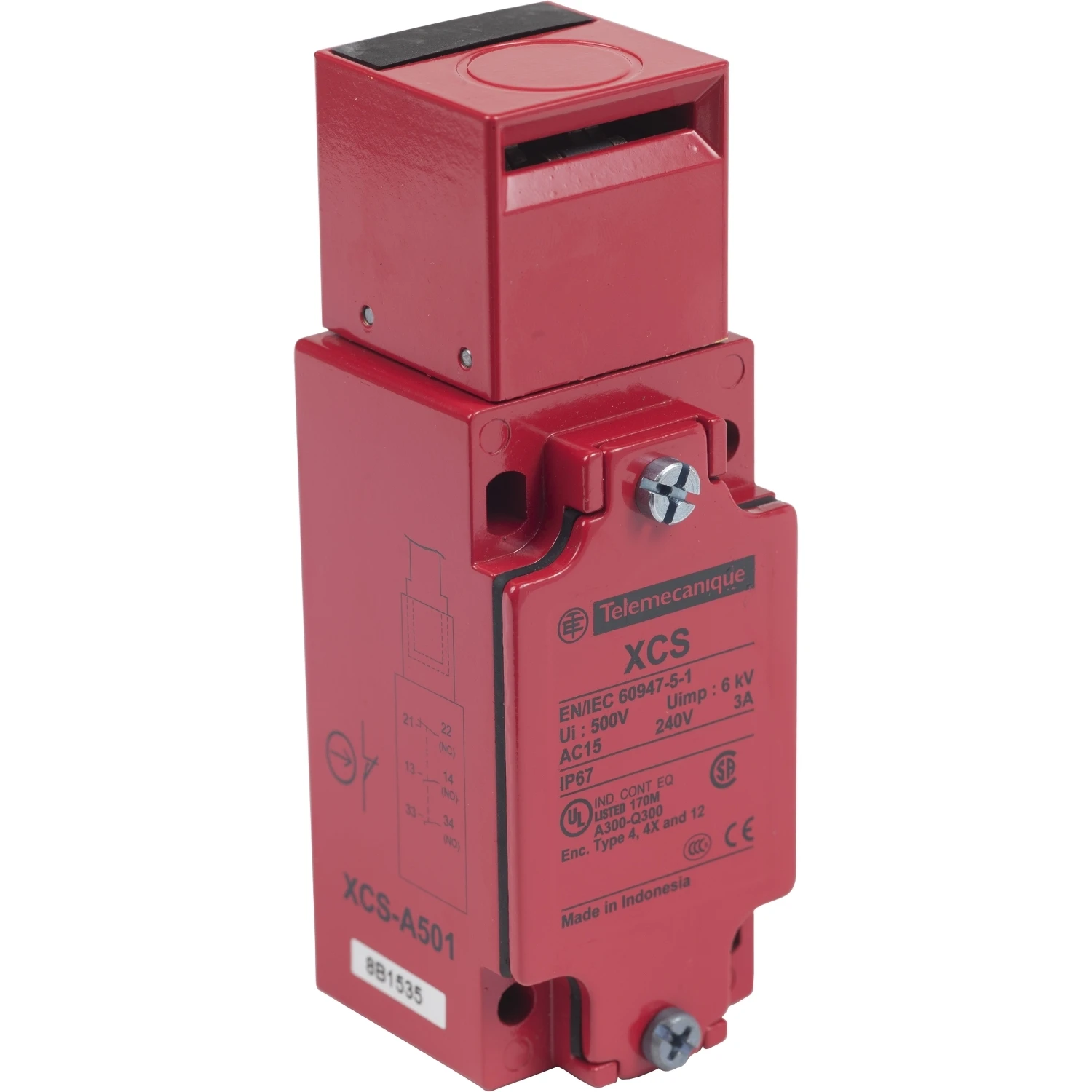

Telemecanique Sensors Metal Safety Switch Xcsa 1 NC + 2 NO Slow Break 1 Entry Tapped Pg 13
Awaiting product image

Telemecanique Sensors Metal Safety Switch Xcsa 1 NC + 2 NO Slow Break 1 Entry Tapped Pg 13

£104.90 Incl. VAT

This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing flexible installation. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a -door-open machine stop- control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators. · · · This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. · · This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing flexible installation. · · Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. · · When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. · · It simply ensures a “door-open machine stop” control on your machine, with maximal reliability.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSA501 Categories: , , , Brand: Product Code: 2500154213

Description

Technical Specifications  Technical Specifications Position switch with separate actuator Explosion safety category for gas None Interface type None Type of interface for safety communication None Type of switching contact Slow-action switch Explosion safety category for dust None Type of electric connection Cable entry PG Housing material Metal Width sensor 40 mm Degree of protection (IP rating) IP67K Number of safety auxiliary contacts 0 Height of sensor 114 mm Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at AC-15, 230 V 3 A Length of sensor 44 mm Rated operation current Ie at AC-15, 24 V – A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Rated operation current Ie at DC-13, 125 V 0.55 A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at AC-15, 125 V 6 A Number of contacts as normally open contact 2 Ambient temperature during operating -25 – 70 °C With status indication No Suitable for safety functions Yes Forced opening Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188085
