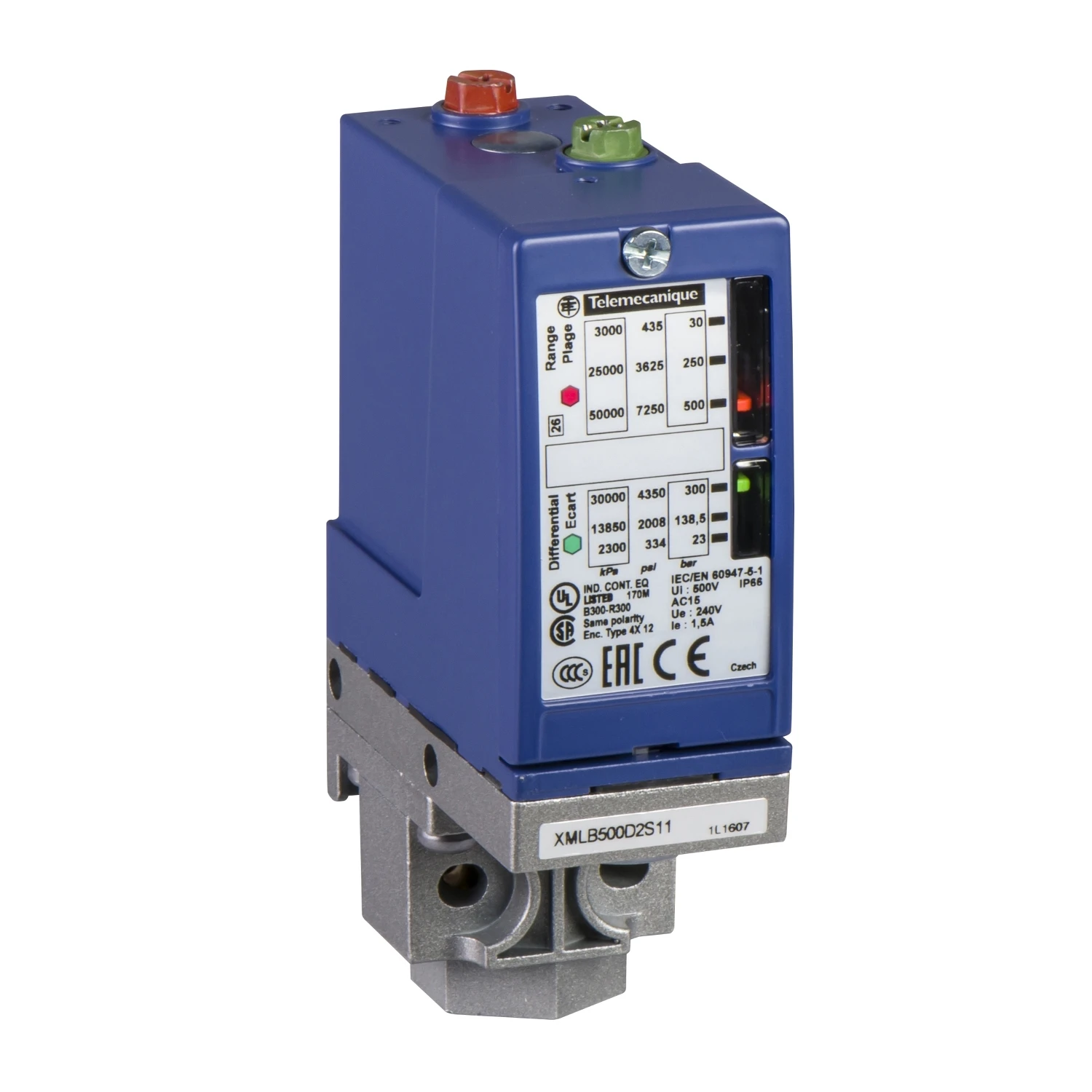

Telemecanique Sensors OsiSense XC 300 Bar Adjust Scale 2 Thresholds Electromechanical Pressure Sensor 1C/O
£223.88 Incl. VAT
This XMLB electromechanical pressure switch has an adjustable differential for regulation of 2 thresholds and a zinc alloy body with a range scale window. This pressure switch is designed for regulation of pressure between 2 thresholds for hydraulic oils at temperatures up to 160°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 3 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 300bar, this makes it ideal for hydraulic presses, water jet cutting machines. · · · This XMLB electromechanical pressure switch has an adjustable differential for regulation of 2 thresholds and a zinc alloy body with a range scale window. · · This pressure switch is designed for regulation of pressure between 2 thresholds for hydraulic oils at temperatures up to 160°C. · · It is fixed directly on tubage. · · It provides zinc alloy enclosure for robust performance. · · 3 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. · · Destruction pressure: 1350 Bar (19580.1psi) · · 4 Terminal block type · · Mechanical durability: 3000000 cycles · · Ambient temperature: -25 to 70°C · · IP66 Degree of protection
Description
Technical Specifications Technical Specifications Pressure switch Degree of protection (IP rating) IP66 Type of electric connection Screw connection Width 35 mm Depth 75 mm Number of auxiliary contacts as normally open contact 0 Height 113 mm Number of auxiliary contacts as change-over contact 1 Number of auxiliary contacts as normally closed contact 0 Rated operation current Ie at AC-1, 400 V – A Rated operation current Ie at AC-3, 400 V – A Number of normally closed contacts as main contact 0 Bursting pressure 1350 bar Number of main contacts as normally open contact 0 Initial value measuring range pressure – Pa End value measuring range pressure – Pa Switching capacity at AC-3, 240 V – kA Rated operation power at AC-3, 400 V – kW Diameter – mm Max. operating pressure 300000 hPa Pressure-switching differential 163 bar Max. test pressure 675 bar Engaging pressure 22 – 300 bar Initial setting 22000 – 300000 hPa Rated voltage Ue at AC 50 Hz 120 – 240 V Rated voltage Ue at AC 60 Hz 120 – 240 V Switch off pressure 2.6 – 263 bar Rated voltage Ue at DC 250 – 250 V End setting 2600 – 263000 hPa Adjustable current range – A Medium temperature 0 – 160 °C Explosion-proof No Suitable as 2-point controller Yes With manual on/off switch No With hand operation No Electronic version No Suitable as guard Yes Display No Suitable as limiter Yes · Technical Data Sheet – Click to Download
