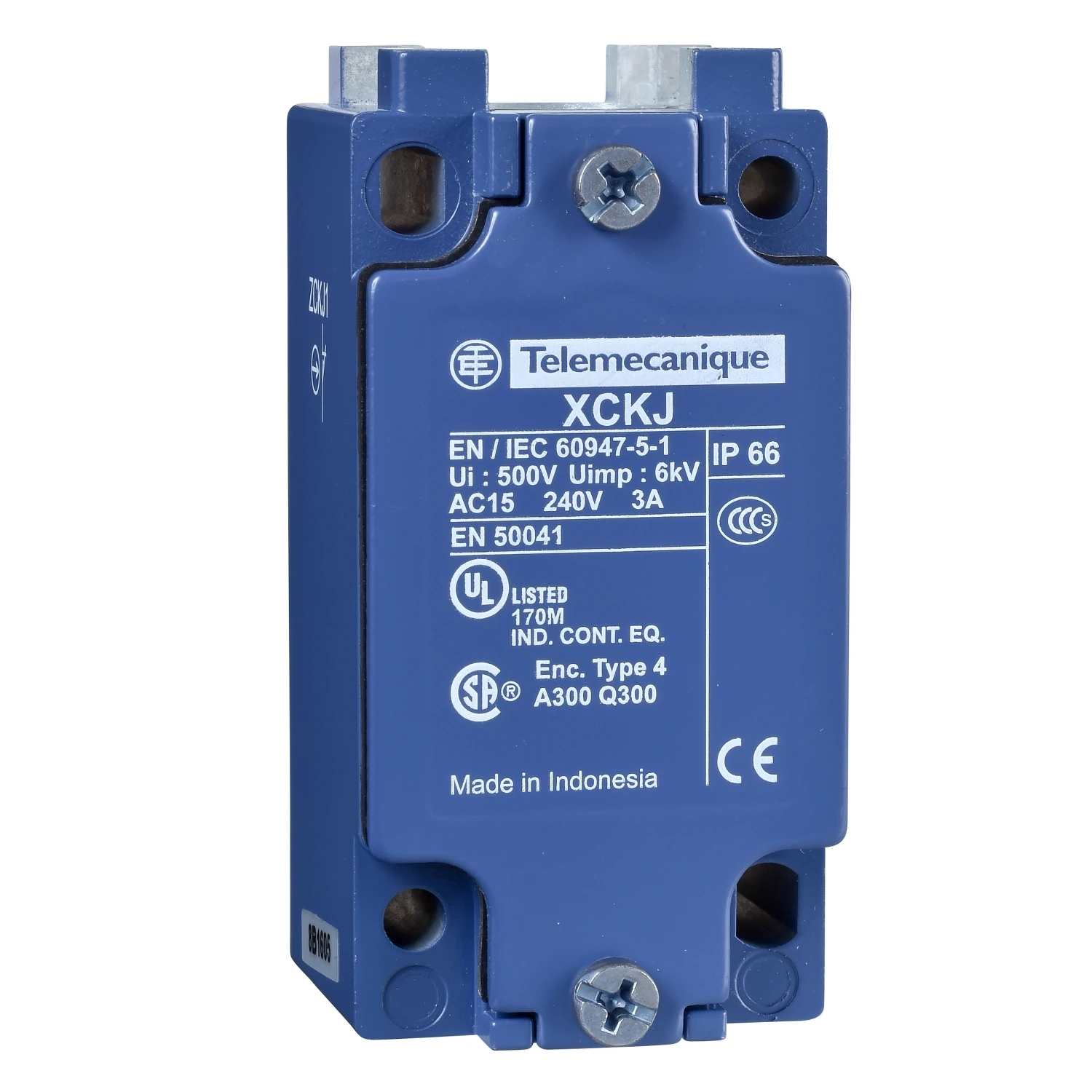

Telemecanique Sensors OsiSense XC Industrial Range Fixed Limit Switch Body 1NC + 1NO Slow Break M20 Metal
Telemecanique Sensors OsiSense XC Industrial Range Fixed Limit Switch Body 1NC + 1NO Slow Break M20 Metal
Telemecanique Sensors OsiSense XC Industrial Range Fixed Limit Switch Body 1NC + 1NO Slow Break M20 Metal - Image 2
Telemecanique Sensors OsiSense XC Industrial Range Fixed Limit Switch Body 1NC + 1NO Slow Break M20 Metal - Image 3
Telemecanique Sensors OsiSense XC Industrial Range Fixed Limit Switch Body 1NC + 1NO Slow Break M20 Metal - Image 4

Telemecanique Sensors OsiSense XC Industrial Range Fixed Limit Switch Body 1NC + 1NO Slow Break M20 Metal

£43.43 Incl. VAT

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a M20 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · · This ZCK body/contact assembly with connector has a fixed body and a Zamak body. · · It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a M20 cable entry. · · It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · Electrical durability: 5000000 cycles · · Conventional enclosed thermal current: 10 A · · Operational current rate: 3A at 240V · · Positive opening · · Without local display · · Ambient temperature: -25 to 70°C · · IP66/IK07 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCKJ5H29 Categories: , Brand: Product Code: 2500024135

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Interface type None Type of control element None Type of interface for safety communication None Explosion safety category for dust None Switching function Slow-action switch Construction type housing Cuboid Housing material Metal Degree of protection (IP rating) IP65 Type of electric connection Cable entry metrical Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at AC-15, 230 V 3 A Width sensor 40 mm Diameter sensor 0 mm Length of sensor 44 mm Height of sensor 77 mm Rated operation current Ie at AC-15, 24 V 0 A Rated operation current Ie at AC-15, 125 V 0 A Rated operation current Ie at DC-13, 24 V 0 A Rated operation current Ie at DC-13, 125 V 0 A Number of safety auxiliary contacts 0 Number of contacts as normally open contact 1 Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Ambient temperature during operating -25 – 70 °C With status indication No Switching function latching No Output electronic No Forced opening Yes Suitable for safety functions No · Technical Data Sheet – Click to Download
