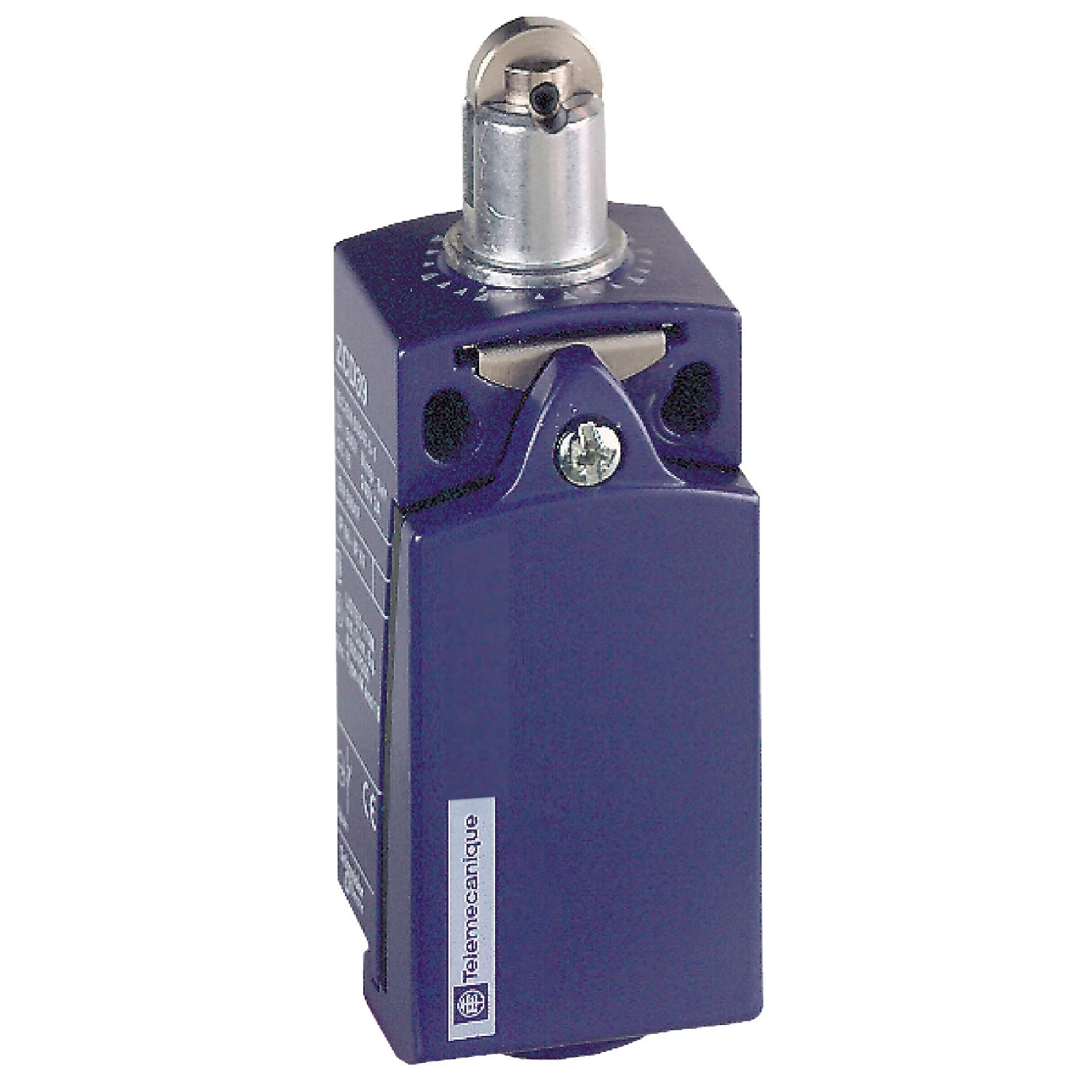

Telemecanique Sensors OsiSense XCKD Snap Action Limit Switch Plunger 1NC+1NO M16
£38.81 Incl. VAT
This XCKD compact format (CENELEC EN 50047) limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards and is also RoHS compliant. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · This XCKD compact format (CENELEC EN 50047) limit switch has a steel roller plunger and a Zamak body. · · This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. · · It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. · · It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. · · It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards and is also RoHS compliant.
Description
Technical Specifications Technical Specifications End switch Explosion safety category for dust None Type of interface for safety communication None Interface type None Degree of protection (IP rating) IP66/IP67 Explosion safety category for gas None Type of control element Roller cam Switching function Quick-break switch Construction type housing Cuboid Housing material Metal Alignment of the control element Roller cam straight Type of electric connection Cable entry metrical Rated operation current Ie at AC-15, 125 V – A Number of contacts as normally open contact 1 Rated operation current Ie at DC-13, 125 V – A Number of safety auxiliary contacts 0 Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at DC-13, 24 V – A Height of sensor 65 mm Length of sensor 30 mm Width sensor 31 mm Rated operation current Ie at DC-13, 230 V 0.27 A Diameter sensor – mm Ambient temperature during operating -25 – 70 °C Switching function latching No Output electronic No Forced opening Yes Suitable for safety functions No With status indication No · Technical Data Sheet – Click to Download
