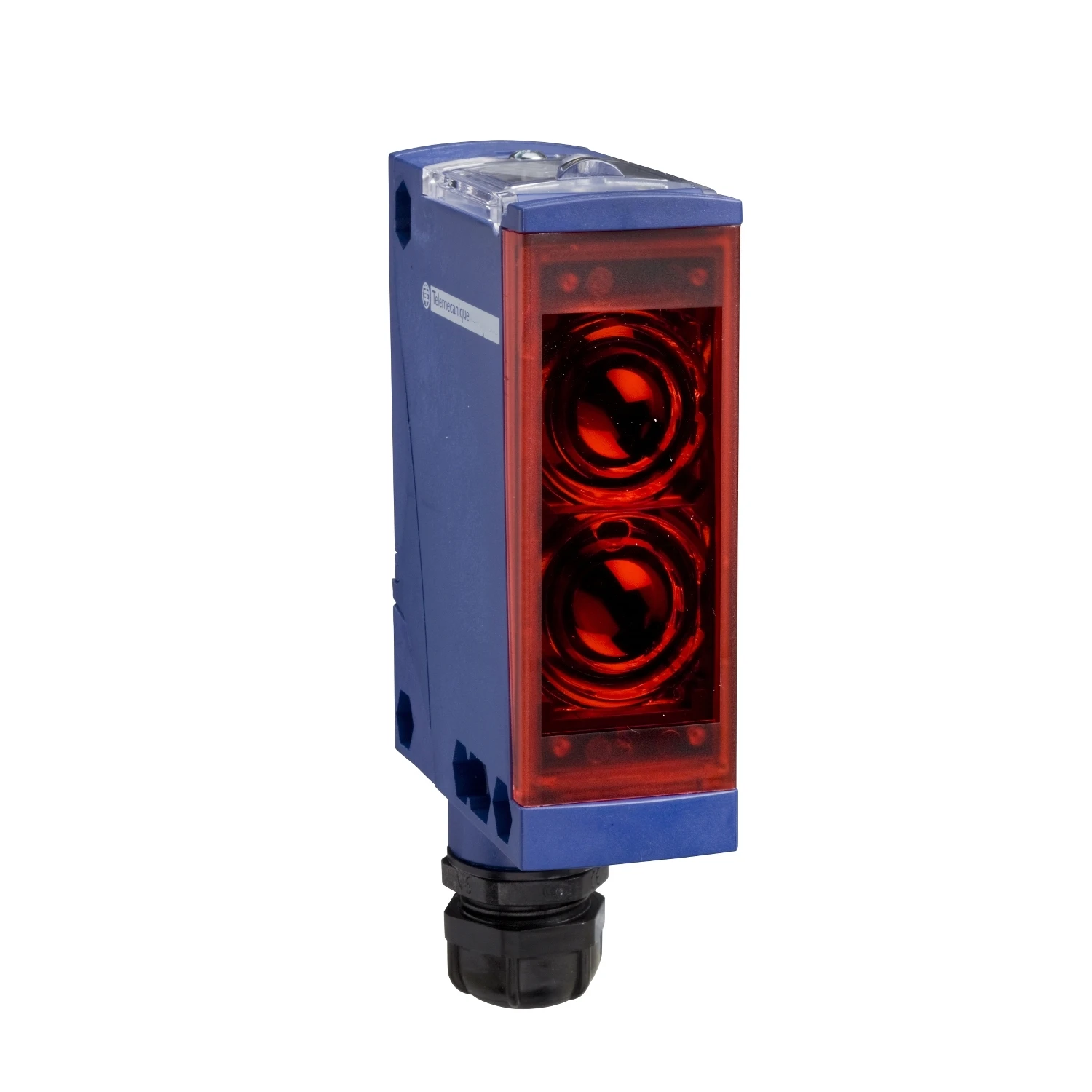

Telemecanique Sensors Photoelectric Sensor Multi-Mode Cable Relay Normally Open / Normally Closed Blue
Awaiting product image

Telemecanique Sensors Photoelectric Sensor Multi-Mode Cable Relay Normally Open / Normally Closed Blue

£198.52 Incl. VAT

This compact design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This multi-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified. · · · This compact design multi mode photo-electric sensor has a PBT case. · · It has a supply voltage of 24V to 240V AC/DC. · · This multi-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. · · It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. · · 3 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. · · IP65 and IP67 protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+55°C). · · It provides double insulation for better people and system protection from electrical shocks. · · It is CSA and UL certified.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XUX0ARCTT16 Categories: , , , , , , Brand: Product Code: 2500135928

Description

Technical Specifications  Technical Specifications Through beam photoelectric sensor Scope of delivery of the one-way system Transmitter and receiver Explosion safety category for gas None Explosion safety category for dust None Housing material Plastic Material of optical surface Plastic Type of light Infrared light Type of switch function Programmable/configurable Sensing mode Dark switching Type of safety acc. IEC 61496-1 1 Construction type housing Cuboid Operation agent-safety class Safety class 0 Setting procedure Teach-In Degree of protection (IP rating) IP65 Voltage type AC/DC Type of electric connection Screw connection Switching frequency 20 Hz Max. output current at protected output – mA Min. reflector distance – mm Diameter sensor – mm Light dot – mm² Transmission range of the safety field – m Number of contact energized outputs with signalling function 0 Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Number of semiconductor outputs with signalling function 0 Opening angle 0 ° Maximum output current 3000 mA Width sensor 30 mm Reaction time 25 ms Switching voltage of OSSD at state “high” – V Height of sensor 92 mm Length of sensor 77 mm AWG-number – Wavelength of the sensor – nm Rated switching distance 40000 mm Max. switching distance 60000 mm Ambient temperature -25 – 55 °C Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V With monitoring function downstream switching devices No With time function No Suitable for safety functions No Analogue output 0 mA … 20 mA No Analogue output 0 V … 10 V No Analogue output 4 mA … 20 mA No Analogue output -10 V … +10 V No Pre failure notice No With communication interface RS-422 No With communication interface PROFIBUS No With communication interface INTERBUS No With communication interface RS-232 No With communication interface DeviceNet No With communication interface CANOpen No With communication interface Ethernet No With communication interface AS-Interface No With communication interface analogue No With other analogue output No With restart blockage No With communication interface SSD No With communication interface RS-485 No With communication interface SSI No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2190539
