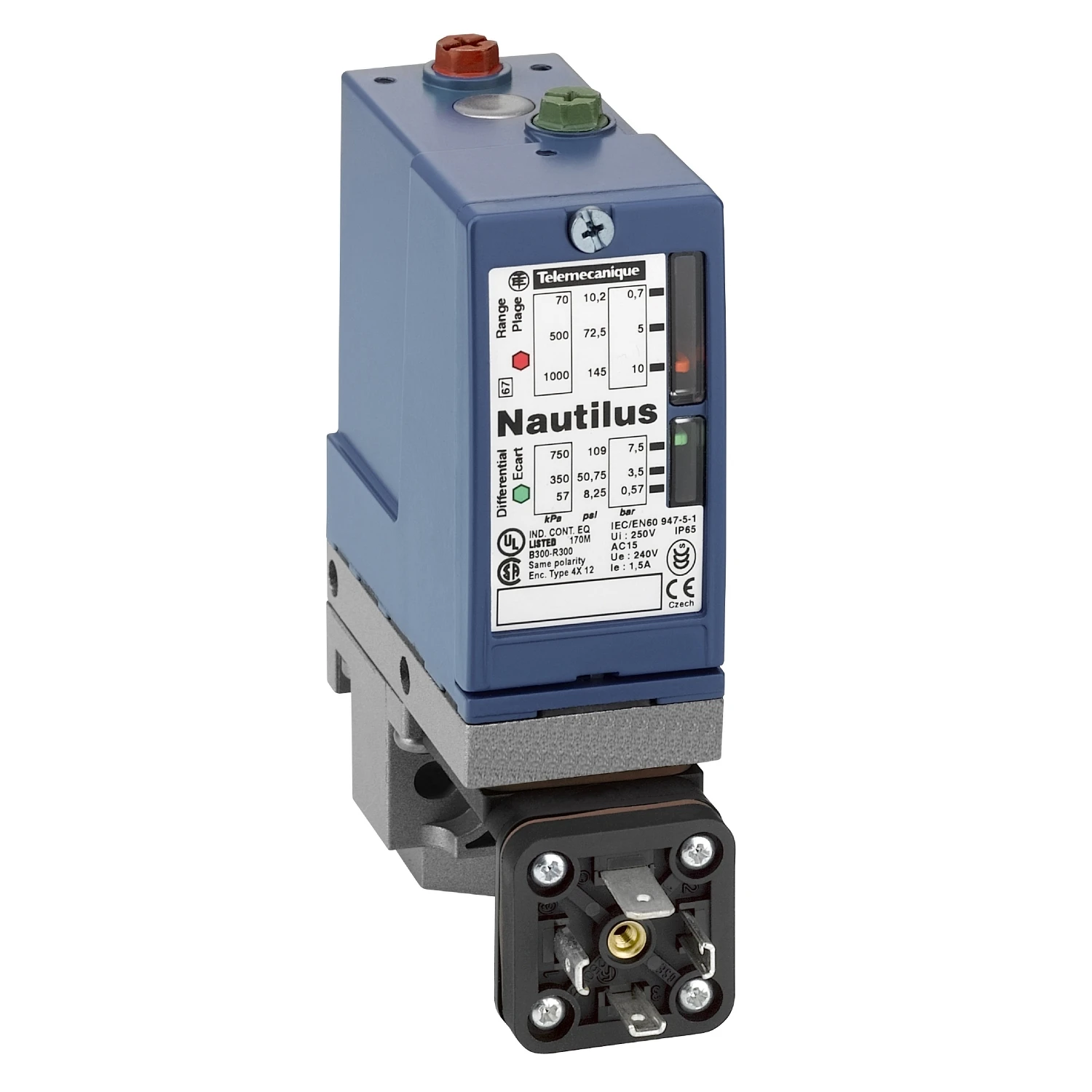

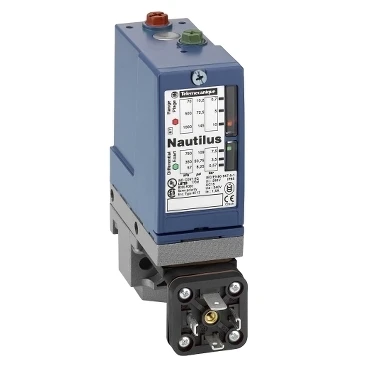

Telemecanique Sensors Pressure Switch Adjustable 1CO Single Pole 30-500Bar M20 x 1.5 Din Connect
£255.70 Incl. VAT
Pressure switch XMLB 500 bar, adjustable scale 2 thresholds, 1 C/O. range of product: OsiSense XM – product or component type: electromechanical pressure sensor – device short name: XMLB – pressure sensor size: 500 bar – product specific application: – – electrical circuit type: control circuit – scale type: adjustable differential – local display: with – adjustable range of switching point on rising pressure: 30…500 bar – adjustable range of switching point on falling pressure: 7…447.4 bar – possible differential maximum at high setting: 300 bar – maximum permissible accidental pressure: 1125 bar – destruction pressure: 2250 bar – pressure actuator: piston – materials in contact with fluid: brass, FPM, FKM, PTFE, stainless steel, steel – enclosure material: zinc alloy – [In] rated current: 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1, 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1, 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1. · · · This XMLB electromechanical pressure switch has an adjustable differential for regulation of 2 thresholds and a zinc alloy body with a range scale window. · · This pressure switch is designed for regulation of pressure between 2 thresholds for hydraulic oils at temperatures up to 160°C. · · It is fixed directly on tubage. · · It provides zinc alloy enclosure for robust performance. · · 3 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. · · It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. · · It is designed for very high pressures up to 500bar, this makes it ideal for hydraulic presses, water jet cutting machines.
Description
Technical Specifications Technical Specifications Pressure switch Degree of protection (IP rating) IP65/IP67 Width 35 mm Depth 75 mm Height 113 mm Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 1 Number of auxiliary contacts as normally open contact 0 Rated operation current Ie at AC-1, 400 V – A Bursting pressure 2250 bar Pressure-switching differential 249.4 bar Max. test pressure 1125 bar Number of main contacts as normally open contact 0 Rated operation current Ie at AC-3, 400 V – A Initial value measuring range pressure – Pa End value measuring range pressure – Pa Switching capacity at AC-3, 240 V – kA Rated operation power at AC-3, 400 V – kW Max. operating pressure 500000 hPa Diameter – mm Engaging pressure 30 – 500 bar Initial setting 30000 – 500000 hPa Rated voltage Ue at AC 50 Hz 120 – 240 V Rated voltage Ue at AC 60 Hz 120 – 240 V Rated voltage Ue at DC 250 – 250 V Switch off pressure 7 – 447.4 bar End setting 7000 – 447400 hPa Adjustable current range – A Medium temperature 0 – 160 °C Suitable as limiter Yes Display No Suitable as 2-point controller Yes With manual on/off switch No With hand operation No Electronic version No Suitable as guard Yes Explosion-proof No · Technical Data Sheet – Click to Download
