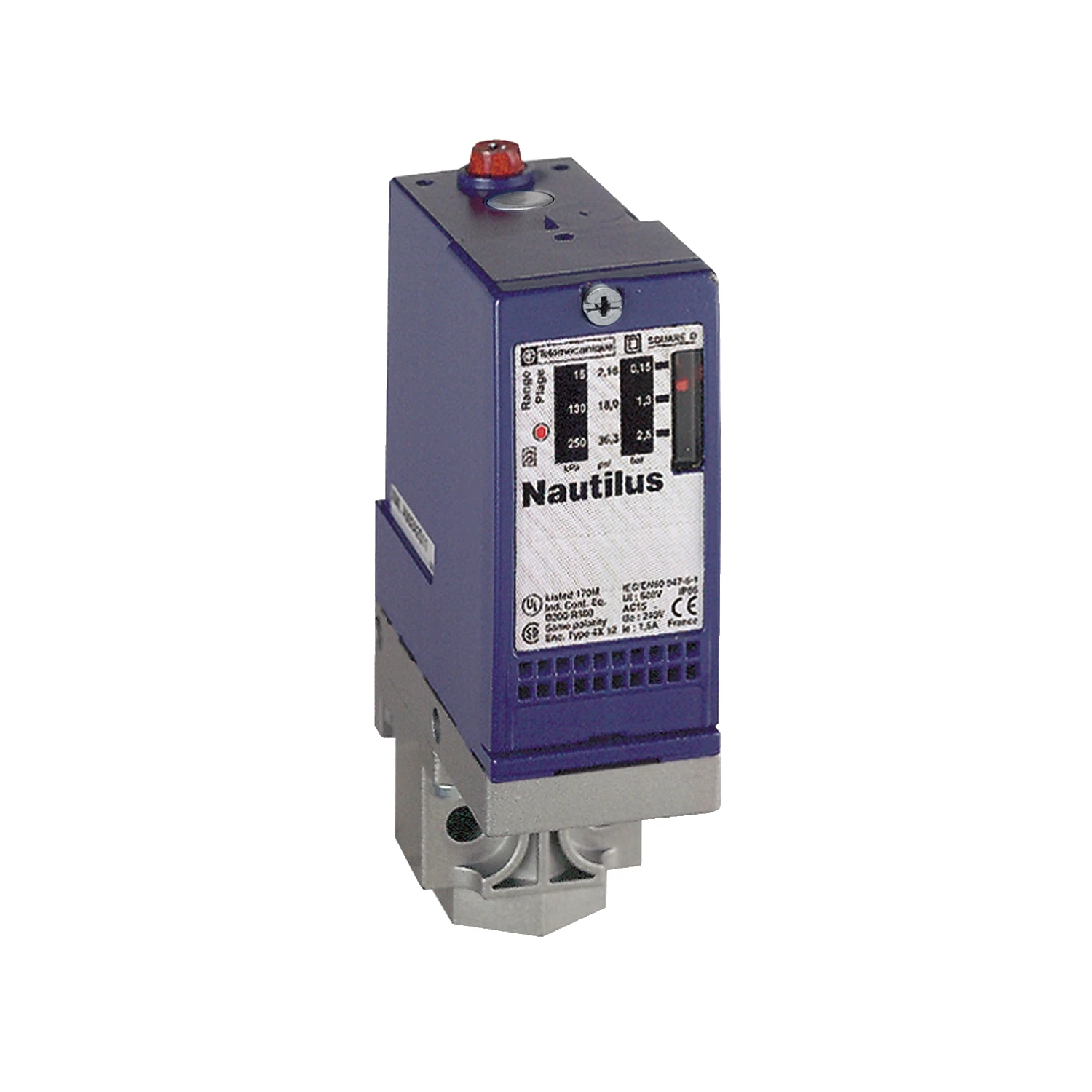

Telemecanique Sensors Pressure Switch Xmla 70 Bar Fixed Scale 1 Threshold 1 C/O
Awaiting product image

Telemecanique Sensors Pressure Switch Xmla 70 Bar Fixed Scale 1 Threshold 1 C/O

£166.54 Incl. VAT

Pressure switch XMLA 70 bar, fixed scale 1 threshold, 1 C/O. range of product: OsiSense XM – product or component type: electromechanical pressure sensor – device short name: XMLA – pressure sensor size: 70 bar – electrical connection: 1 connector Pg 13, screw-clamps terminals 1 x 0.5…2 x 2.5 mm² – AWG gauge: AWG 20…AWG 14 – product specific application: – – electrical circuit type: control circuit – scale type: fixed differential – local display: with – adjustable range of switching point on rising pressure: 5…70 bar – adjustable range of switching point on falling pressure: 2…62.5 bar – maximum permissible accidental pressure: 160 bar – destruction pressure: 320 bar – pressure actuator: piston – materials in contact with fluid: brass, FPM, FKM, PTFE, steel – enclosure material: zinc alloy – [In] rated current: 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1, 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1, 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1. · · · This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. · · This pressure switch is designed for detection of a single pressure threshold in hydraulic oils up to 160°C. · · It is fixed directly on tubage. · · It provides zinc alloy enclosure for robust performance. · · 6 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XMLA070D2S11 Categories: , , Brand: Product Code: 2500153890

Description

Technical Specifications  Technical Specifications Pressure switch Connection Inner thread gas cylindrical (BSPP) Thread size 1/4 inch Degree of protection (IP rating) IP66 Type of electric connection Screw connection Height 113 mm Width 35 mm Number of auxiliary contacts as change-over contact 1 Rated operation current Ie at AC-3, 400 V 0 A Initial value measuring range pressure 0 Pa End value measuring range pressure 0 Pa Rated operation current Ie at AC-1, 400 V 0 A Switching capacity at AC-3, 240 V 0 kA Max. test pressure 160 bar Bursting pressure 320 bar Pressure-switching differential 7.5 bar Max. operating pressure 70000 hPa Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 0 kW Number of auxiliary contacts as normally closed contact 0 Number of normally closed contacts as main contact 0 Number of main contacts as normally open contact 0 Diameter – mm Depth 75 mm Engaging pressure 5 – 70 bar Initial setting 5000 – 70000 hPa Rated voltage Ue at AC 50 Hz 120 – 240 V Rated voltage Ue at AC 60 Hz 120 – 240 V Switch off pressure 2 – 62.5 bar End setting 2000 – 62500 hPa Rated voltage Ue at DC 250 – 250 V Adjustable current range 0 – 0 A Medium temperature 0 – 160 °C Suitable as 2-point controller No With manual on/off switch No Suitable as limiter No With hand operation No Suitable as guard Yes Electronic version Yes Display No Explosion-proof No · Technical Data Sheet – Click to Download
