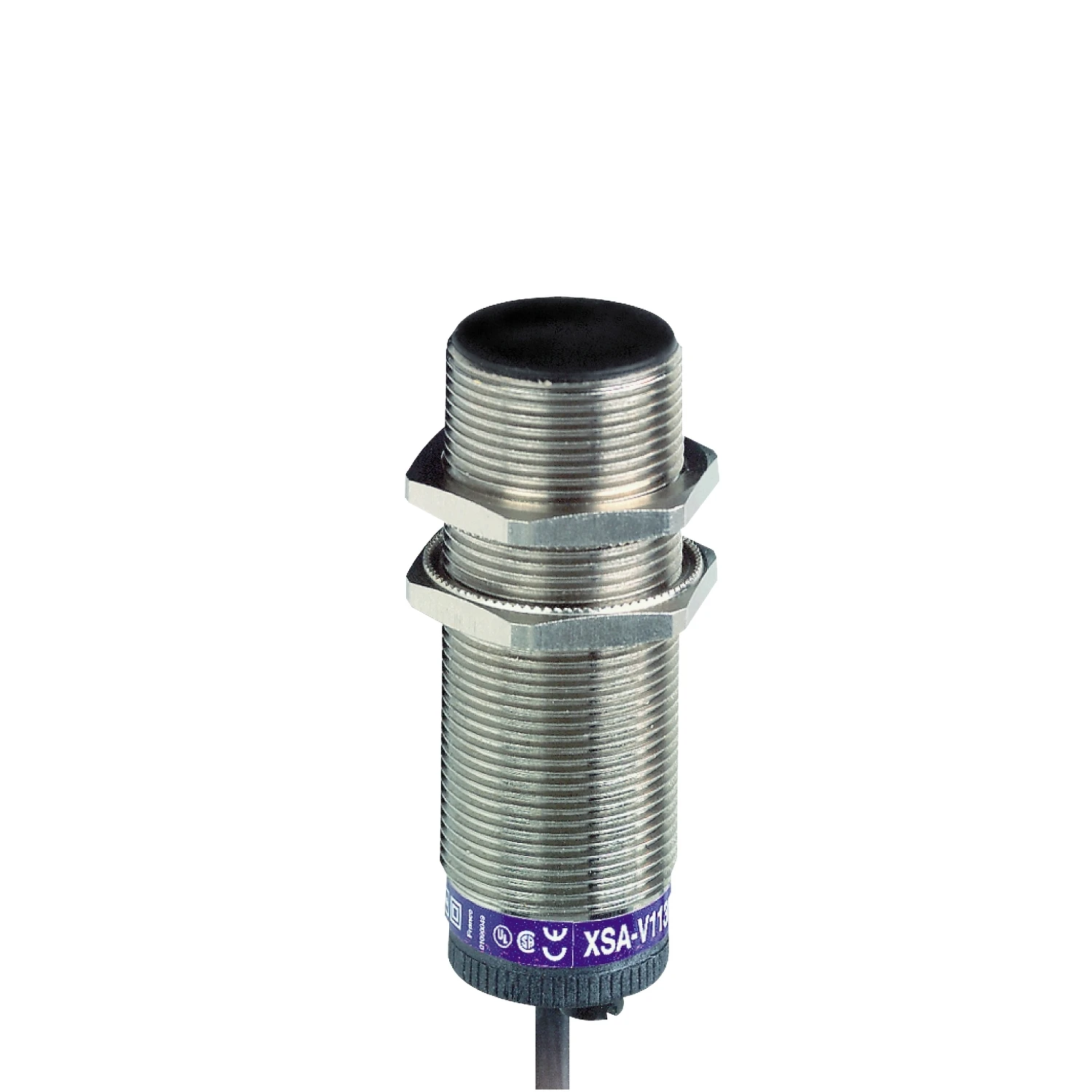

Telemecanique Sensors Sensor Proximity Inductive Cylindrical 120…3000 cyc/mn

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Construction type housing Cylinder, screw-thread Coating housing Nickel-plated Mechanical mounting condition for sensor Concise Type of switch function Breaker contact Housing material Metal Type of switching output PNP/PNP Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Switching frequency 800 Hz Width sensor – mm Number of semiconductor outputs with signalling function 1 Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Height of sensor – mm Diameter sensor 30 mm Length of sensor 81 mm Max. output current at protected output 200 mA Switching distance 10 mm Rated control supply voltage at DC 24 – 210 V Supply voltage 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Cascadable No Suitable for safety functions No With monitoring function downstream switching devices No Compression-resistant No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188047
