Telemecanique Sensors Switch 30-500Bar
£237.01 Incl. VAT

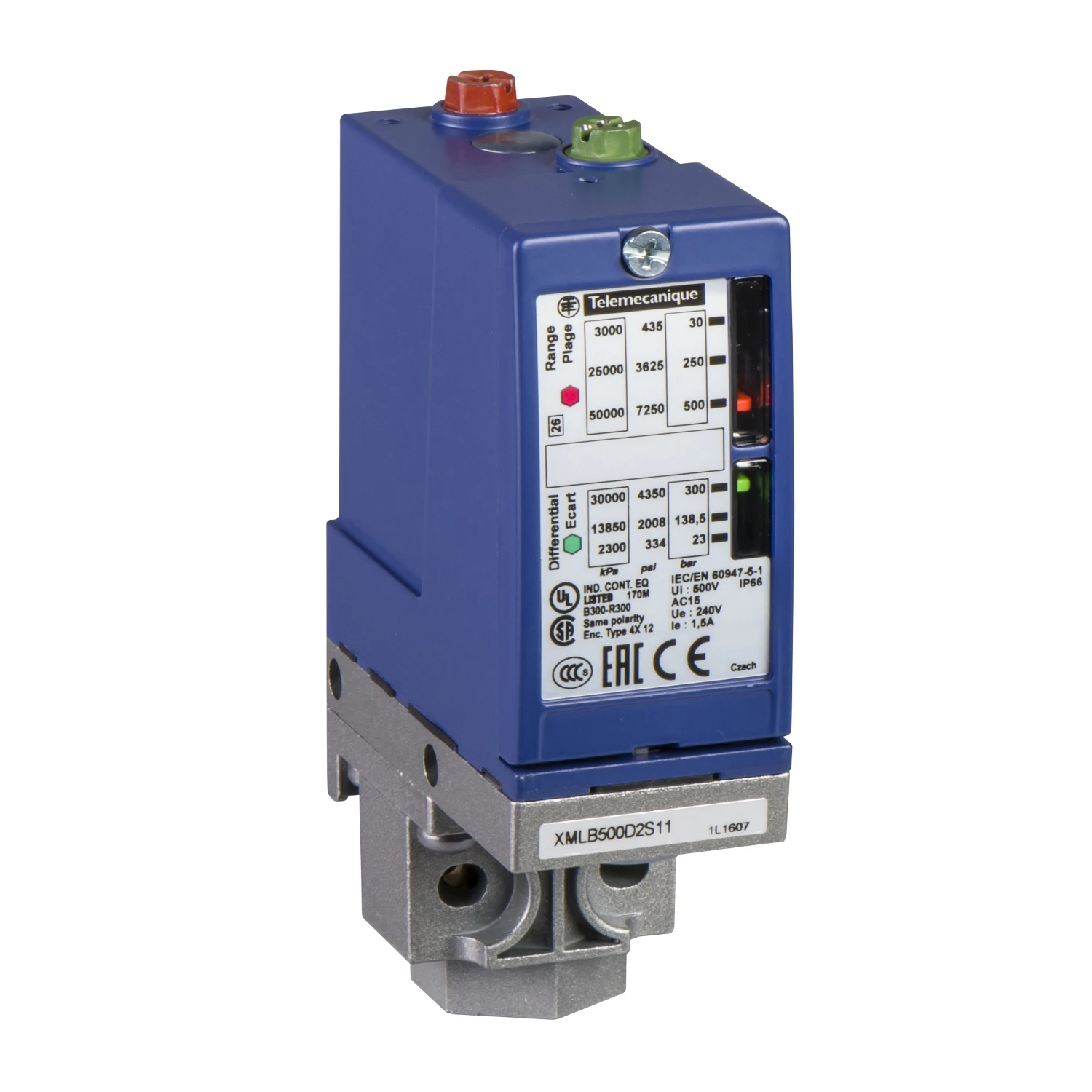

This XMLB electromechanical pressure switch has an adjustable differential for regulation of 2 thresholds and a zinc alloy body with a range scale window. This pressure switch is designed for regulation of pressure between 2 thresholds for hydraulic oils at temperatures up to 160°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 3 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 500bar, this makes it ideal for hydraulic presses, water jet cutting machines.
Description
Technical Specifications Technical Specifications Pressure switch Degree of protection (IP rating) IP66 Type of electric connection Screw connection Depth 75 mm Height 113 mm Number of auxiliary contacts as normally closed contact 0 Width 35 mm Rated operation current Ie at AC-3, 400 V – A Number of auxiliary contacts as change-over contact 1 End value measuring range pressure – Pa Number of auxiliary contacts as normally open contact 0 Number of normally closed contacts as main contact 0 Number of main contacts as normally open contact 0 Max. operating pressure 500000 hPa Rated operation power at AC-3, 400 V – kW Diameter – mm Rated operation current Ie at AC-1, 400 V – A Bursting pressure 2250 bar Switching capacity at AC-3, 240 V – kA Initial value measuring range pressure – Pa Pressure-switching differential 249.4 bar Max. test pressure 1125 bar Switch off pressure 7 – 447.4 bar Engaging pressure 30 – 500 bar Initial setting 30000 – 500000 hPa End setting 7000 – 447400 hPa Rated voltage Ue at DC 250 – 250 V Rated voltage Ue at AC 60 Hz 120 – 240 V Rated voltage Ue at AC 50 Hz 120 – 240 V Medium temperature 0 – 160 °C Adjustable current range – A Display No Suitable as 2-point controller Yes Explosion-proof No Electronic version No With manual on/off switch No With hand operation No Suitable as guard Yes Suitable as limiter Yes · Technical Data Sheet – Click to Download
