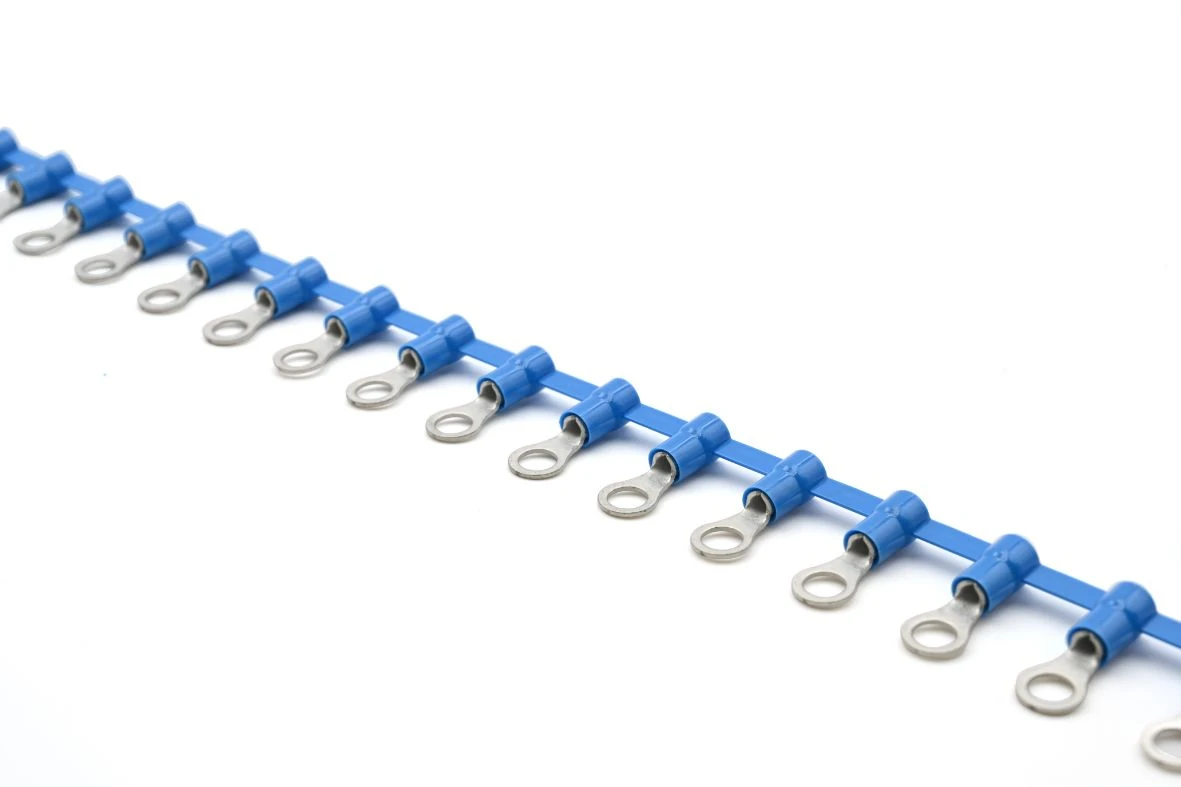

Cembre Terminal 1.5-2.5mm2 Blue
1.5mm²-2.5mm² Halogen free Polycarbonate insulated chain linked ring terminals M4 stud blue · · · Insulation sleeve in Polycarbonate · · -20°C to 115°C Temperature Range · · Halogen Free · · Annealed to guarantee optimum ductility · · Electrolytically tin-plated to avoid oxidisation · · Facilited Introduction of the conductor
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Material Copper Sleeve form Short Insulation PC Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 4 Max. current (Imax) – A According to DIN No Reel packaging Yes Useful for stranded conductors Yes Suitable for solid cores No Suitable for insulated varnish No Suitable for flat conductors No AWG-range 16 – 14 Nominal cross section 1.5 – 2.5 mm² For pull protected connections No Suitable for fine strand conductors Yes Suitable for round conductors Yes Suitable for high temperatures (to 650 °C) No · Technical Data Sheet – Click to Download
