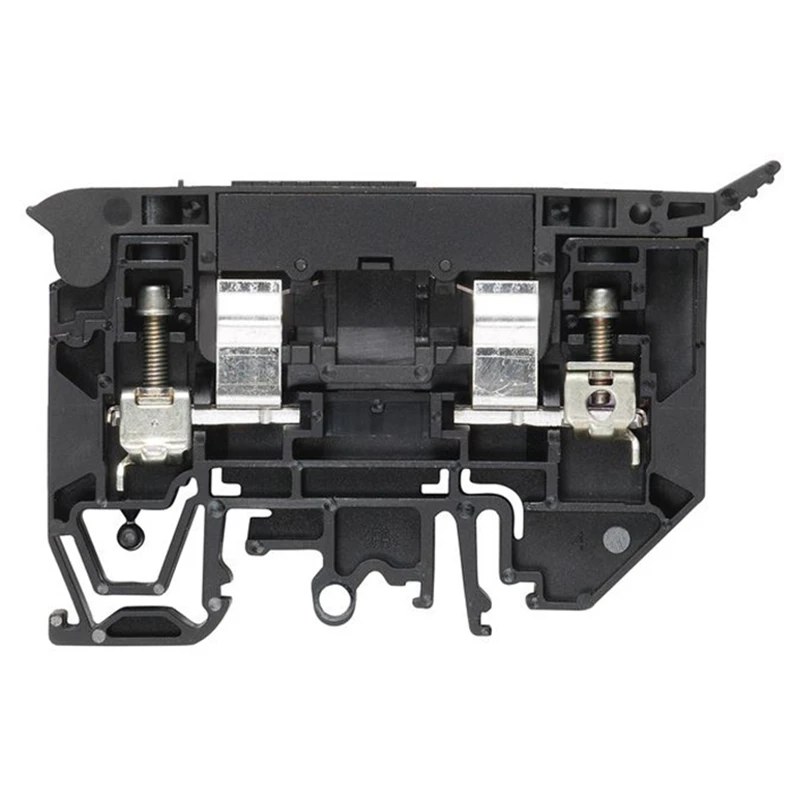

Terminal 22-10AWG Wemid 22g 9.1×53.5×81.6mm Black

Description

Technical Specifications  Technical Specifications Fused terminal block Connection position Sideways Inflammability class of insulation material acc. with UL94 V0 Mounting method DIN rail (top hat rail) 35 mm Material insulation body Urea formaldehyde Colour Beige Voltage type for defect indication AC Height at lowest possible mounting height 53.5 mm Rated voltage 500 V Rated current In 6.3 A Number of levels 1 Width/grid dimension 9.1 mm Length 81.6 mm Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Supply voltage for defect-indication 10 – 36 V Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Closing plate required Yes · Technical Data Sheet – Click to Download
