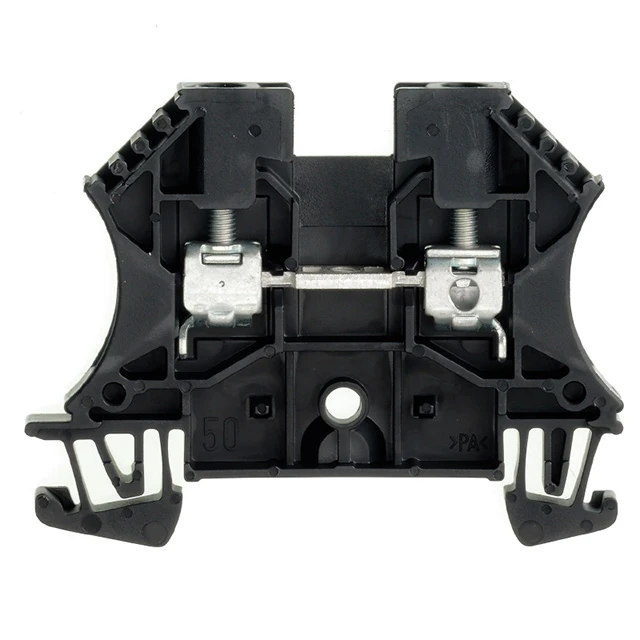

Weidmuller Terminal 26-10AWG Wemid 1g 6.1x46.5x56mm Black
Weidmuller Terminal 26-10AWG Wemid 1g 6.1x46.5x56mm Black
Weidmuller Terminal 26-10AWG Wemid 1g 6.1x46.5x56mm Black - Image 2

Weidmuller Terminal 26-10AWG Wemid 1g 6.1×46.5x56mm Black

Pack of 10

£10.90 Incl. VAT

Weidmuller 1020110000 black TS 35 snap-on mounting modular feed through terminal is made of Wemid body. The WDU 4 SW features 1000V DC rated voltage tested. Rated voltage is 400V when using the cross-connector. It also features M3 clamping screw, 26 to 10AWG wire connection cross section, 0.5 to 1Nm tightening torque, 8kV rated impulse withstand voltage and 41A current at maximum wires. · · · Colour: Black · · Conductor Size: 26-10 AWG · · Height: 60mm · · Material: Wemid · · Width: 6.1mm · · Weight: 1g · · Depth: 46.5mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1020110000 Categories: , , , , , Brand: Product Code: 2500196406

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Black Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 800 V Number of clamp positions per level 2 Rated current In 32 A Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 6 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Connectable conductor cross section multi-wired 1.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
