Weidmuller Terminal 26-12AWG Wemid 14g 6.1x63.25x60mm Dark Beige
Weidmuller Terminal 26-12AWG Wemid 14g 6.1x63.25x60mm Dark Beige
Weidmuller Terminal 26-12AWG Wemid 14g 6.1x63.25x60mm Dark Beige - Image 2

Weidmuller Terminal 26-12AWG Wemid 14g 6.1×63.25x60mm Dark Beige

£2.70 Incl. VAT

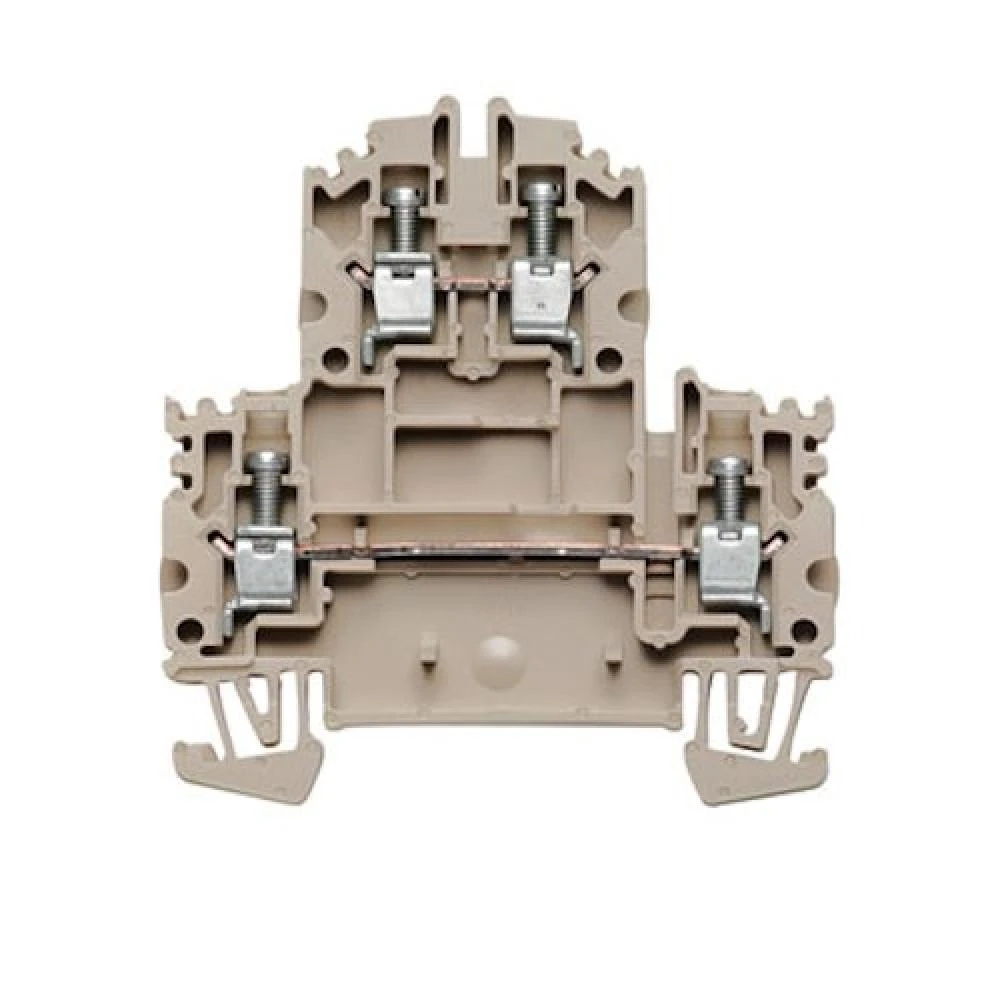

Weidmuller 1041900000 dark beige TS 35 dnap-on mounting modular 2-tier terminal is made of Wemid body. The WDK 4N terminal can feed two potentials in one terminal. The rated voltage is 400V when using the ZQV cross-connection. It also features M3 clamping screw, 26 to 12AWG wire connection cross section, 0.5 to 1Nm tightening torque, 8kV rated impulse withstand voltage and 35A current at maximum wires. · · · Colour: Dark Beige · · Conductor Size: 26-12 AWG · · Height: 60mm · · Material: Wemid · · Width: 6.1mm · · Weight: 14g · · Depth: 63.25mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1041900000 Categories: , , Brand: Product Code: 2500186834

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Mounting method Direct mounting Number of levels 2 Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated voltage 800 V Number of clamp positions per level 2 Width 6.1 mm Rated current In 32 A Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Connectable conductor cross section multi-wired 1.5 – 6 mm² Closing plate required Yes Explosion-tested version ‘Ex e’ Yes Internally connected stages No · Technical Data Sheet – Click to Download
