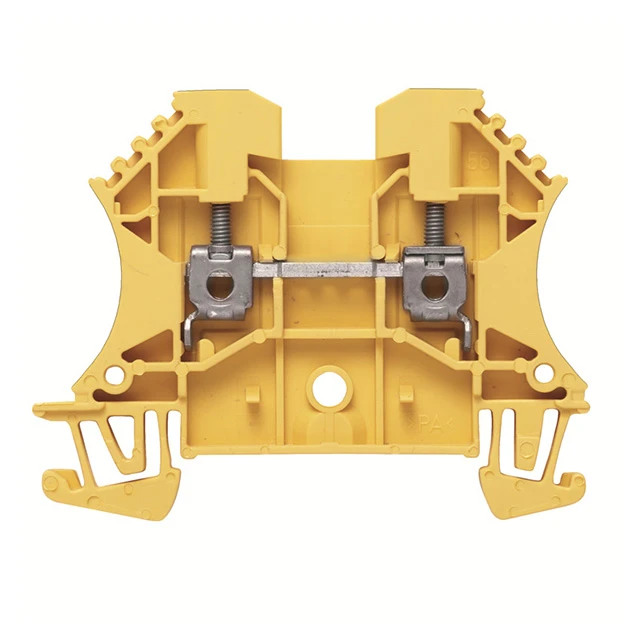

Terminal 30-12AWG Wemid 9g 5.1×46.5x60mm Yellow

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Connection position Inclined Inflammability class of insulation material acc. with UL94 V0 Mounting method Direct mounting Colour Yellow Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Height at lowest possible mounting height 47 mm Operating temperature -50 – 120 °C Number of clamp positions per level 2 Number of levels 1 Rated current In 24 A Length 60 mm Width/grid dimension 5.1 mm Rated voltage 800 V Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
