Terminal 7.9 x 49.5 x 82.7mm 6mm² Dark Beige
£7.54 Incl. VAT

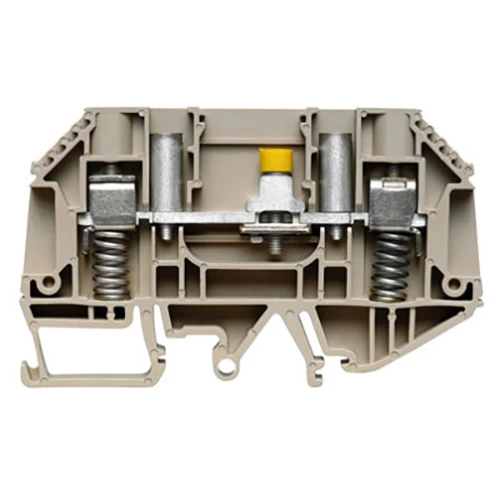

Weidmuller 9538080000 dark beige TS 32, TS 35 snap-on mounting modular test-disconnect terminal made of Wemid body. The WTL 6 SL/EN terminal features M3.5 clamping screw, 0.8 to 1.6Nm tightening torque, 6kV rated impulse withstand voltage and 41A rated current. · · · Colour: Dark Beige · · Conductor Size: 6mm² · · Height: 82.7mm · · Material: Wemid · · Width: 7.9mm · · Weight: 31g · · Depth: 49.5mm
Out of stock
Description
Technical Specifications Technical Specifications (Knife) disconnect terminal block Mounting method G-rail Colour Beige Rated voltage 630 V Number of levels 1 Connectable conductor cross section multi-wired 6 – 6 mm² Rated current In 41 A Connectable conductor cross section solid-core 0.5 – 0.5 mm² With integrated test socket No · Technical Data Sheet – Click to Download
