Description

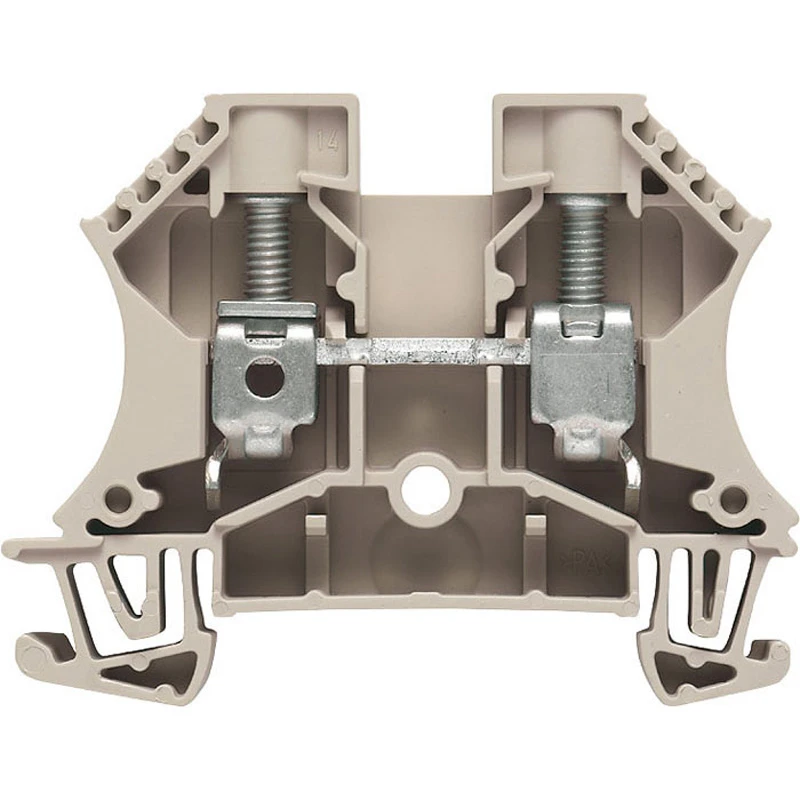

Technical Specifications  Technical Specifications Feed-through terminal block Inflammability class of insulation material acc. with UL94 V0 Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Connection position Sideways Colour Beige Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 1000 V Width/grid dimension 9.9 mm Number of levels 1 Height at lowest possible mounting height 47 mm Number of clamp positions per level 2 Rated current In 57 A Width 9.9 mm Length 60 mm Depth 46.5 mm Height 60 mm Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 16 mm² Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Connectable conductor cross section solid-core 1.5 – 16 mm² Connectable conductor cross section multi-wired 1.5 – 16 mm² Operating temperature -50 – 120 °C Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
