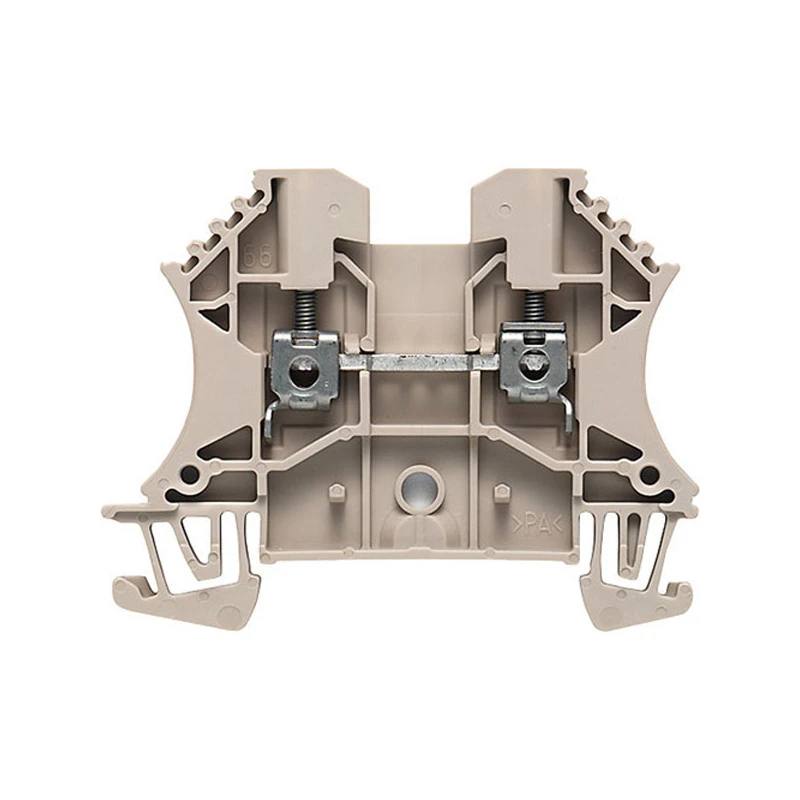

Terminal Feed Through WDU 2.5 2.5mm 24A 800V Beige Screw
£0.85 Incl. VAT
This is a Feed Through Terminal Block made of Wemid with Snap-On mounting. The WDU 2.5 offers high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. The Klippon connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel
5819 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Feed-through terminal block Inflammability class of insulation material acc. with UL94 V0 Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Connection position Sideways Colour Beige Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Width 5.1 mm Rated voltage 800 V Height 60 mm Length 60 mm Number of levels 1 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Depth 46.5 mm Rated current In 24 A Height at lowest possible mounting height 47 mm Number of clamp positions per level 2 Width/grid dimension 5.1 mm Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Operating temperature -50 – 120 °C Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
