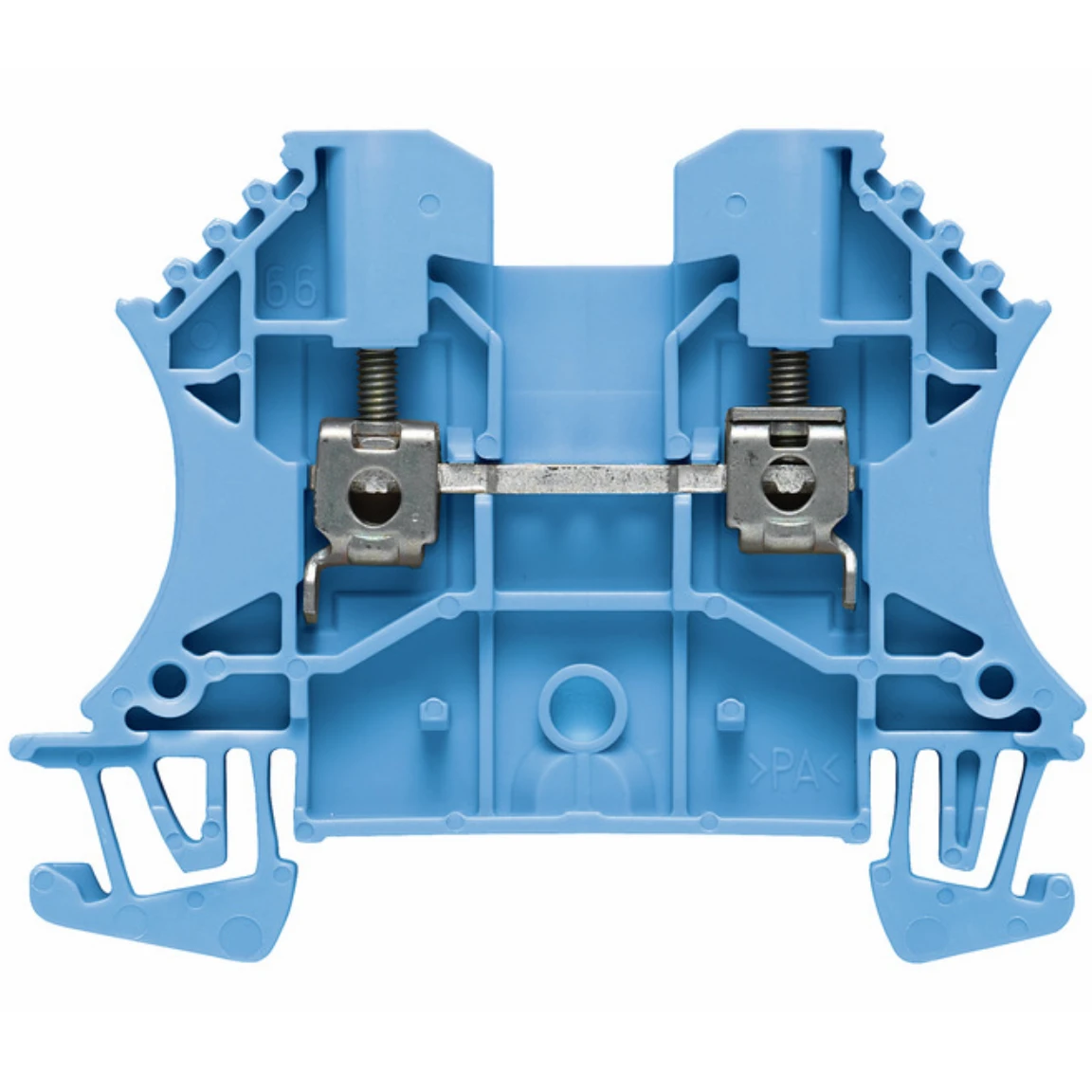

Weidmuller Terminal Feed Thr WDU 2.5 Bl 2.5mm 24A 800V Blue Screw Connector [Pack=10]
Weidmuller Terminal Feed Thr WDU 2.5 Bl 2.5mm 24A 800V Blue Screw Connector [Pack=10]
Weidmuller Terminal Feed Thr WDU 2.5 Bl 2.5mm 24A 800V Blue Screw Connector [Pack=10] - Image 2

Weidmuller Terminal Feed Thr WDU 2.5 Bl 2.5mm 24A 800V Blue Screw Connector [Pack=10]

Pack of 10

£10.90 Incl. VAT

Weidmuller 1020080000 blue TS 35 snap-on mounting modular feed through terminal is made of Wemid body. The WDU 2.5 BL features rated voltage is 400V when using the cross-connector. It also features M2.5 clamping screw, 30 to 12AWG wire connection cross section, 0.4 to 0.8Nm tightening torque, 8kV rated impulse withstand voltage and 32A current at maximum wires. · · · Colour: Blue · · Conductor Size: 30-12 AWG · · Connection Type: Screw · · Current Rating: 24A, Voltage Rating: 800V · · Height: 60mm, Length: 60mm, Width: 5.1mm, Depth: 46.5mm · · Material: Wemid · · Mounting Type: Snap-On · · Weight: 8g · · CE: yes

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1020080000 Categories: , , , , , Brand: Product Code: 2500013441

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Blue Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 800 V Rated current In 24 A Number of clamp positions per level 2 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Number of levels 1 Connectable conductor cross section solid-core 0.5 – 4 mm² Explosion-tested version ‘Ex e’ Yes Closing plate required Yes Connectable conductor cross section multi-wired 1.5 – 4 mm² Internally connected stages No · Technical Data Sheet – Click to Download
