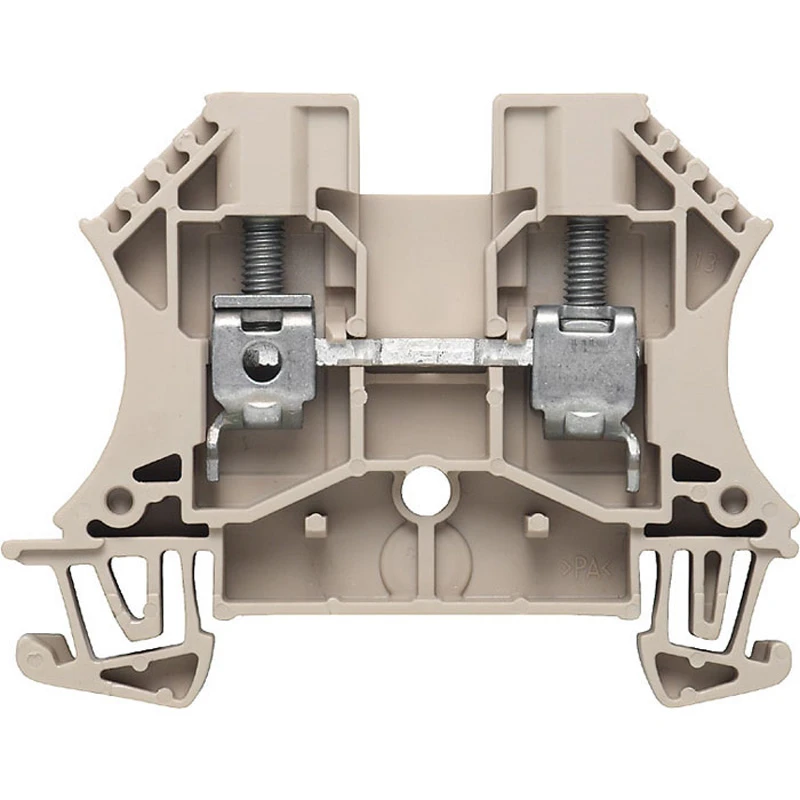

Weidmuller Terminal Feed Through WDU 6 6mm 41A 800V Beige Screw Connector [Pack=10]
Weidmuller Terminal Feed Through WDU 6 6mm 41A 800V Beige Screw Connector [Pack=10]
Weidmuller Terminal Feed Through WDU 6 6mm 41A 800V Beige Screw Connector [Pack=10] - Image 2

Weidmuller Terminal Feed Through WDU 6 6mm 41A 800V Beige Screw Connector [Pack=10]

Pack of 10

£12.97 Incl. VAT

This is a Feed Through Terminal Block made of Wemid with Snap-On mounting. The WDU 6 offers high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. The Klippon connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1020200000 Categories: , , , , , Brand: Product Code: 2500013456

Description

Technical Specifications  Technical Specifications Feed-through terminal block Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Screw connection Width 7.9 mm Type of electrical connection 2 Screw connection Rated voltage 800 V Rated current In 41 A Number of levels 1 Depth 46.5 mm Number of clamp positions per level 2 Height 60 mm Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 10 mm² Connectable conductor cross section solid-core 0.5 – 10 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 6 mm² Connectable conductor cross section multi-wired 1.5 – 10 mm² Operating temperature -50 – 120 °C Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
