Terminal Test Disconnect 4mm² 26-10AWG Dark Beige
Terminal Test Disconnect 4mm² 26-10AWG Dark Beige
Terminal Test Disconnect 4mm² 26-10AWG Dark Beige - Image 2
Terminal Test Disconnect 4mm² 26-10AWG Dark Beige - Image 3

Terminal Test Disconnect 4mm² 26-10AWG Dark Beige

£5.46 Incl. VAT

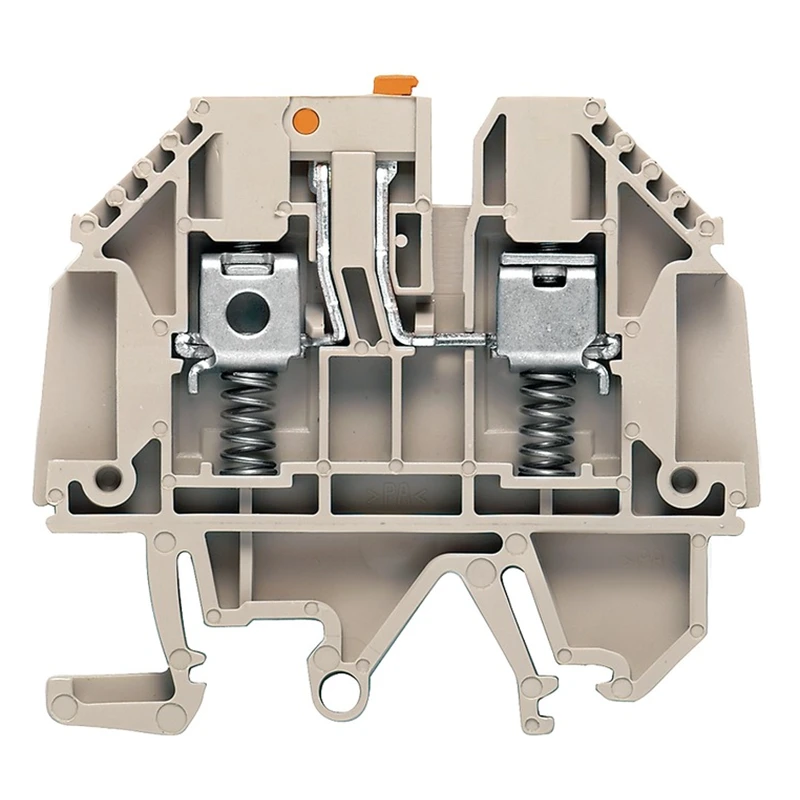

Weidmuller 7910360000 dark beige TS 32, TS 35 snap-on mounting modular test-disconnect terminal made of Wemid body. The WTR 4 SL/EN terminal features M3 clamping screw, 26 to 10AWG wire connection cross section, 0.5 to 1Nm tightening torque, 6kV rated impulse withstand voltage and 32A rated current. · · · Colour: Dark Beige · · Conductor Size: 26-10 AWG · · Height: 61.5mm · · Material: Wemid · · Width: 6.1mm · · Weight: 15g · · Depth: 51mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 7910360000 Categories: , , Brand: Part Number: 1050432095

Description

Technical Specifications  Technical Specifications (Knife) disconnect terminal block Mounting method G-rail Colour Beige Rated current In 32 A Number of levels 1 Rated voltage 630 V Connectable conductor cross section multi-wired 1.5 – 1.5 mm² Connectable conductor cross section solid-core 0.5 – 0.5 mm² With integrated test socket No · Technical Data Sheet – Click to Download
