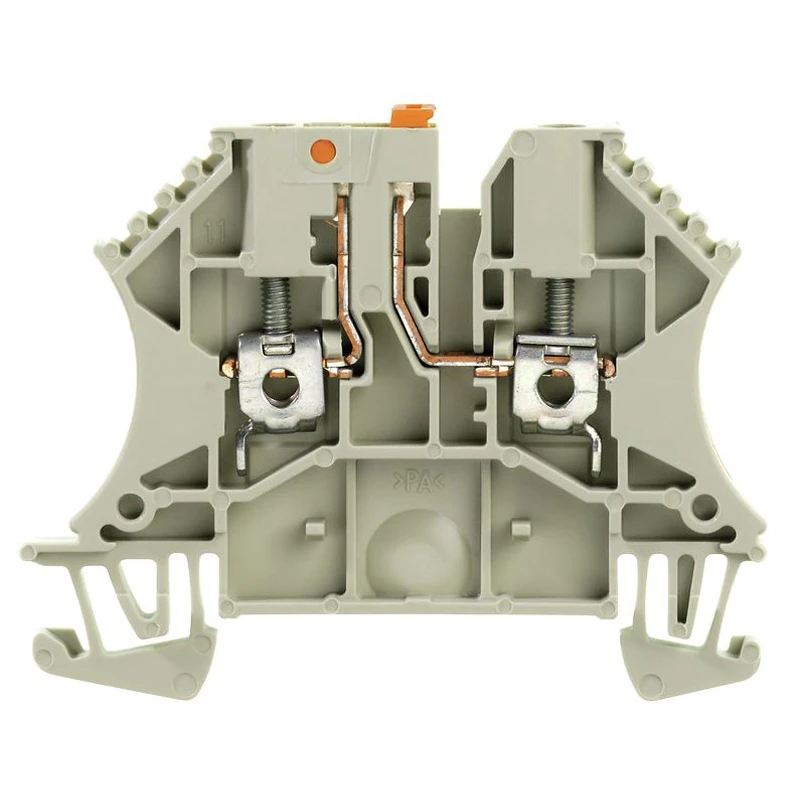

Weidmuller Terminal Test Disconnect Water 2.5 Stb2.3 2.5mm 24A 500V Beige

Technical Specifications  Technical Specifications (Knife) disconnect terminal block Material insulation body Thermoplastic Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Number of levels 1 Number of clamp positions per level 2 Rated voltage 500 V Rated current In 24 A Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Closing plate required Yes With integrated test socket Yes Internally connected stages No · Technical Data Sheet – Click to Download
