Description

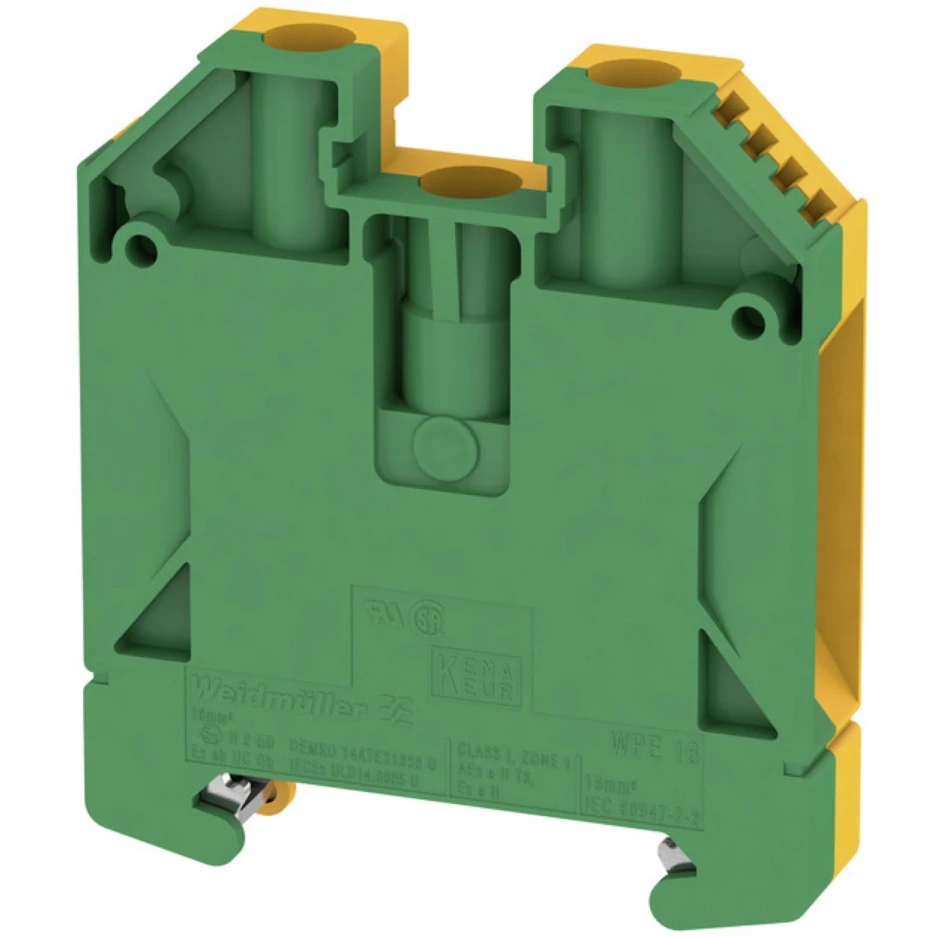

Technical Specifications  Technical Specifications Earth terminal block Colour Green/yellow Mounting method DIN rail (top hat rail) 35 mm Inflammability class of insulation material acc. with UL94 V0 Connection position Above Material insulation body Thermoplastic Number of clamp positions per level 2 Operating temperature -50 – 120 °C Number of levels 1 Height at lowest possible mounting height 56 mm Width/grid dimension 11.9 mm Length 63 mm Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 25 mm² Connectable conductor cross section solid-core 1.5 – 25 mm² Connectable conductor cross section multi-wired 1.5 – 25 mm² Closing plate required No PEN function possible No · Technical Data Sheet – Click to Download
