Description

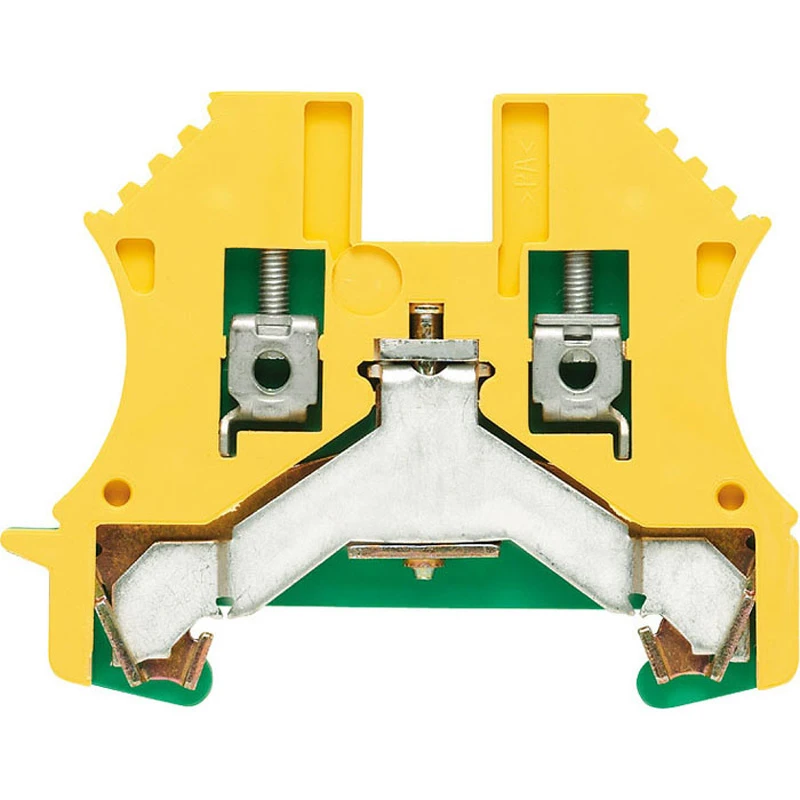

Technical Specifications  Technical Specifications Earth terminal block Inflammability class of insulation material acc. with UL94 V0 Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Connection position Sideways Colour Green/yellow Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Length 60 mm Number of clamp positions per level 2 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section multi-wired 0.5 – 0.4 mm² Operating temperature -50 – 120 °C Number of levels 1 Height at lowest possible mounting height 60 mm Width/grid dimension 5.1 mm Connectable conductor cross section solid-core 0.5 – 4 mm² PEN function possible No Closing plate required Yes · Technical Data Sheet – Click to Download
