Description

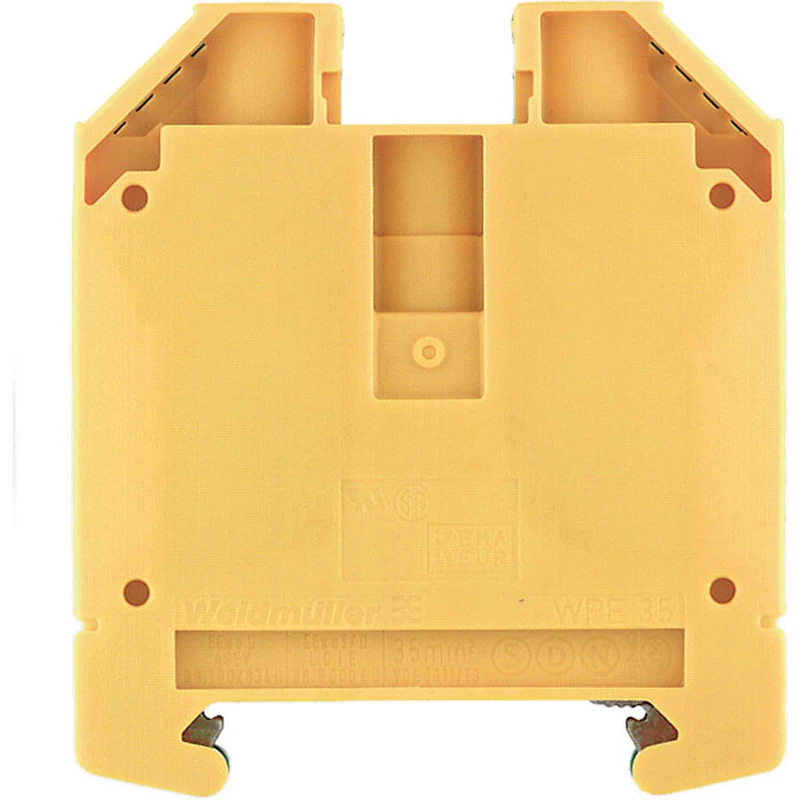

Technical Specifications  Technical Specifications Earth terminal block Inflammability class of insulation material acc. with UL94 V0 Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Connection position Sideways Colour Green/yellow Type of electrical connection 1 Screw connection Height at lowest possible mounting height 56 mm Connectable conductor cross section solid-core 2.5 – 16 mm² Operating temperature -50 – 120 °C Length 56 mm Number of levels 1 Number of clamp positions per level 2 Width/grid dimension 16 mm Type of electrical connection 2 Screw connection Connectable conductor cross section fine-strand without cable end sleeve 2.5 – 35 mm² Connectable conductor cross section fine-strand with cable end sleeve 2.5 – 35 mm² Connectable conductor cross section multi-wired 2.5 – 35 mm² PEN function possible No Closing plate required No · Technical Data Sheet – Click to Download
