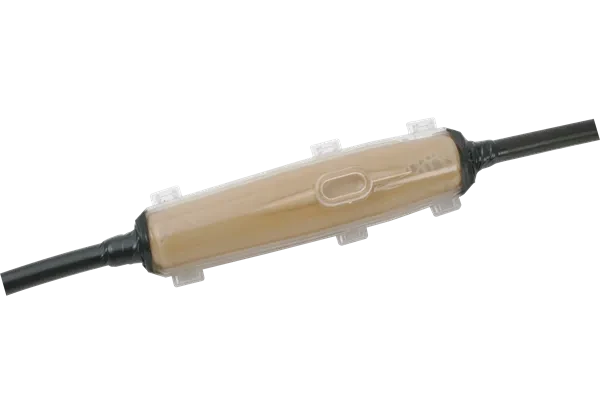

Termination Technology Termtech Jointing Kit 18-30mm

The Termination Technology range of straight resin joint kits are ideal for joining cables together where a cable has been damaged or replaced. Supplied with click together moulds and two part polyurethane resin for insulation making the installation as easy as possible. Suitable for single and multiple polymeric and paper cables both stranded and solid copper/aluminium cores.nThe range in the part code is based on a 3/4 core cable of this size, anything with less or more cores within this range can be sizes based on the joints overall diameter acceptance range.nJoints up to and including JK25-50 come complete with crimp type connectors, JK70-120 and above do not and are supplied separately. Mechanical connectors also available from stock if required. · · · 25mm² – 50mm² cable range (3/4 Core) · · 18mm-30mmØ cable acceptance range · · 260mm x 80mm x 77mm · · 4x BS25, 4x BS35 and 4x BS50 connectors included · · Performance tested to BS6910/HD623 /VDE0278 · · 3.6kV Voltage rating
