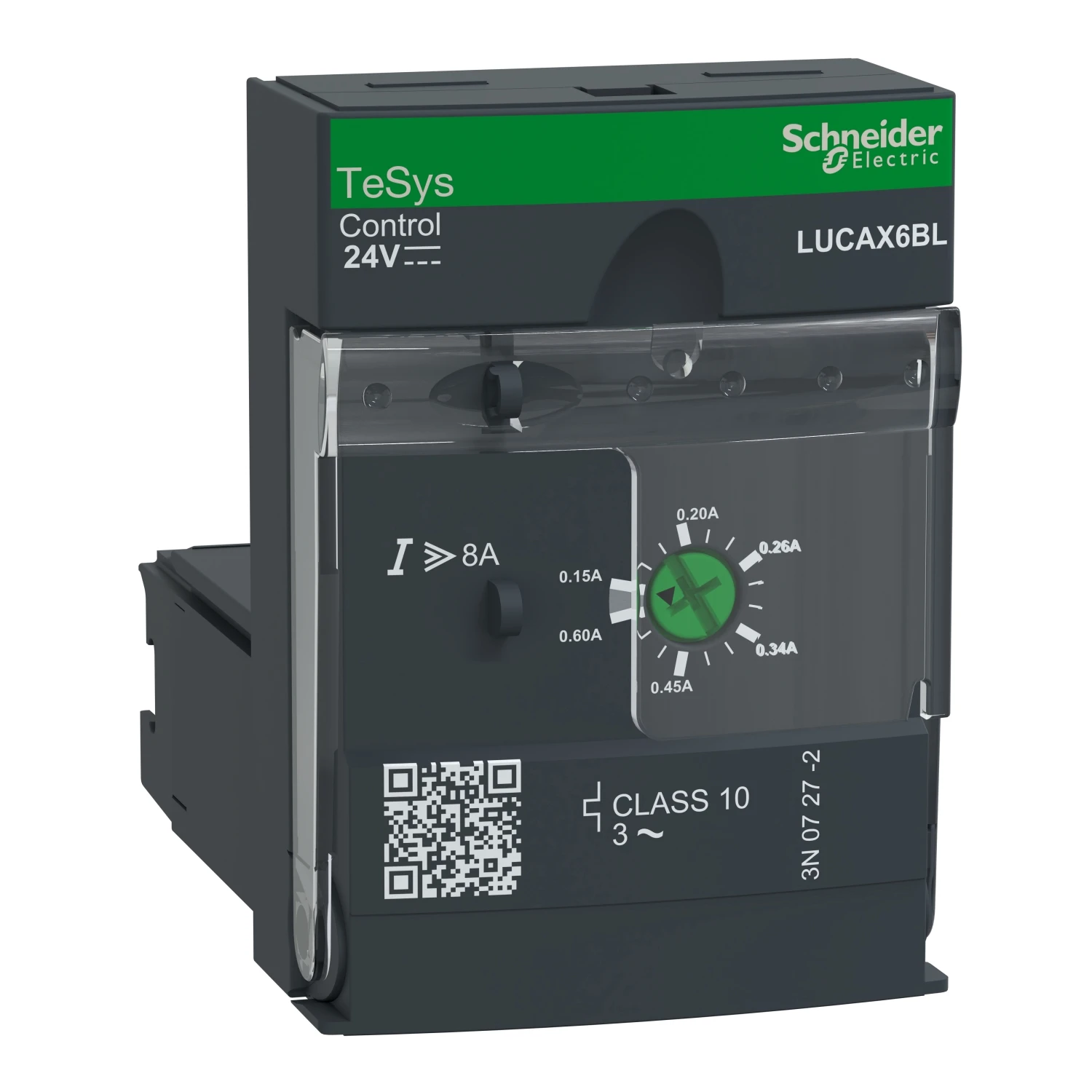

TeSys 0.15-0.6A Standard Control Unit 24V DC
£84.90 Incl. VAT
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.09kW@400V. It provides full protection to motors with a rated current Ir 0.15-0.6A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.09kW@400V. · · It provides full protection to motors with a rated current Ir 0.15-0.6A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). · · Motor power: 0.09kW at 400-440V AC · · Control circuit voltage limits: 20 – 27V · · To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). · · Vibration resistance: 2-4gn (open/closed) · · Fire resistance: 650°C · · IP20/40 Degree of protection · · Ambient temperature: -25°C to 70°C · · RoHS compliant
Out of stock
Description
Technical Specifications Technical Specifications Trip block for power circuit-breaker Rated permanent current Iu 0.60 A Initial value of the undelayed short-circuit release – setting range 7.80 A End value adjustment range undelayed short-circuit release 7.80 A Number of poles 3.00 Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Overload release current setting 0.15 – 0.60 A Rated control supply voltage at DC 24.00 – 24.00 V With ground fault protection function Yes · Technical Data Sheet – Click to Download
