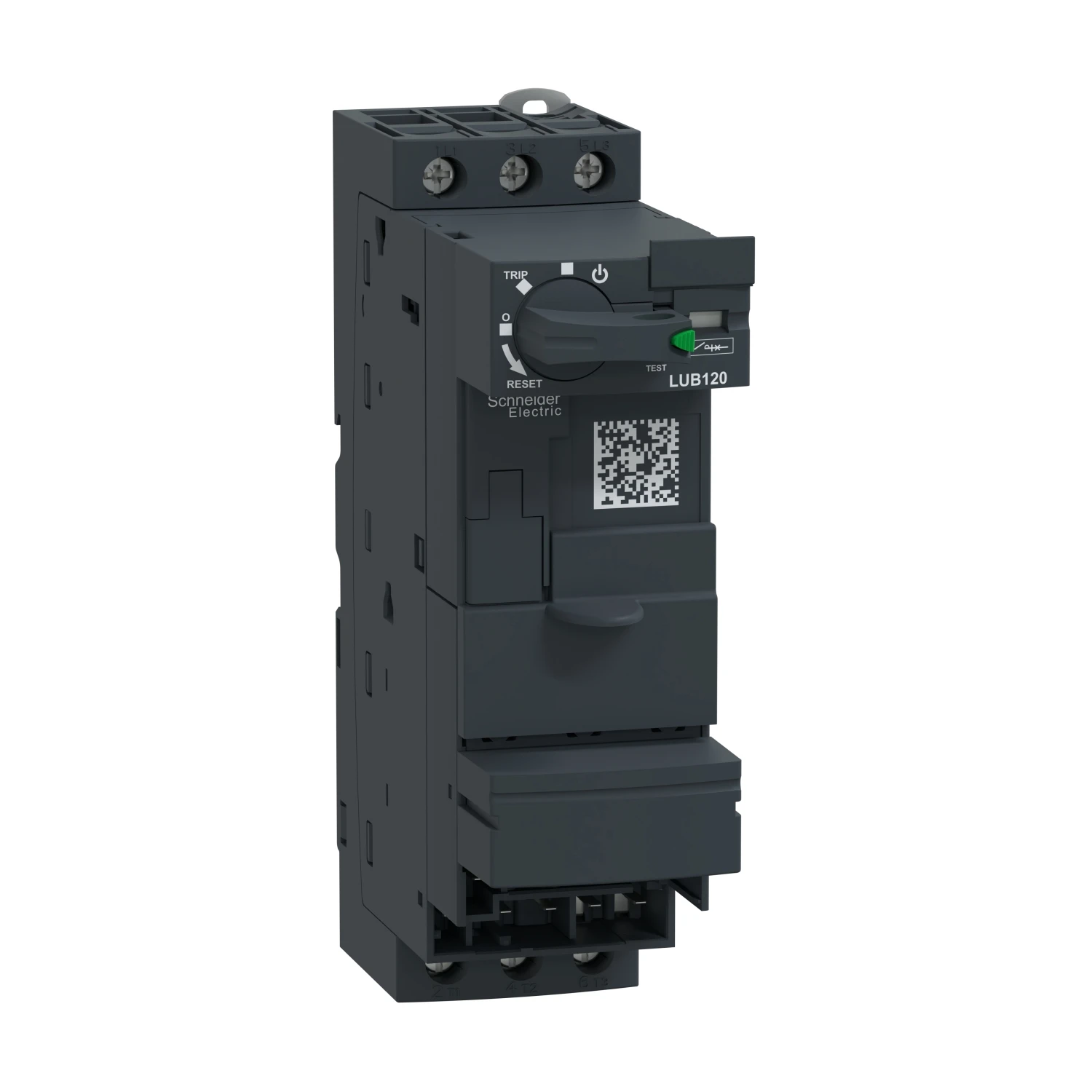

TeSys 3 Pole 12A Power Base 1NO + 1NC No Connections Control
TeSys 3 Pole 12A Power Base 1NO + 1NC No Connections Control
TeSys 3 Pole 12A Power Base 1NO + 1NC No Connections Control - Image 2
TeSys 3 Pole 12A Power Base 1NO + 1NC No Connections Control - Image 3

TeSys 3 Pole 12A Power Base 1NO + 1NC No Connections Control

£94.19 Incl. VAT

TeSys U advanced power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a -all in one- starter controller with basic or advanced protection and control functions. It is equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys U advanced power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. · · Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a “all in one” starter controller with basic or advanced protection and control functions. · · It is equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block, and blanking shutters covering the empty cavities. · · It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. · · Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. · · Shock resistance: 10-15gn (open/closed) · · Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Mechanical durability: 15000000 cycles · · IP20/40 Degree of protection · · Ambient temperature: -25°C to 60°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LUB120 Categories: , , Brand: Part Number: 2500185090

Description

Technical Specifications  Technical Specifications Motor starter/Motor starter combination Height 154 mm Depth 126 mm Width 45 mm Number of command positions 3 Rated operation power at AC-3, 400 V 5.5 kW Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Rated operation power at AC-3, 230 V, 3-phase 3 kW Rated power, 460 V, 60 Hz, 3-phase 5.5 kW Rated power, 575 V, 60 Hz, 3-phase 5.5 kW Rated operation current at AC-3, 400 V 12 A Rated conditional short-circuit current, type 1, 480 Y/277 V 10000 A Overload release current setting – – – A Rated operation current Ie 12 A Number of indicator lights 0 Ambient temperature, upper operating limit 70 °C Rated conditional short-circuit current, type 2, 400 V 50000 A Rated conditional short-circuit current, type 2, 230 V 50000 A Rated conditional short-circuit current, type 1, 600 Y/347 V 4000 A Supporting protocol for INTERBUS No Supporting protocol for CAN No Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at DC 24 – 220 V With transformer No Supporting protocol for ASI No Supporting protocol for MODBUS No External reset possible No With fuse No With short-circuit release Yes Supporting protocol for SafetyBUS p No Supporting protocol for DeviceNet Safety No Supporting protocol for PROFIsafe No Supporting protocol for PROFINET CBA No Rail mounting possible Yes Supporting protocol for AS-Interface Safety at Work No Supporting protocol for Foundation Fieldbus No Supporting protocol for EtherNet/IP No Supporting protocol for PROFINET IO No Temperature compensated overload protection No Suitable for emergency stop No Supporting protocol for other bus systems No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for LON No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188241
