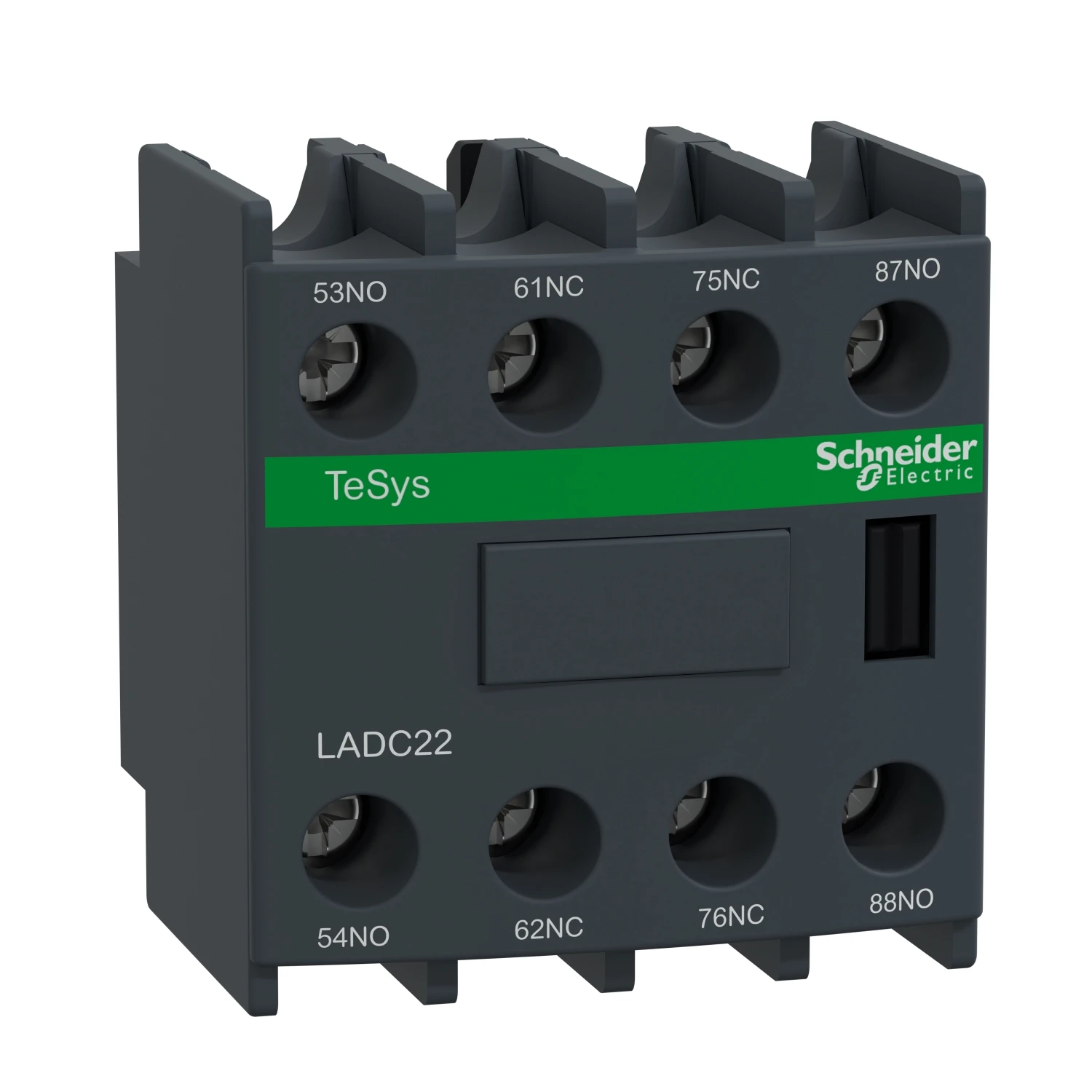

TeSys D 2NO/2NC Auxiliary Contact Block 600V AC 10A White

TeSys D, auxiliary contact block, 2 NO+2 NC, screw-clamps terminals. range of product: TeSys D, TeSys D control relay, TeSys F – range: TeSys – product or component type: auxiliary contact block – pole contact composition: 2 NO + 2 NC – connections – terminals: screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – with cable end, screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – without cable end, screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – with cable end, screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – without cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – with cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – without cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – with cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – without cable end. · · · TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. · · It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, of which 1NO+1NC are with overlap time (make before break), connection by screw clamp terminals. · · Clip-on front mounting, it procures high reliability and durability. · · Weight: 0.05kg · · Multi standards certified (IEC, UL, CSA, EAC), Green Premium compliant (RoHS/REACh). · · CE: yes
