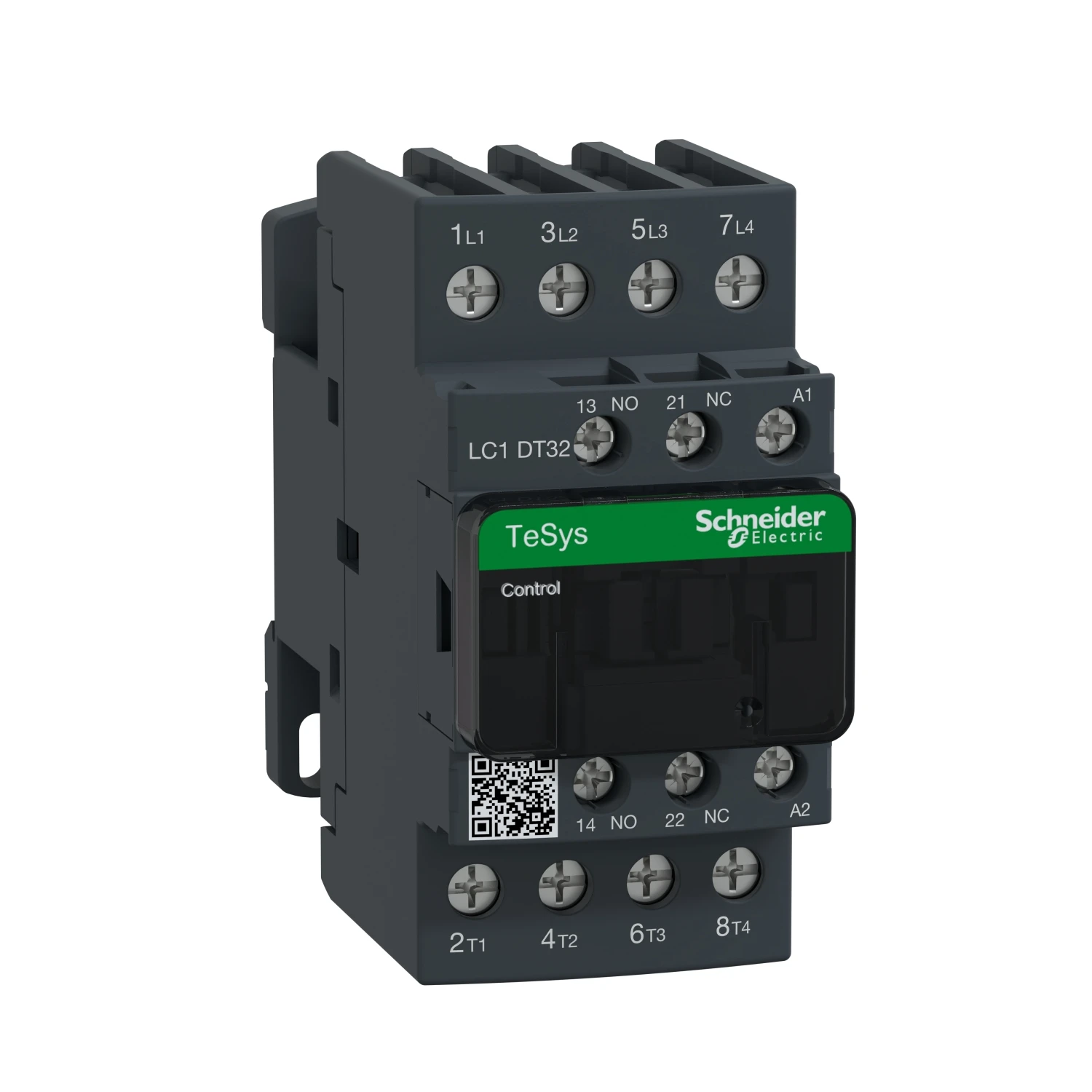

TeSys D 32A Contactor 4NO 110V AC Coil with Protective Cover
TeSys D 32A Contactor 4NO 110V AC Coil with Protective Cover
TeSys D 32A Contactor 4NO 110V AC Coil with Protective Cover - Image 2
TeSys D 32A Contactor 4NO 110V AC Coil with Protective Cover - Image 3

TeSys D 32A Contactor 4NO 110V AC Coil with Protective Cover

£89.74 Incl. VAT

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 32A/440V AC-1. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 32A/690V AC-1. · · Screw clamp terminals: 1 to 4mm² · · It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Mechanical durability: 15 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Tightening torque: 1.7Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1DT32F7 Categories: , , Brand: Part Number: 2500151660

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 4.00 Rated operation power at AC-3, 400 V – kW Number of normally closed contacts as main contact 0.00 Rated operation current Ie at AC-4, 400 V – A Rated operation power NEMA – kW Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-1, 400 V 32.00 A Number of auxiliary contacts as normally open contact 1.00 Number of auxiliary contacts as normally closed contact 1.00 Rated operation current Ie at AC-3, 400 V – A Rated control supply voltage at AC 50 Hz 110.00 – 110.00 V Rated control supply voltage at AC 60 Hz 110.00 – 110.00 V Rated control supply voltage at DC – – – V Modular version No · Technical Data Sheet – Click to Download
