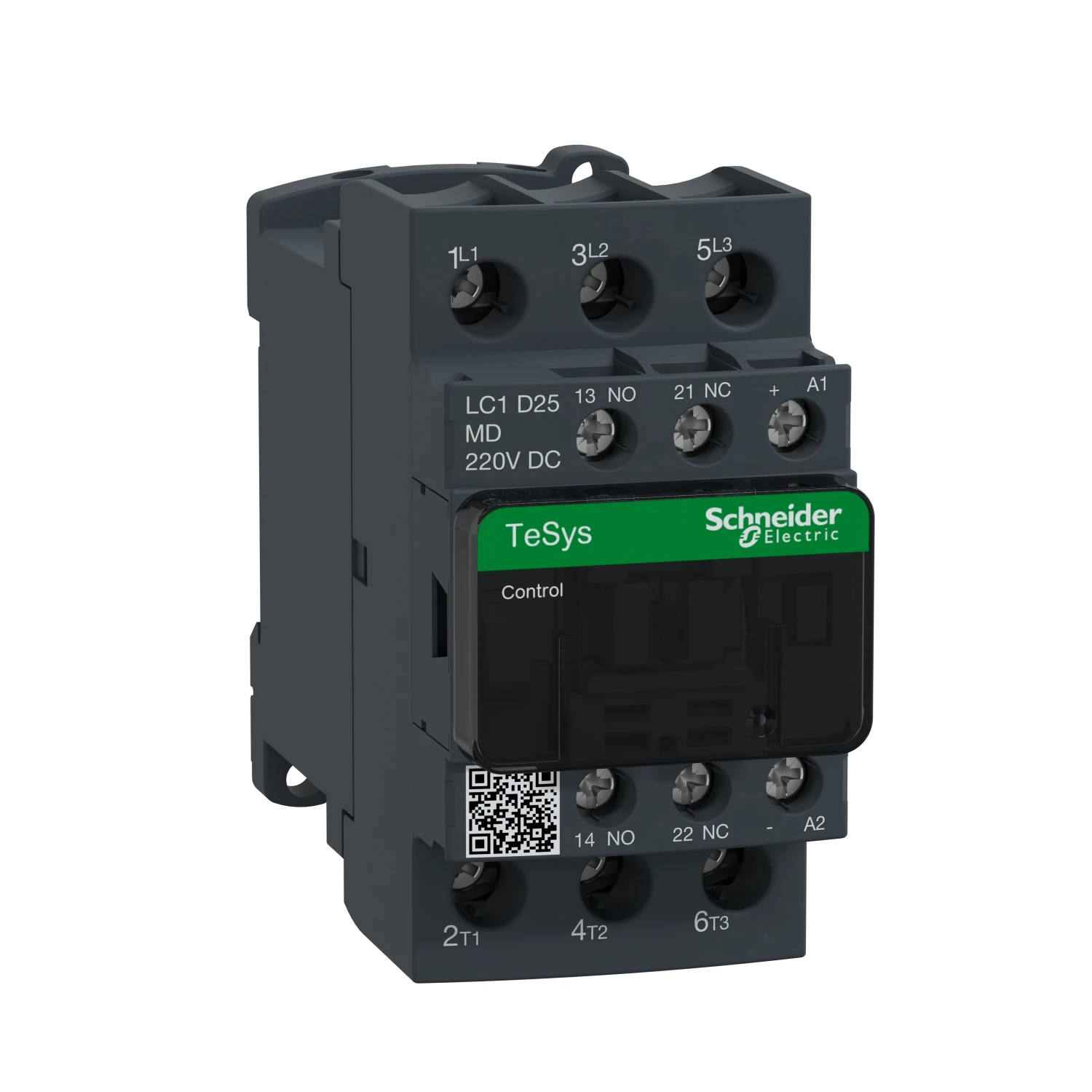

Schneider Electric Tesys D Contactor 3 Pole (3 No) AC-3 <= 440V 25A 220V DC Coil
Schneider Electric Tesys D Contactor 3 Pole (3 No) AC-3 <= 440V 25A 220V DC Coil
Schneider Electric Tesys D Contactor 3 Pole (3 No) AC-3 <= 440V 25A 220V DC Coil - Image 2
Schneider Electric Tesys D Contactor 3 Pole (3 No) AC-3 <= 440V 25A 220V DC Coil - Image 3

Schneider Electric Tesys D Contactor 3 Pole (3 No) AC-3 <= 440V 25A 220V DC Coil

£153.89 Incl. VAT

TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a 220V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). · · Number of Poles: 3P · · It provides a 220V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Depth: 101mm · · Normal State Configuration: 3 No

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D25MD Categories: , , , , , Brand: Product Code: 2500091078

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation current Ie at AC-1, 400 V 40.00 A Rated operation current Ie at AC-4, 400 V 12.00 A Rated operation current Ie at AC-3, 400 V 25.00 A Rated operation power at AC-4, 400 V 5.50 kW Rated operation power at AC-3, 400 V 11.00 kW Number of main contacts as normally open contact 3.00 Number of auxiliary contacts as normally open contact 1.00 Number of normally closed contacts as main contact 0.00 Rated control supply voltage at DC 220.00 – 220.00 V Number of auxiliary contacts as normally closed contact 1.00 Modular version No · Technical Data Sheet – Click to Download
