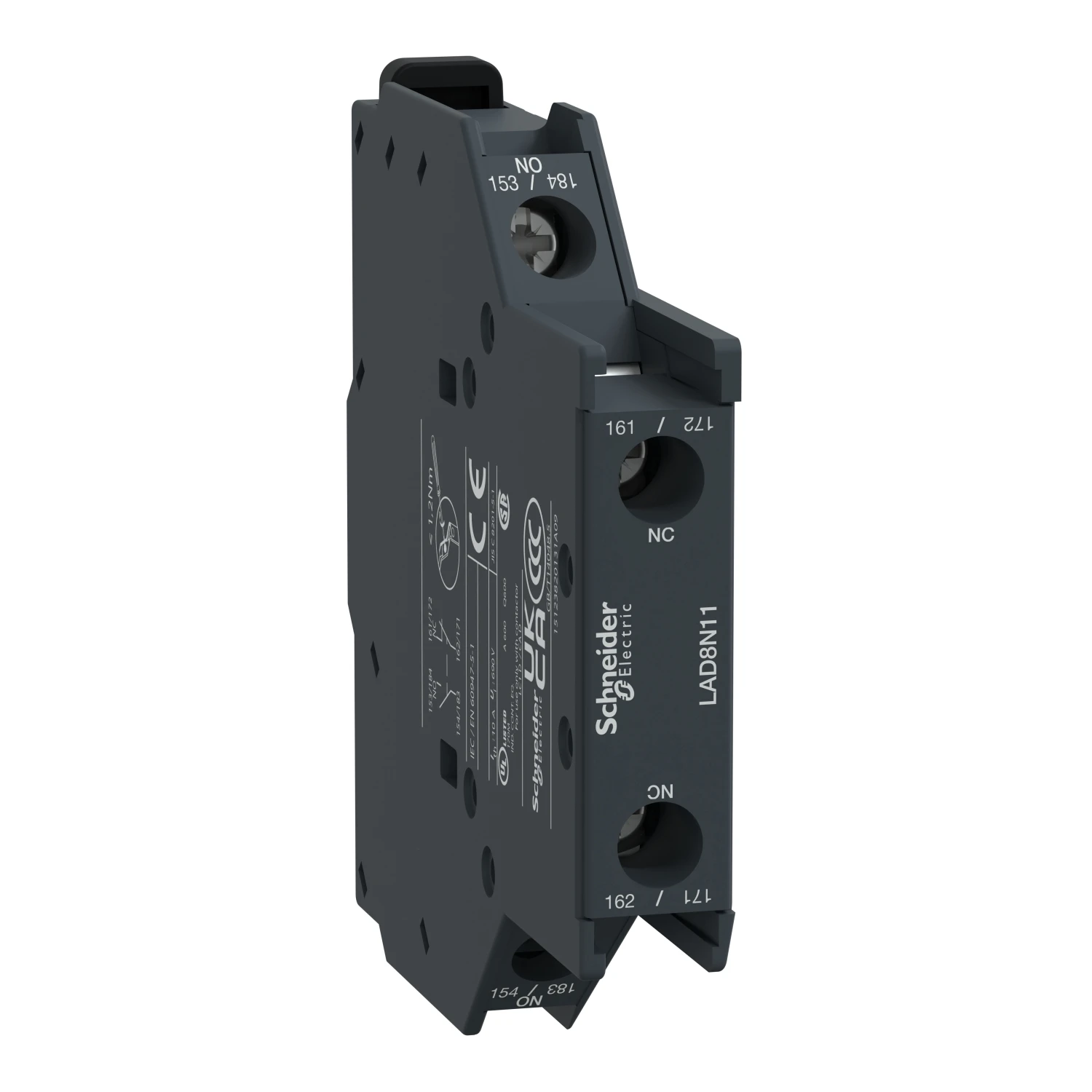

TeSys D Instantaneous Auxiliary Contact Block 1NO + 1NC Side Mounting
TeSys D Instantaneous Auxiliary Contact Block 1NO + 1NC Side Mounting
TeSys D Instantaneous Auxiliary Contact Block 1NO + 1NC Side Mounting - Image 2
TeSys D Instantaneous Auxiliary Contact Block 1NO + 1NC Side Mounting - Image 3

TeSys D Instantaneous Auxiliary Contact Block 1NO + 1NC Side Mounting

£19.12 Incl. VAT

TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys D instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. · · It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. · · Clip-on side mounting, it procures high reliability and durability. · · System voltage: <= 690V AC · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · Mechanical durability: 3 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LAD8N11 Categories: , , Brand: Part Number: 2500088433

Description

Technical Specifications  Technical Specifications Auxiliary contact block Number of fault-signal switches 0 Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 Rated operation current Ie at AC-15, 230 V 10 A Number of contacts as normally closed contact 1 · Technical Data Sheet – Click to Download
