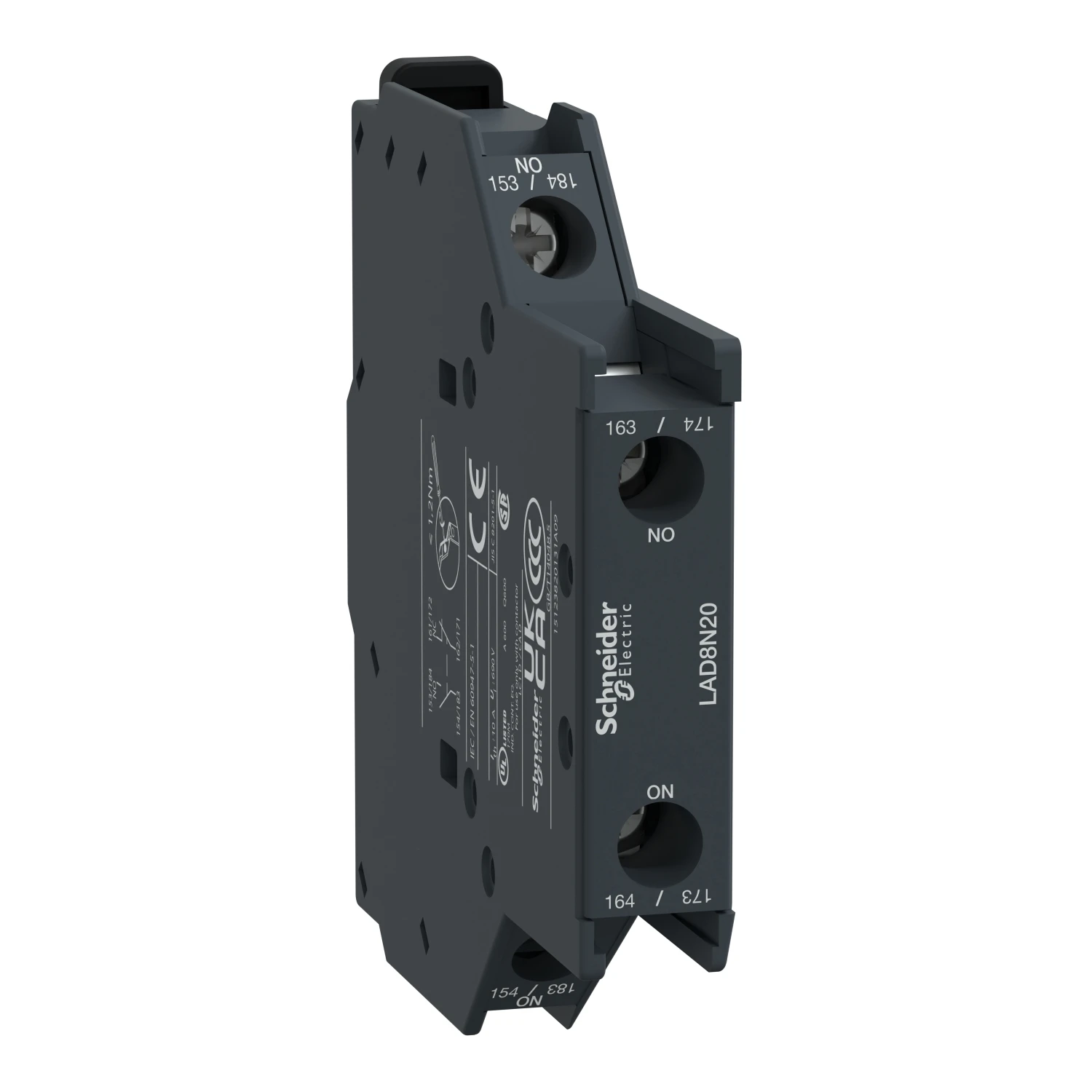

TeSys D Instantaneous Auxiliary Contact Block 2NO Side Mounting
£19.12 Incl. VAT
TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NO contacts rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys D instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. · · It provides 2NO contacts rated up to 10A 690V AC, connection by screw clamp terminals. · · Clip-on side mounting, it procures high reliability and durability. · · System voltage: <= 690V AC · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · Mechanical durability: 3 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Auxiliary contact block Rated operation current Ie at AC-15, 230 V 10.00 A Number of fault-signal switches 0.00 Number of contacts as change-over contact 0.00 Number of contacts as normally open contact 2.00 Number of contacts as normally closed contact 0.00 · Technical Data Sheet – Click to Download
