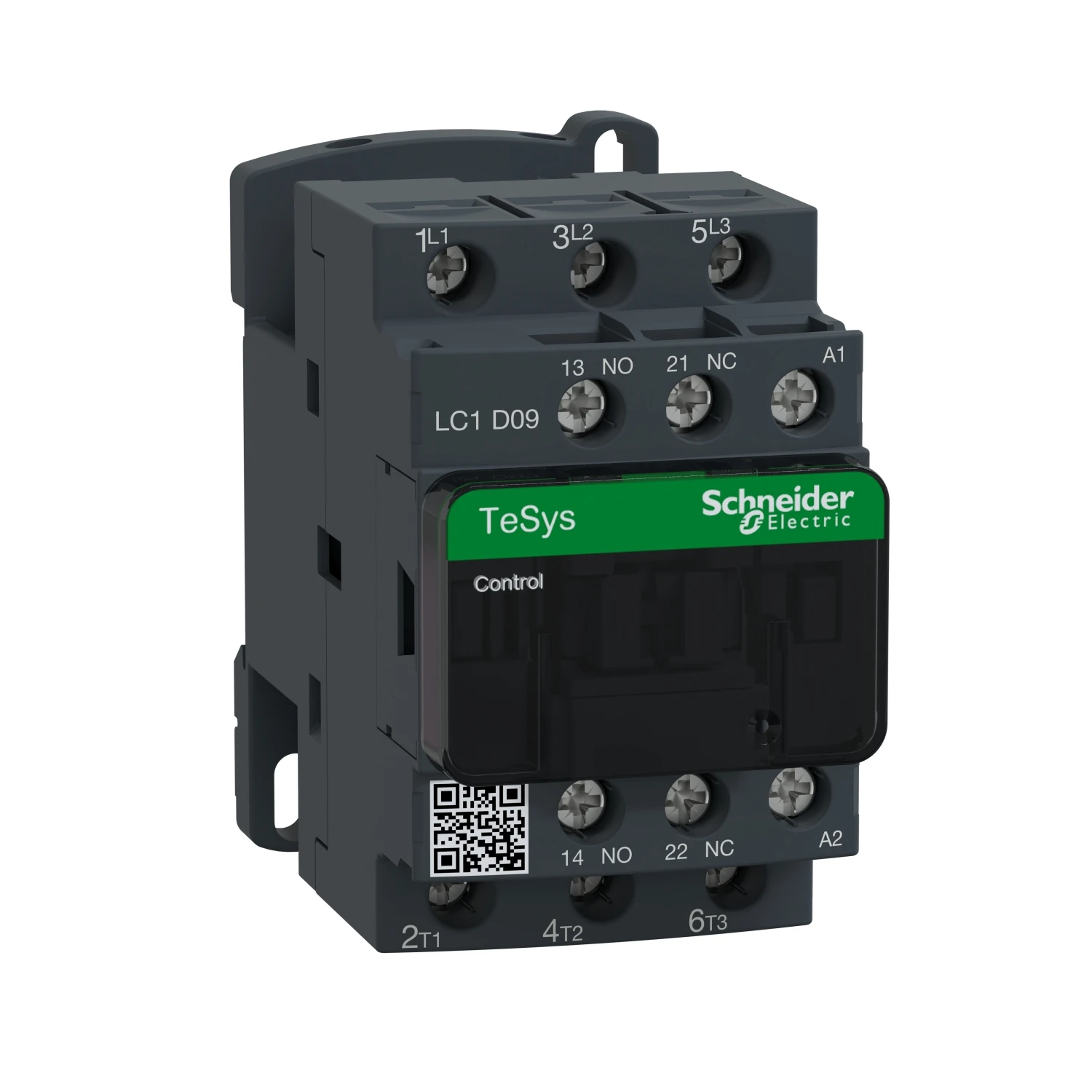

TeSys D-Line TP 9A Non-Reversing Contactor 48V AC Black/White
TeSys D-Line TP 9A Non-Reversing Contactor 48V AC Black/White
TeSys D-Line TP 9A Non-Reversing Contactor 48V AC Black/White - Image 2
TeSys D-Line TP 9A Non-Reversing Contactor 48V AC Black/White - Image 3

TeSys D-Line TP 9A Non-Reversing Contactor 48V AC Black/White

£50.52 Incl. VAT

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). · · Height: 77mm, Width: 45mm, Depth: 86mm · · It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Voltage Rating: 48V · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Frequency: 50 – 60Hz · · IP Rating: IP2X · · CE: yes

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D09E7 Categories: , , Brand: Part Number: 2500089522

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power at AC-3, 400 V 4 kW Number of normally closed contacts as main contact 0 Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Rated operation power NEMA – kW Rated operation current Ie at AC-3, 400 V 9 A Rated operation current Ie at AC-1, 400 V 25 A Rated operation current Ie at AC-4, 400 V 6 A Rated operation power at AC-4, 400 V 2.2 kW Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 48 – 48 V Rated control supply voltage at AC 60 Hz 48 – 48 V Modular version No · Technical Data Sheet – Click to Download
