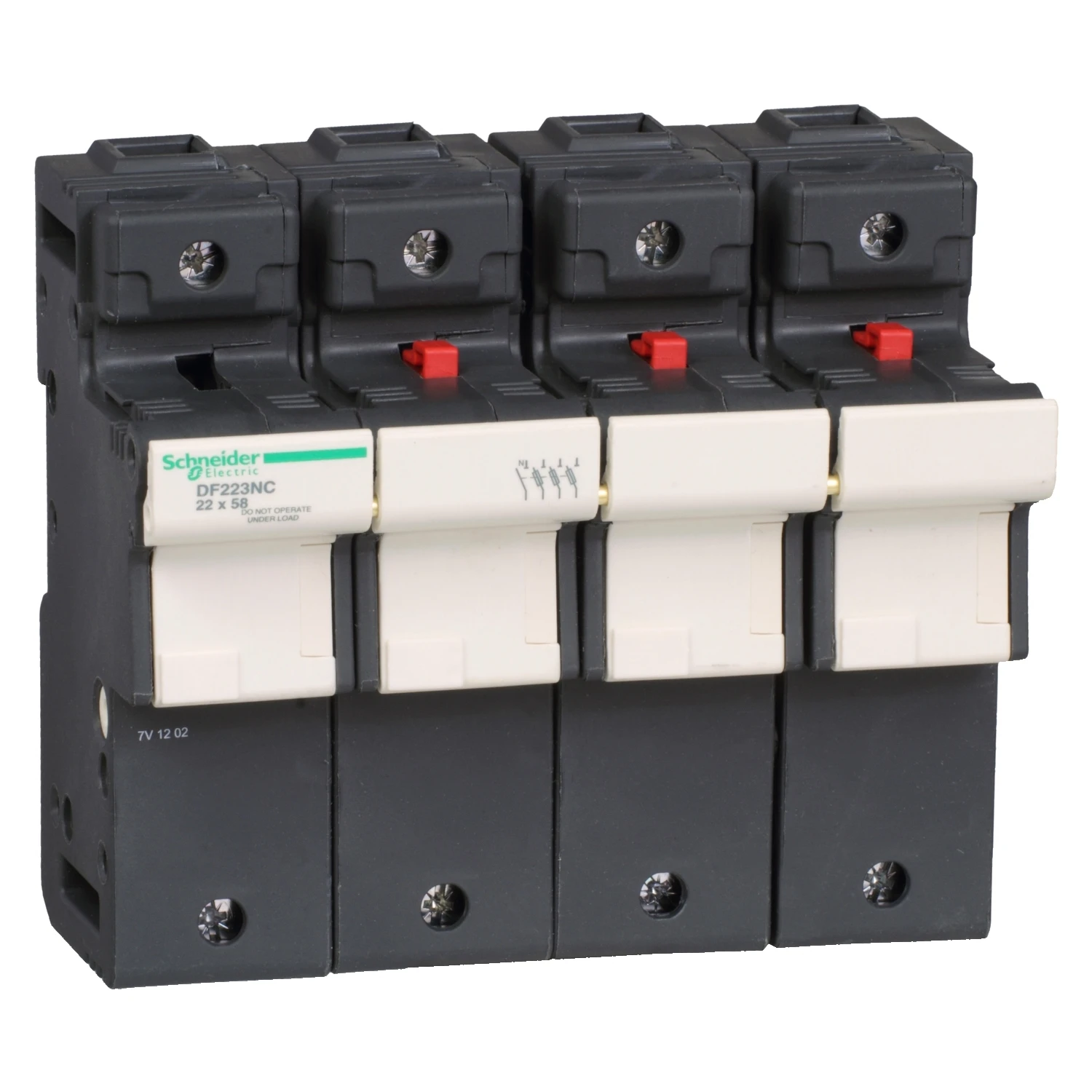

TeSys DF 3-Pole + N 125A Fuse Carrier for use with DF3FA, DF3FN & DF22AM
£81.68 Incl. VAT
TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides a Neutral pole fitted with a locked tubular link. Compact (140mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 1 unit. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh). · · · TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 125A/690V. · · To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. · · To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides a Neutral pole fitted with a locked tubular link. · · Compact (140mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. · · Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). · · Fuse Standard: Csa C22.2 No 39 / Iec 60947-3 / Ul 512
Out of stock
Description
Technical Specifications Technical Specifications Base/holder for cylindrical fuse Width in number of modular spacings 8.00 Recess depth 70.00 mm Number of poles 4.00 Nominal voltage 690.00 V Concurrently switching N-neutral Yes Lockable No Optical defect indication No
