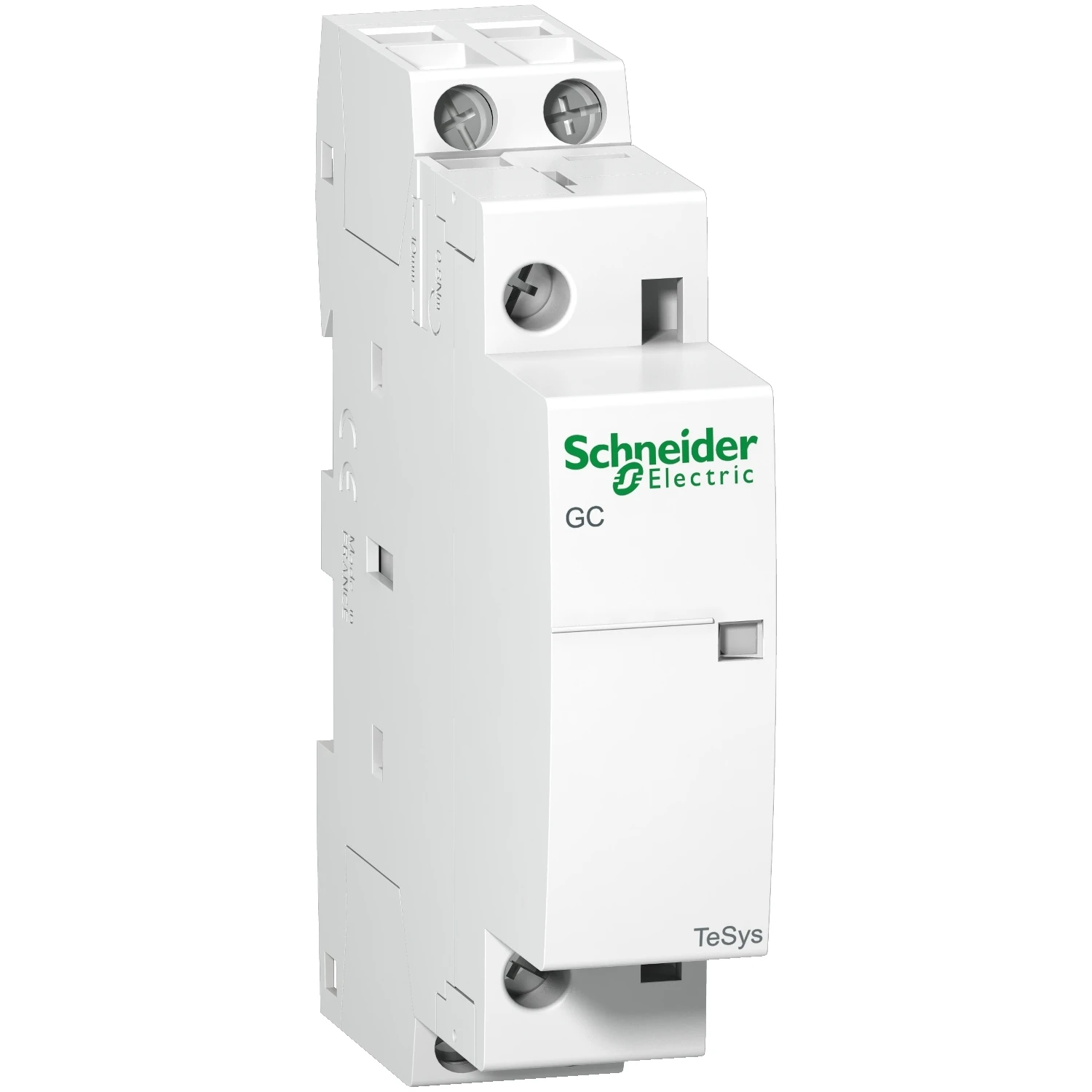

Tesys GC Modular Contactor 25A 2 NO Coil 220-240V AC
£58.44 Incl. VAT
TeSys GC modular contactor, 2 poles (2NO), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 2 poles (2NO), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 12 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · Depth: 60mm · · Normal State Configuration: 2 No
Out of stock
Description
Technical Specifications Technical Specifications Contactor for distribution board installation Max. load fluorescent lamp (parallel compensated) 800 VA Max. incandescent lamp load 2800 W Recess depth 62.5 mm Number of contacts as normally open contact 2 Number of contacts as normally closed contact 0 Max. load fluorescent lamp (Duo circuit) 1200 VA Rated operation current 25 A Max. load fluorescent lamp 1000 VA Number of modular spacings 2 Utility category 7 Rated operating voltage 0 – 250 V Rated excitation voltage 220 – 240 V Additional equipment possible Yes Slider for hand switch No · Technical Data Sheet – Click to Download
