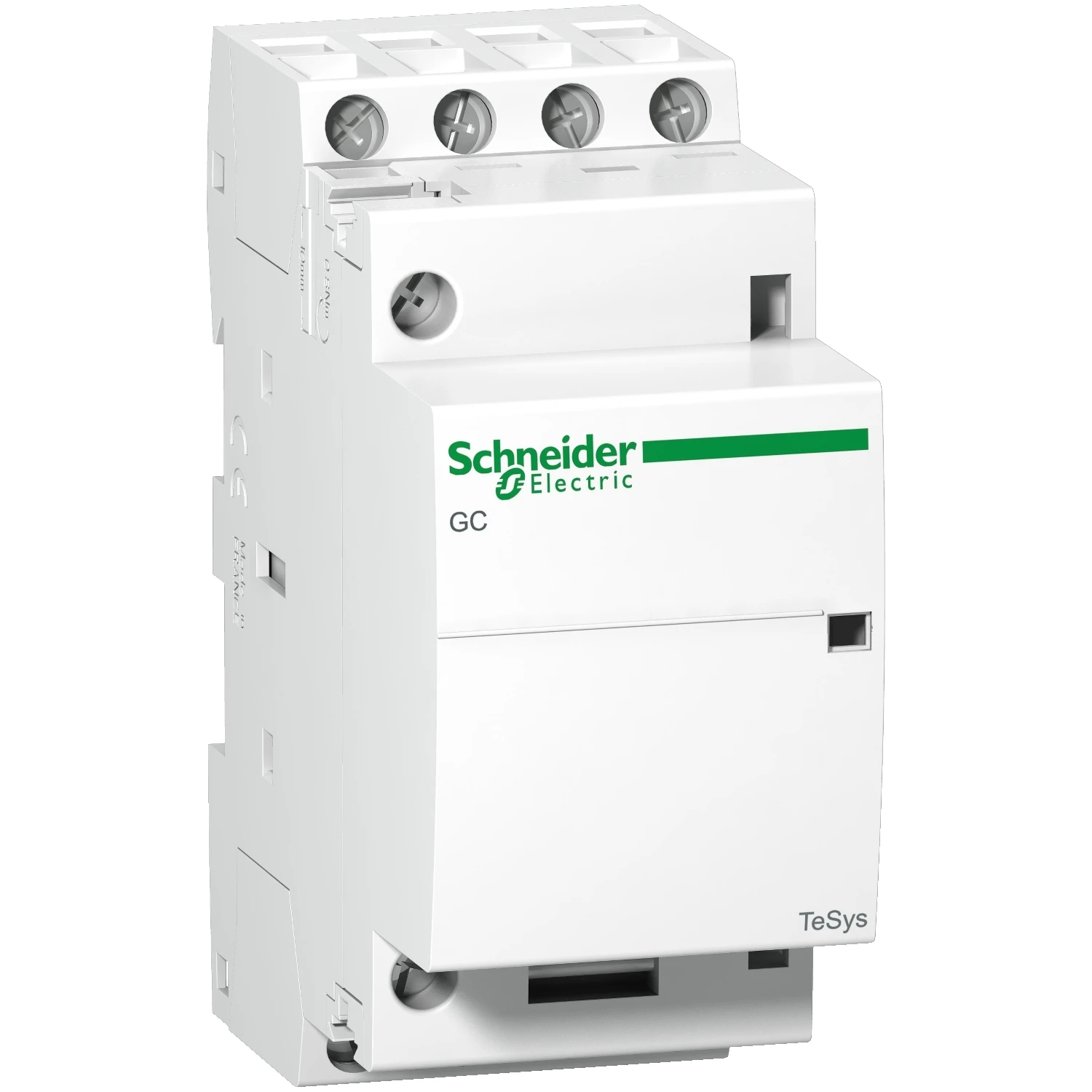

TeSys GC Modular Contactor 4NO 25A 220/240VAC White
£67.20 Incl. VAT
TeSys GC modular contactor, 4 poles (4NO), 25A/415V AC-7a (heating) and 8.5A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 4 poles (4NO), 25A/415V AC-7a (heating) and 8.5A/415V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 6 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · Weight: 0.23kg · · Depth: 65mm · · Frequency: 50Hz · · IP Rating: IP20 (Open), IP40 (Enclosure) · · CE: yes
Out of stock
Description
Technical Specifications Technical Specifications Contactor for distribution board installation Number of contacts as normally open contact 4 Number of contacts as normally closed contact 0 Rated operation current 25 A Max. load fluorescent lamp (Duo circuit) 1200 VA Max. load fluorescent lamp 1000 VA Max. load fluorescent lamp (parallel compensated) 800 VA Utility category 7 Max. incandescent lamp load 2800 W Number of modular spacings 4 Recess depth 62.5 mm Rated operating voltage 0 – 415 V Rated excitation voltage 220 – 240 V Additional equipment possible Yes Slider for hand switch No · Technical Data Sheet – Click to Download
