Industrial Controls

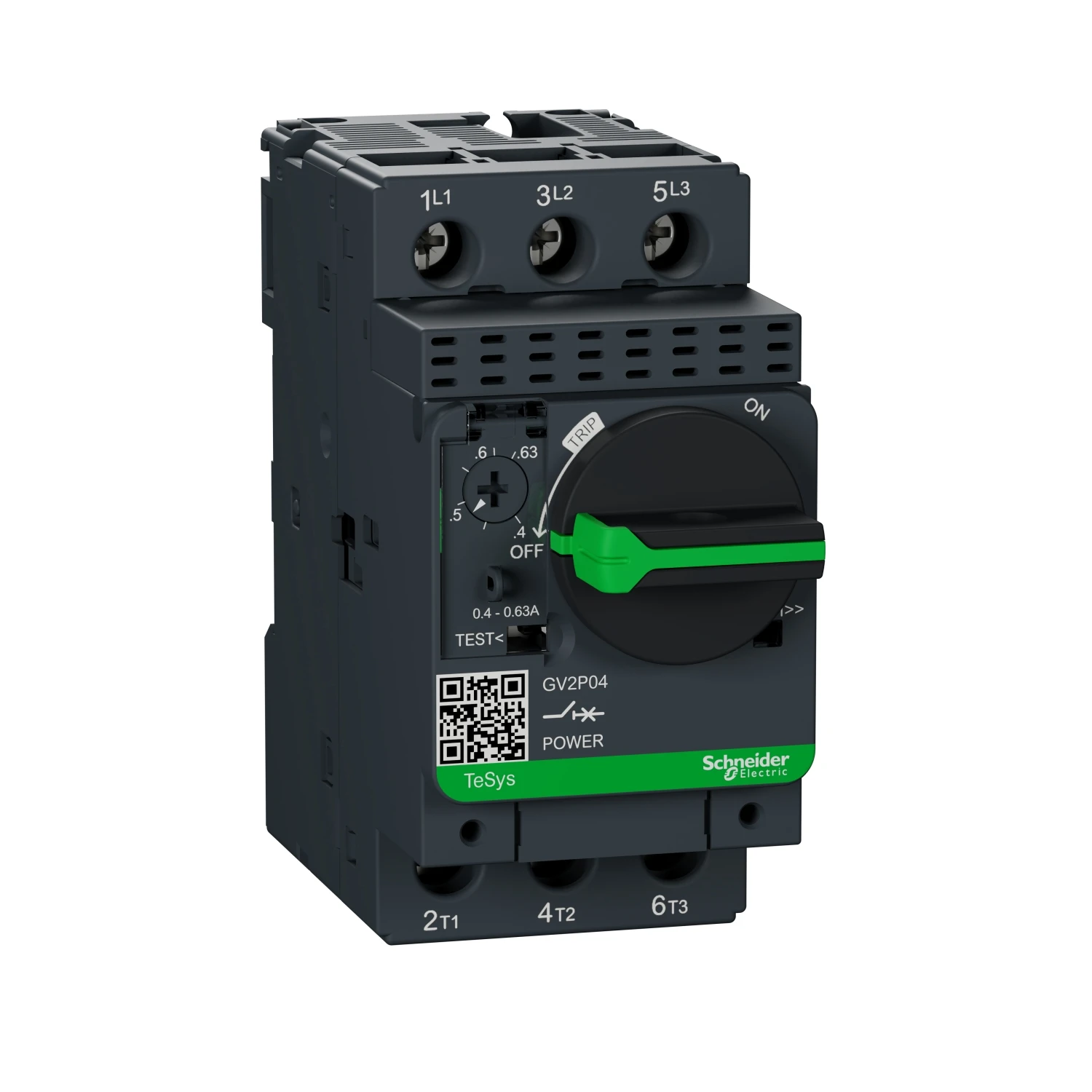

Schneider Electric Tesys GV2-Circuit Breaker-Thermal-Magnetic 0.40-0.63A Screw Clamp Terminals

Brand: Schneider ElectricProduct code: GV2P04Go Magpie Ref: 5060062387489

TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.4-0.63A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 0.4-0.63A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. · · Depth: 97mm · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

£109.46inc VAT£91.22 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Number of poles 3 Rated operation power at AC-3, 400 V 0.18 kW Rated permanent current Iu 0.63 A Rated operation power at AC-3, 230 V 0.09 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Height 89 mm Adjustment range undelayed short-circuit release 8 – 8 A Overload release current setting 0.4 – 0.63 A Width 45 mm Rated operating voltage 0 – 690 V With integrated under voltage release No With thermal overload protection Yes Depth 97 mm Phase failure sensitive Yes With integrated auxiliary switch No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188194
