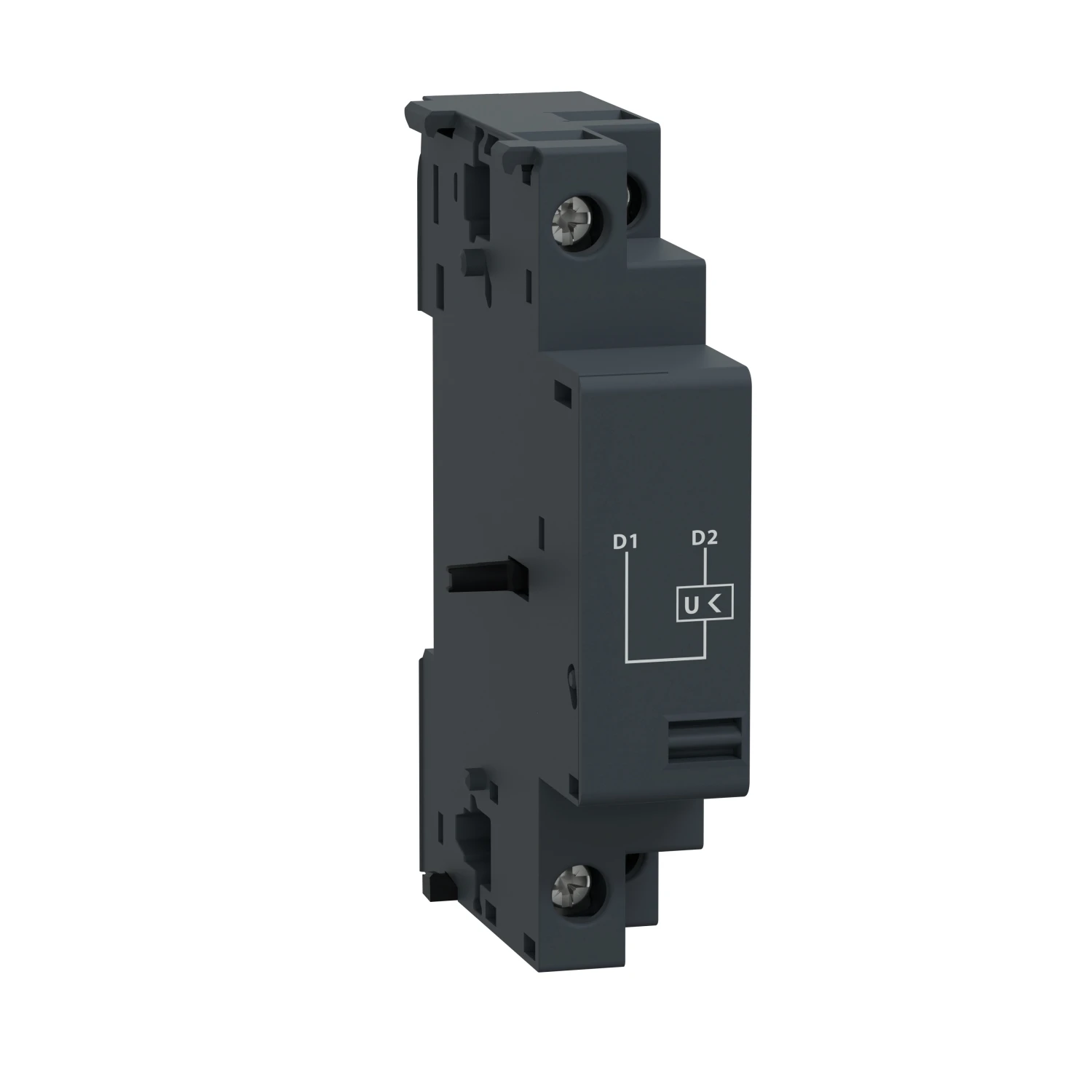

Tesys GV2 & GV3 Undervoltage Trip 220-240V AC 60 Hz
£37.56 Incl. VAT
TeSys GV electrical trip, MN undervoltage release, 220-240V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys GV electrical trip, MN undervoltage release, 220-240V AC 60Hz, for motor circuit breakers GV2, GV3. · · It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. · · Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. · · To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
8 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Under voltage coil Number of contacts as normally open contact 0.00 Number of contacts as normally closed contact 0.00 Number of contacts as change-over contact 0.00 Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at DC – – – V Rated control supply voltage at AC 60 Hz 220.00 – 240.00 V Delayed No Suitable for off-load switch No Suitable for power circuit breaker Yes Suitable for overload relay No Suitable for motor safety switch No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188186
