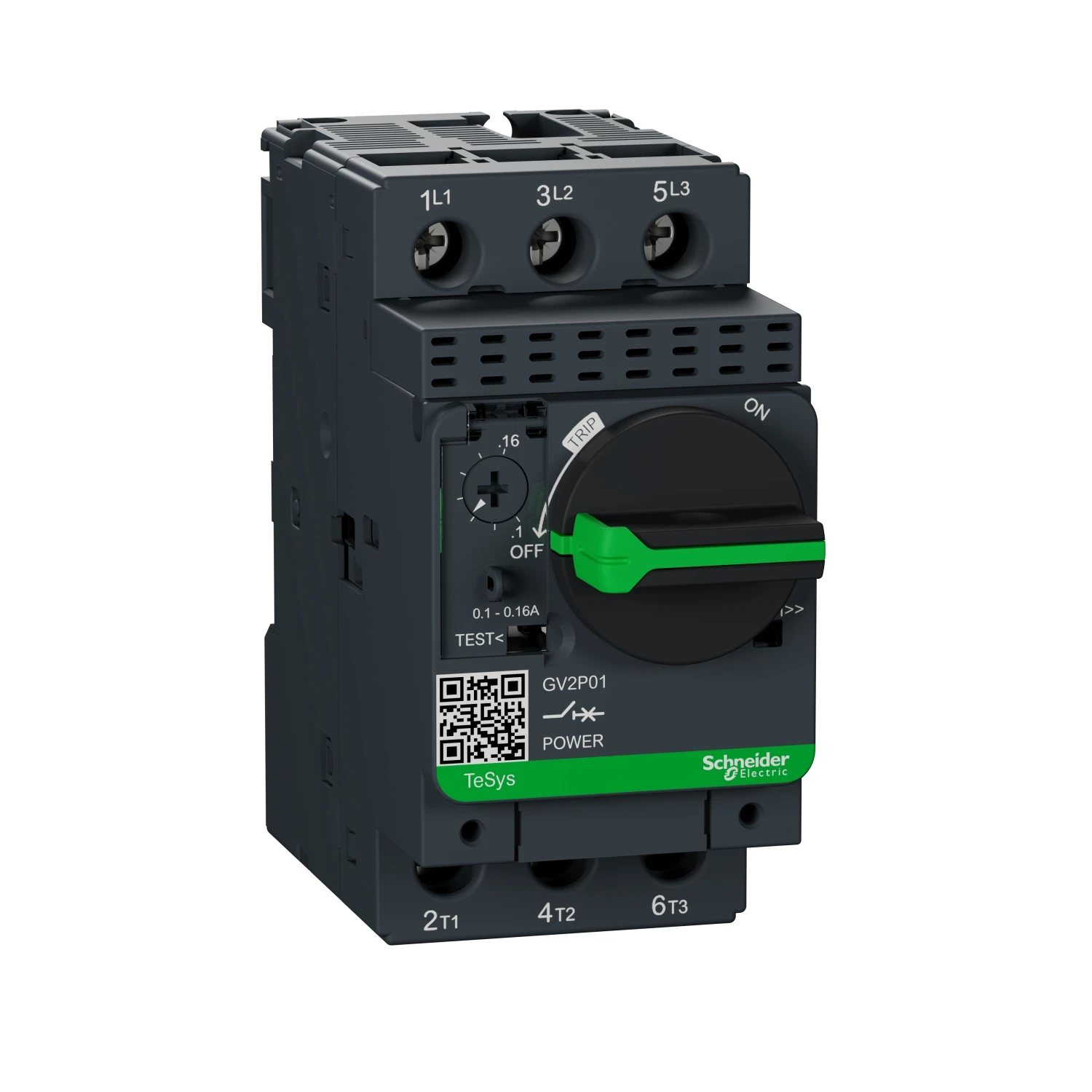

TeSys GV2 Motor Circuit Breaker Thermal Magnetic, 0,1…0,16A

TeSys GV motor circuit breaker, 3 poles (3P), 0.16A/690V, for 3-phase motor applications less than 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · Covers Motor protection up to 15kW @ 415V, 100,000 Operation cycles, breaking capacity up to 100kA @ 415V up to 13A and 50kA @ 415V up to 32A, Manuafactured to IEC/EN 60947 – 1, IEC/EN 60947 – 2, IEC/EN 60947 – 4 – 1, Certified to CSA, CCC, EAC · · It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3.
