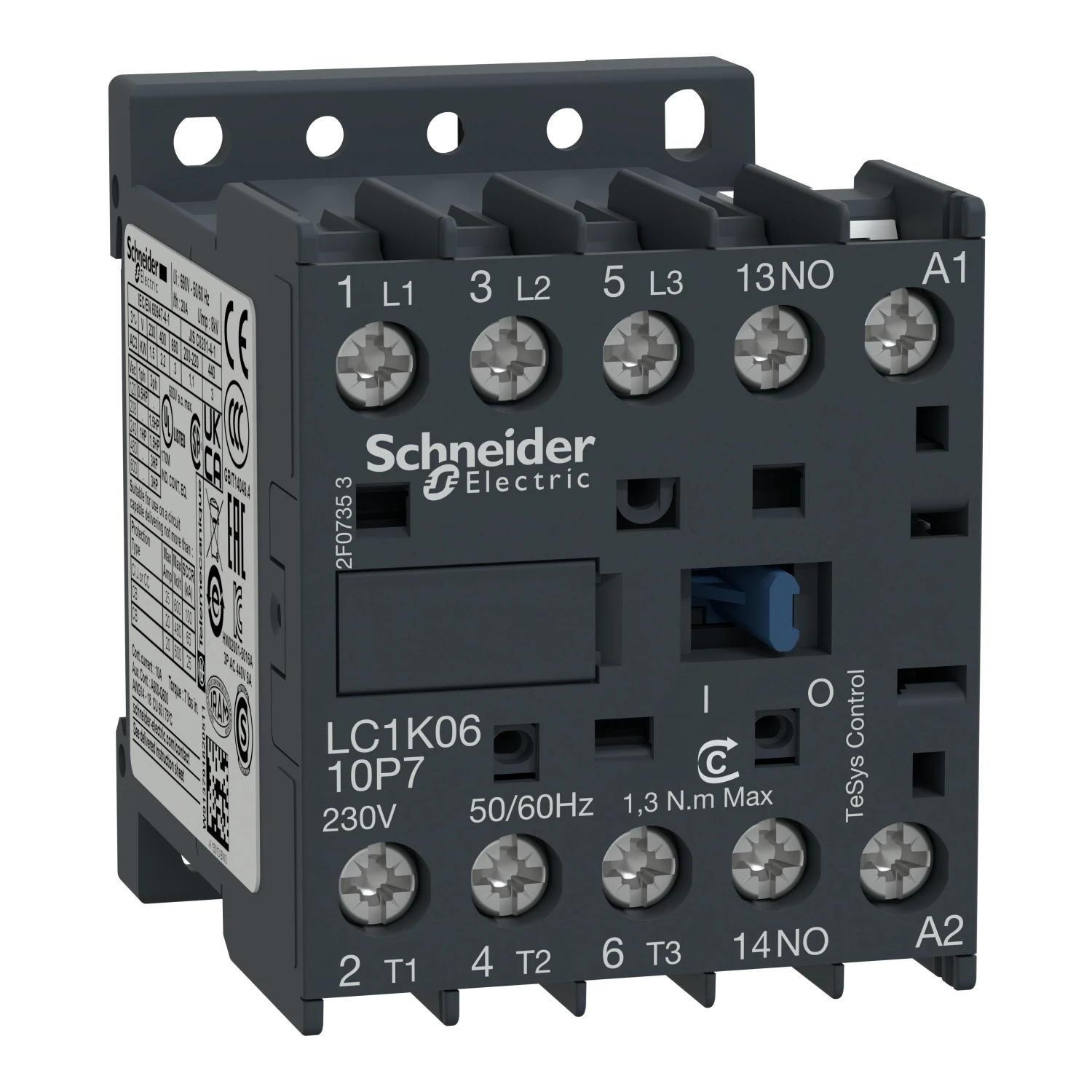

TeSys K 3-Pole 3NO Coil Contactor 6A 440V 230-240VAC
TeSys K 3-Pole 3NO Coil Contactor 6A 440V 230-240VAC
TeSys K 3-Pole 3NO Coil Contactor 6A 440V 230-240VAC - Image 2
TeSys K 3-Pole 3NO Coil Contactor 6A 440V 230-240VAC - Image 3
TeSys K 3-Pole 3NO Coil Contactor 6A 440V 230-240VAC - Image 4

TeSys K 3-Pole 3NO Coil Contactor 6A 440V 230-240VAC

£36.55 Incl. VAT

TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 230-240V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). · · Motor control contactor application · · It provides a 230-240V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. · · For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. · · Very compact (45mm width), DIN-rail mounting or screw fixing. · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1K0610U7 Categories: , , Brand: Part Number: 2500040361

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power at AC-3, 400 V 2.2 kW Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally closed contact 0 Rated operation power NEMA – kW Rated operation current Ie at AC-1, 400 V 20 A Rated operation current Ie at AC-4, 400 V 4 A Rated operation power at AC-4, 400 V 1.5 kW Rated operation current Ie at AC-3, 400 V 6 A Number of auxiliary contacts as normally open contact 1 Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 230 – 240 V Rated control supply voltage at AC 60 Hz 230 – 240 V Modular version No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2187998
