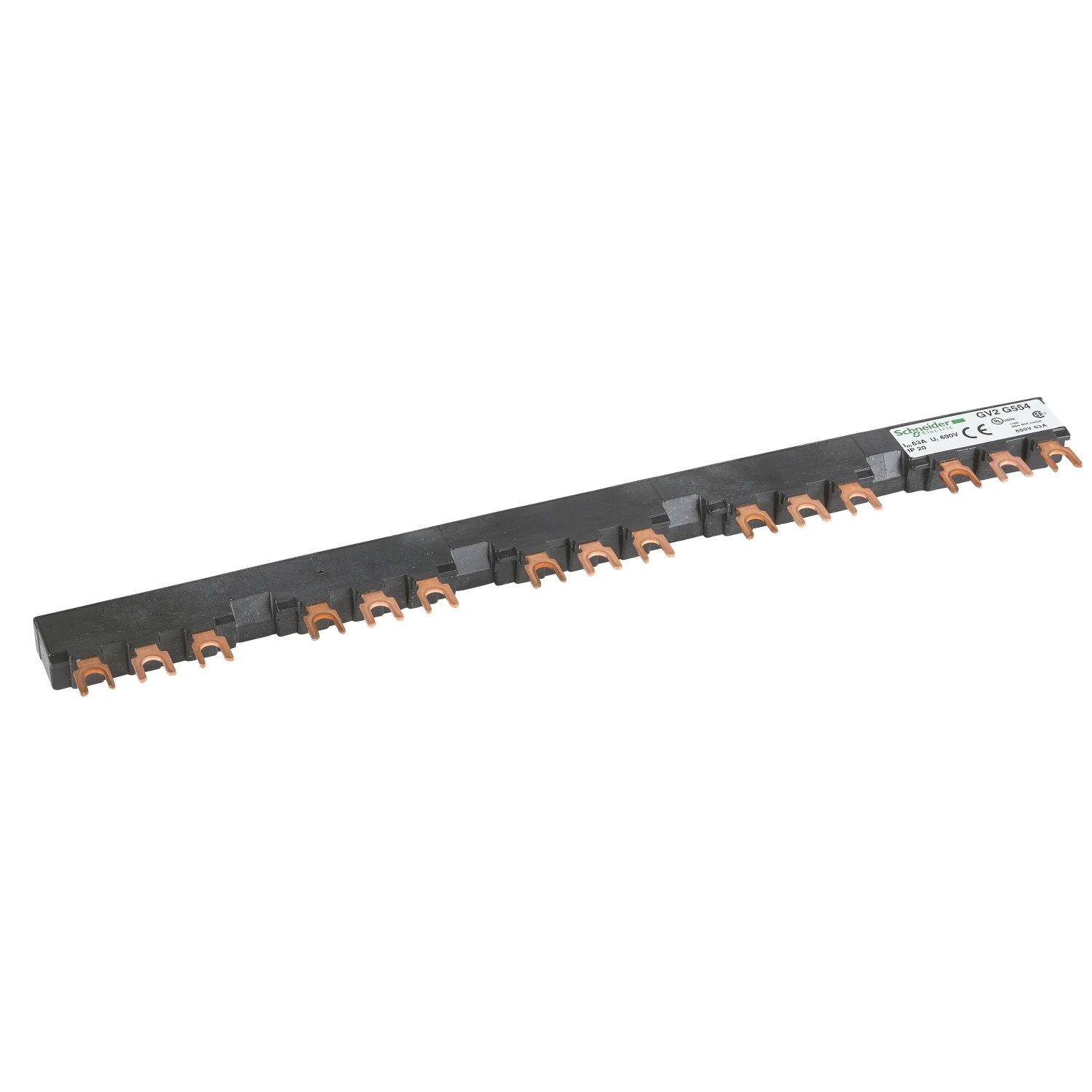

TeSys Linergy 5 Tap-offs Comb Busbar 63A 54mm Pitch
£30.62 Incl. VAT
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 5 tap-off outlets for the paralleling of 5 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh). · · · TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. · · For use with screw clamp terminal devices, it is composed of 5 tap-off outlets for the paralleling of 5 devices with a pitch of 54mm. · · The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). · · Green Premium compliant (RoHS/REACh). · · Compatibility code: GV2G
Out of stock
Description
Technical Specifications Technical Specifications Phase busbar Number of phases 3 Cross section – mm² Number of poles 3 Rated permanent current Iu 63 A Rated surge voltage – kV Number of modular spacings 30 Suitable for number of devices 5 Conditioned rated short-circuit current Iq 11 kA Rated short-time withstand current lcw – kA Max. rated operation voltage Ue 690 V Module width 54 mm Length 270 mm Suitable for devices with N-busbar No Suitable for devices with auxiliary switch No Insulated Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224938
