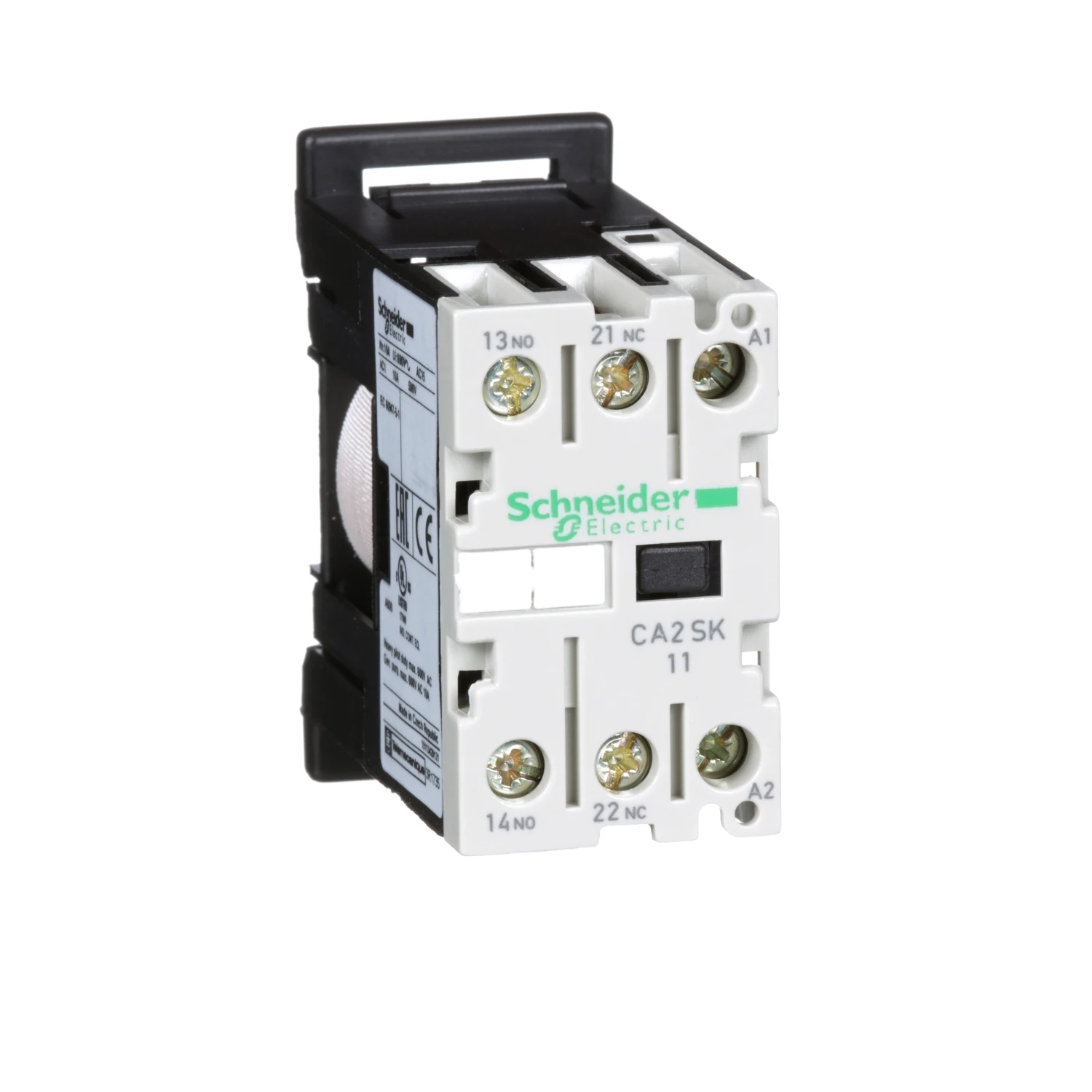

Tesys Sk Control Relay 1 NO + 1 NC <= 690V 110V AC Coil
£41.12 Incl. VAT
TeSys SK mini-control relay, 2 contacts (1NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). · · · TeSys SK mini-control relay, 2 contacts (1NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Width: 27mm · · It provides a 110V 50/60Hz AC control circuit, connection by screw terminals. · · For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. · · Compact (27mm width), for clipping on a 35mm DIN rail. · · Unsuitable for ModuPlug® · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Out of stock
Description
Technical Specifications Technical Specifications Contactor relay Number of auxiliary contacts as change-over contact 0 Rated operation current Ie, 400 V 10 A Number of auxiliary contacts as normally closed contact, delayed switching 0 Number of auxiliary contacts as normally open contact, leading 0 Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at AC 50 Hz 110 – 110 V Rated control supply voltage at AC 60 Hz 110 – 110 V Rated control supply voltage at DC – – – V Manual operation possible No With LED indication No Interface No · Technical Data Sheet – Click to Download
